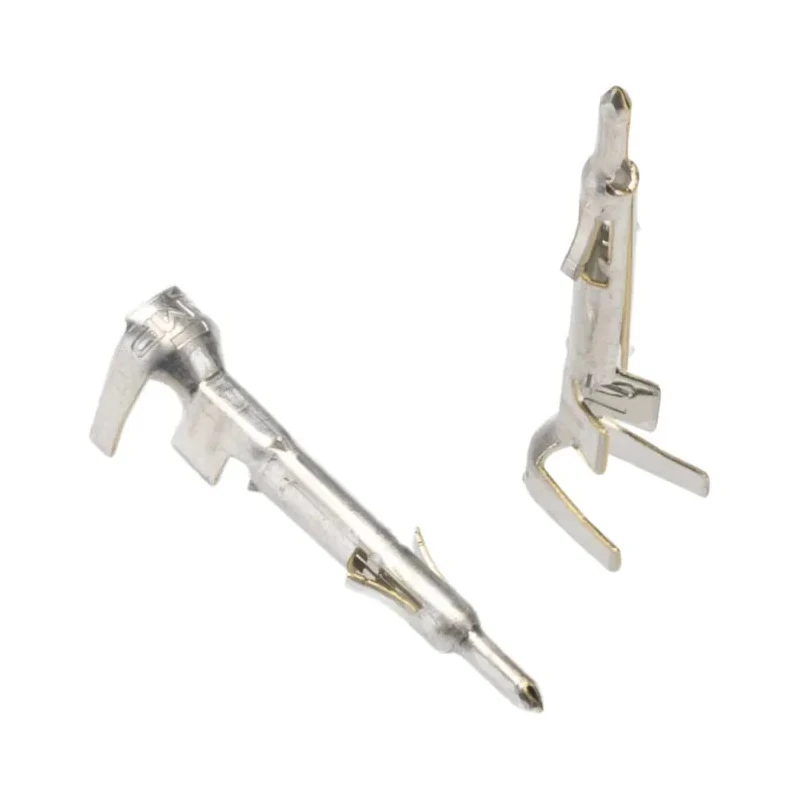

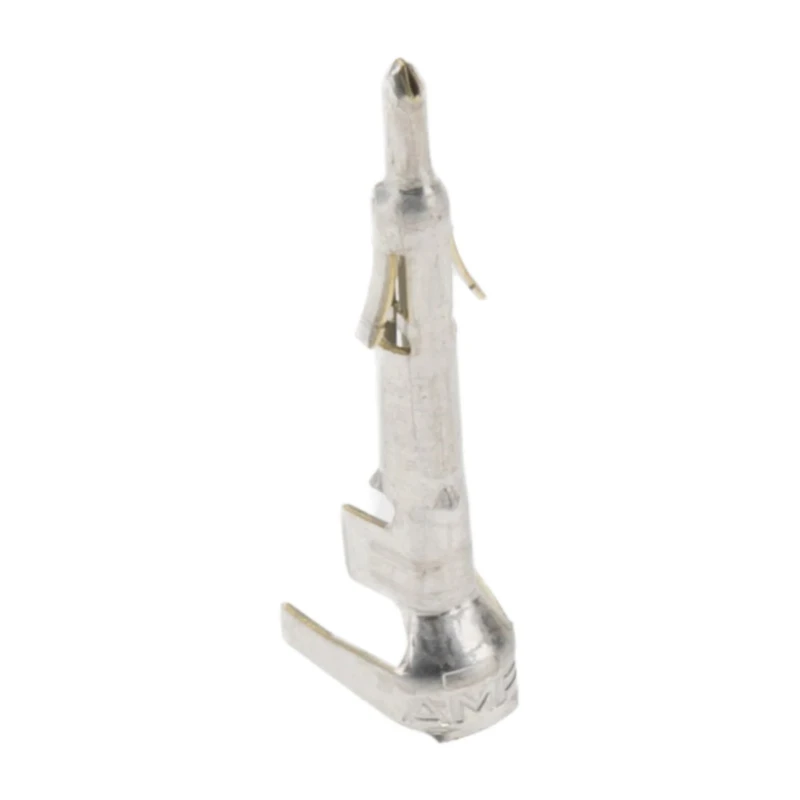

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current 20-16 AWG Wire Size 171638-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 171638-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass material for durability and conductivity.
- Features tin plating on contact surfaces to prevent corrosion.
- Designed for use with Mini-Universal MATE-N-LOK connector housings.
- Crimp termination type ensures a secure wire connection.
- Operates safely within temperature range of -20°C to 105°C.
- Maximum contact resistance of 10 milliohms guarantees efficient electrical flow.
- Manufactured in Japan to stringent quality standards.
- Compatible with various industrial and electrical applications requiring precise wire connections.
Product Description
TE Connectivity 171638-1 Mini-Universal MATE-N-LOK Series male crimp terminal is engineered for reliable electrical and mechanical performance in electronic component assemblies. Rated for 7 amperes of current, this terminal accommodates wire sizes from 20 AWG (0.5mm²) minimum to 16 AWG (1.3mm²) maximum, meeting diverse wiring requirements in power and signal applications.
Constructed with a brass contact base material and finished with a tin plating, the terminal offers excellent corrosion resistance and durable conductivity. The crimp termination type ensures a secure and stable wire connection, facilitating efficient assembly processes with Mini-Universal MATE-N-LOK connector housings.
Designed to operate within a temperature range of -20°C to 105°C, this terminal supports applications that may encounter fluctuating thermal conditions. The maximum contact resistance is limited to 10 milliohms, thereby ensuring minimal signal loss and consistent electrical performance.
Manufactured in Japan, the terminal adheres to high-quality standards suitable for industrial, laboratory, manufacturing, and electronic equipment uses. Its precise fit and robust construction make it ideal for inclusion in PCB connectors, wire housings, and power electronics where durability and reliability are critical.
Brass contact material with tin plating for corrosion resistance. Supports electrical current up to 7 amperes. Compatible with Mini-Universal MATE-N-LOK connector housings. Crimp termination for secure and reliable wire attachment.
Operates from -20°C to 105°C for versatile environmental tolerance. Maximum contact resistance of 10 milliohms for optimal conductivity. Manufactured to stringent quality standards in Japan. Widely applicable in PCB and power connector wiring assemblies.
This TE Connectivity Mini-Universal MATE-N-LOK contact terminal is an essential component for engineers and technicians involved in electronic connector design and maintenance workflows. Its compact yet robust profile enables efficient assembly line integration and lasting operational reliability.
Explore more specialized electrical Connectors and components within the Electronics Components category at EnvMart for comprehensive solutions tailored to your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 7 amperes.
It accommodates wire sizes from 20 AWG (0.5mm²) to 16 AWG (1.3mm²).
The maximum contact resistance is limited to 10 milliohms, ensuring efficient electrical flow.
The contact base is made from brass and features tin plating for corrosion resistance.
It operates safely within a temperature range of -20°C to 105°C.
This terminal is designed for use with Mini-Universal MATE-N-LOK connector housings.
It uses a crimp termination type to ensure a secure wire connection.
It is manufactured in Japan to stringent quality standards.
This terminal is suitable for various industrial and electrical applications requiring precise wire connections.
This model is a male crimp terminal.
The tin plating on the contact surfaces helps to prevent corrosion, enhancing durability.
Its crimp termination type allows for efficient assembly processes with compatible connector housings.
