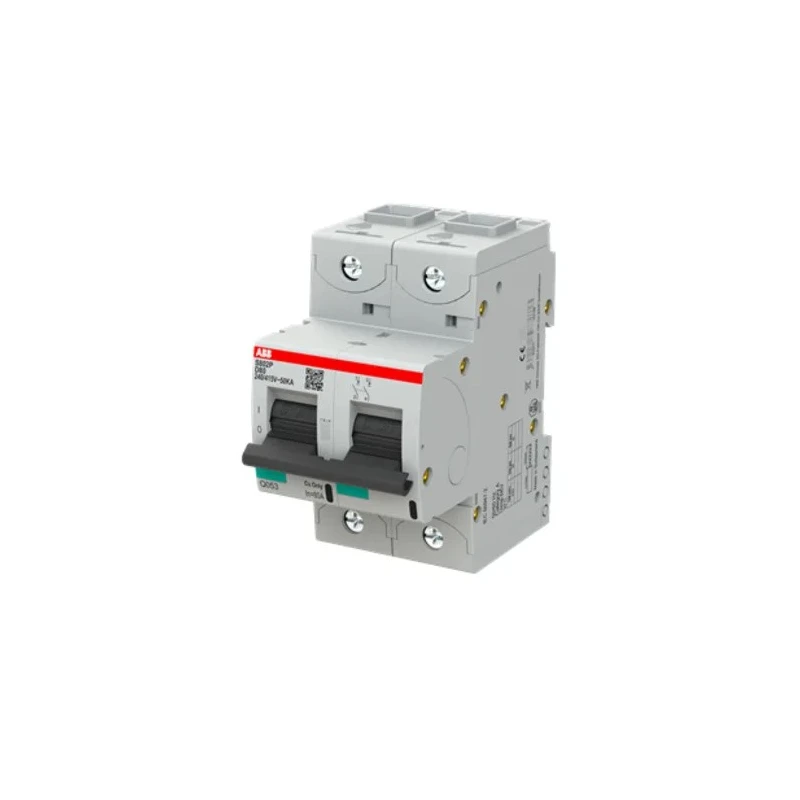

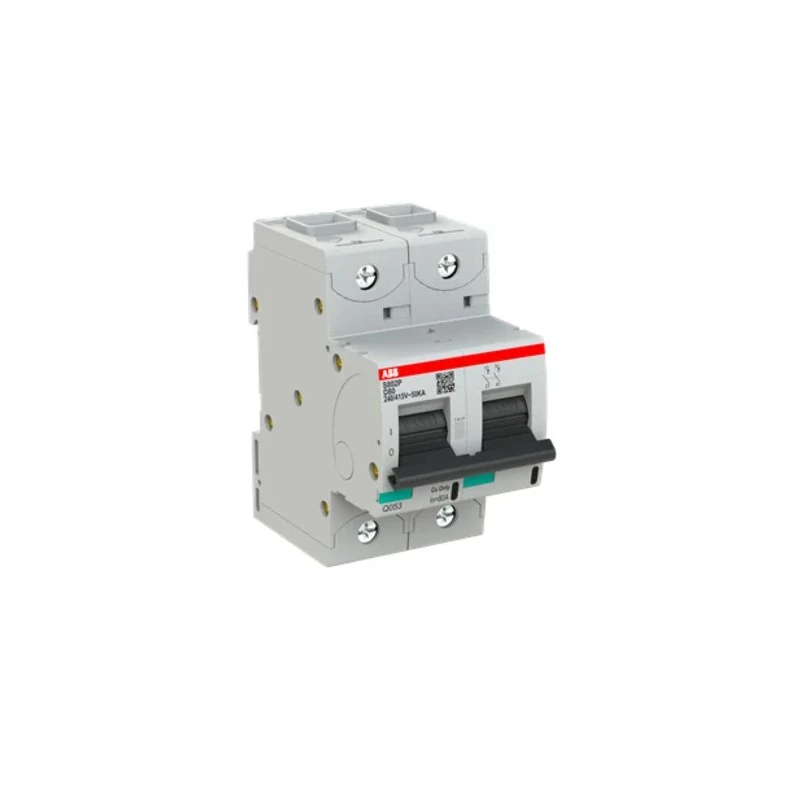

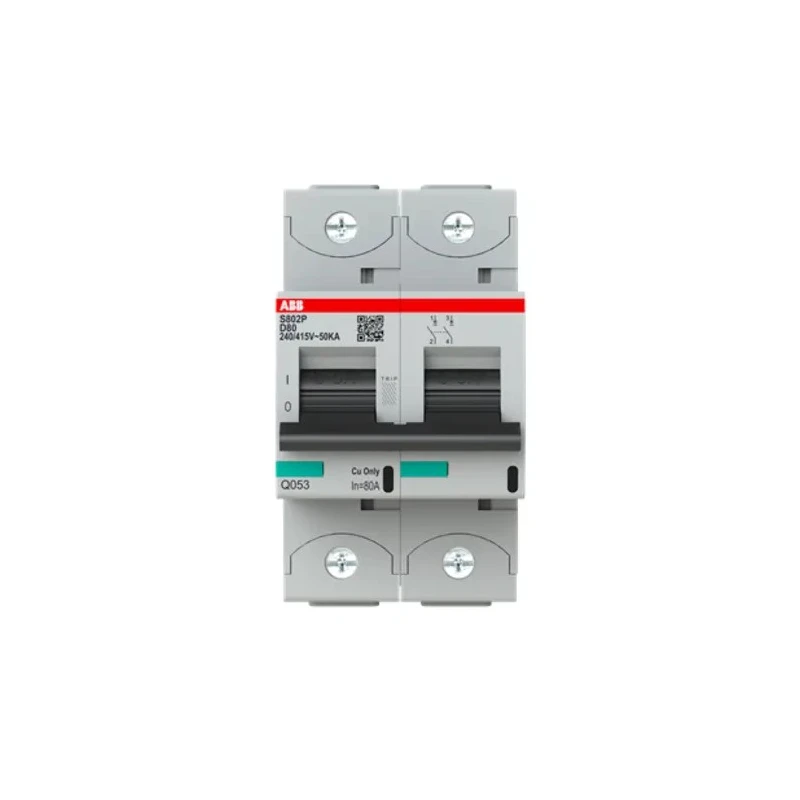

ABB High Performance S800S Miniature Circuit Breaker, 2-Pole, 80A, Type D, 690V AC, 250 V DC, 50 kA Breaking 2CCG001241R0001

Free Delivery in India | Lowest Global Shipping Charges

ABB High Performance S800S Miniature Circuit Breaker, 2-Pole, 80A, Type D, 690V AC, 250 V DC, 50 kA Breaking 2CCG001241R0001



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Switzerland
Range	High Performance
Brand	ABB
Height	95mm
Model	2CCG001241R0001
Depth	88.5mm
IP Rating	IP20
Width	53mm
Mount Type	DIN Rail
Current Rating	80A
Series	S800S
Terminal type	Screw
Breaking Capacity	50kA
Number of Poles	2
Standards/Approvals	IEC/EN 60947-2, IEC/EN 60898-1
Rated AC Voltage	690V ac
Rated DC Voltage	250V
Tripping Characteristics	Type D
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle Switch

Key Features

Supports high breaking capacity of 50 kA for fault protection.
Equipped with a toggle switch for easy reset after tripping.
Rated for 690V AC and 250V DC voltage applications.
Tripping characteristic Type D ideal for large inductive loads.
Designed with DIN rail mount for versatile installation.
Meets IEC/EN 60947-2 and IEC/EN 60898-1 safety standards.
IP20 protection rating ensures safe use in electrical panels.
Manufactured in Switzerland ensuring high quality and durability.

Product Description

ABB 2CCG001241R0001 Miniature Circuit Breaker is a high-performance 2-pole protection device designed to ensure safety and reliability in electrical systems. This breaker supports an 80A current rating combined with a robust 50 kA breaking capacity, making it suitable for industrial, commercial, and residential power distribution applications.

Featuring a Type D tripping characteristic, it effectively handles high inrush currents typical of large inductive loads such as motors and transformers. The electromagnetic and thermomagnetic tripping mechanisms enable precise and quick interruption of fault currents.

The compact unit measures 95 mm in height, 53 mm in width, and 88.5 mm in depth, making it highly suitable for DIN rail mounting installations. Its toggle switch reset actuator offers convenient manual resetting without the need for tools, enhancing operational efficiency and maintenance ease.

Designed with screw terminal type connections, it offers compatibility with various wiring setups. The device has an IP20 protection rating, ensuring protection from solid foreign objects while allowing ventilation.

Compliance with IEC/EN 60947-2 and IEC/EN 60898-1 standards, as well as certifications including CCC, GOST-R, LR, DNV, and RINA, affirm its safety and quality standards. This miniature circuit breaker is manufactured in Switzerland, highlighting its superior engineering and build quality.

Applications include use in industrial automation systems, commercial electrical panels, residential power distribution, and safeguarding sensitive electronic equipment. It is ideal for facilities requiring reliable circuit management and protection against overloads and short circuits.

Supports high breaking capacity of 50 kA for fault protection. Equipped with a toggle switch for easy reset after tripping. Rated for 690V AC and 250V DC voltage applications. Tripping characteristic Type D ideal for large inductive loads.

Designed with DIN rail mount for versatile installation. Meets IEC/EN 60947-2 and IEC/EN 60898-1 safety standards. IP20 protection rating ensures safe use in electrical panels. Manufactured in Switzerland ensuring high quality and durability.
