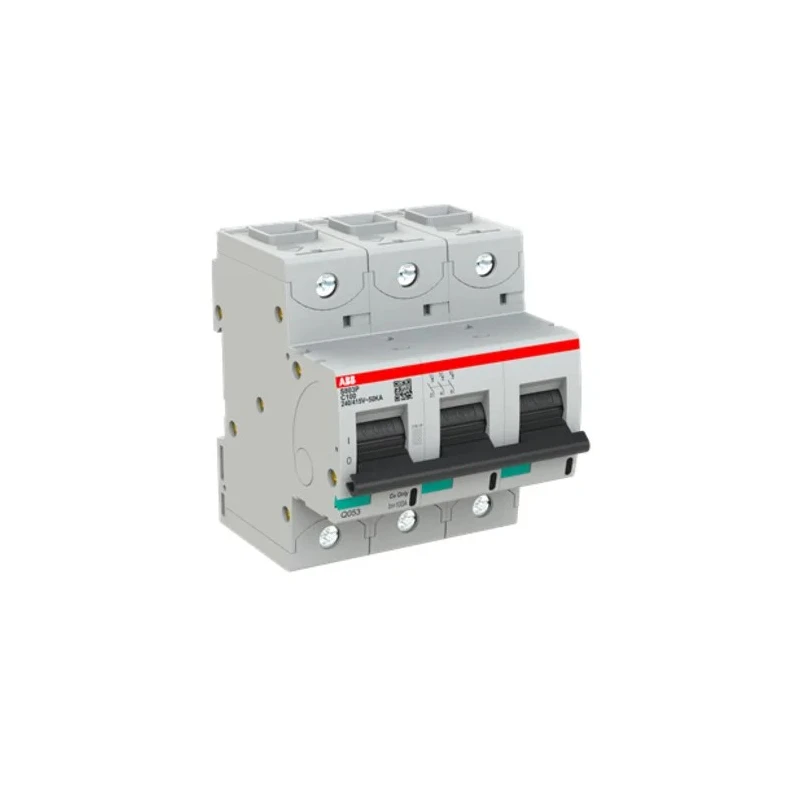

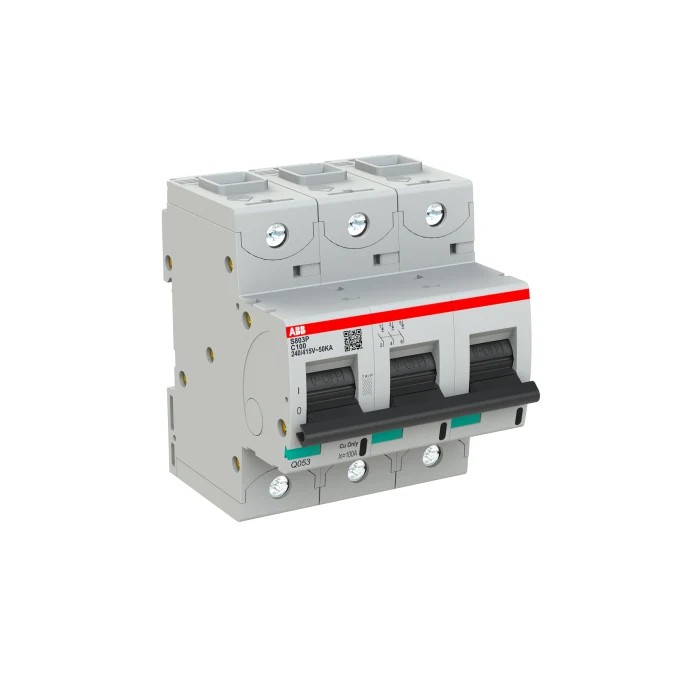

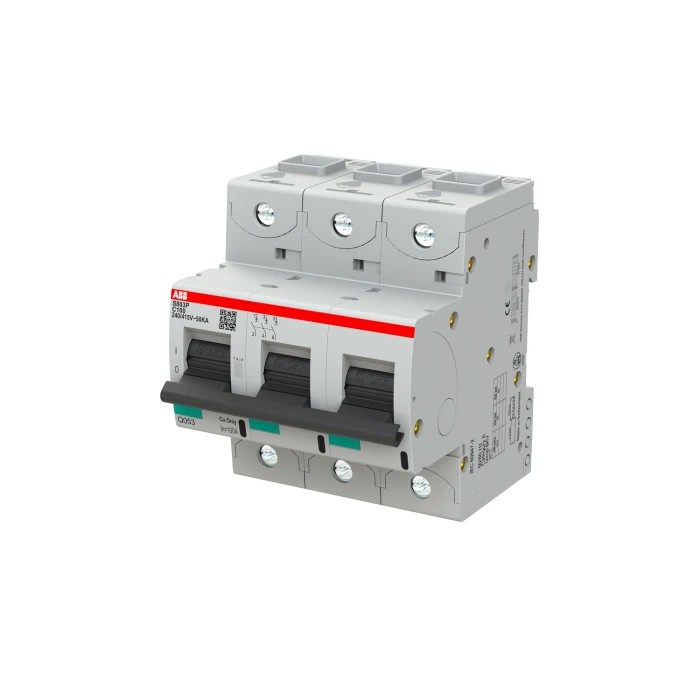

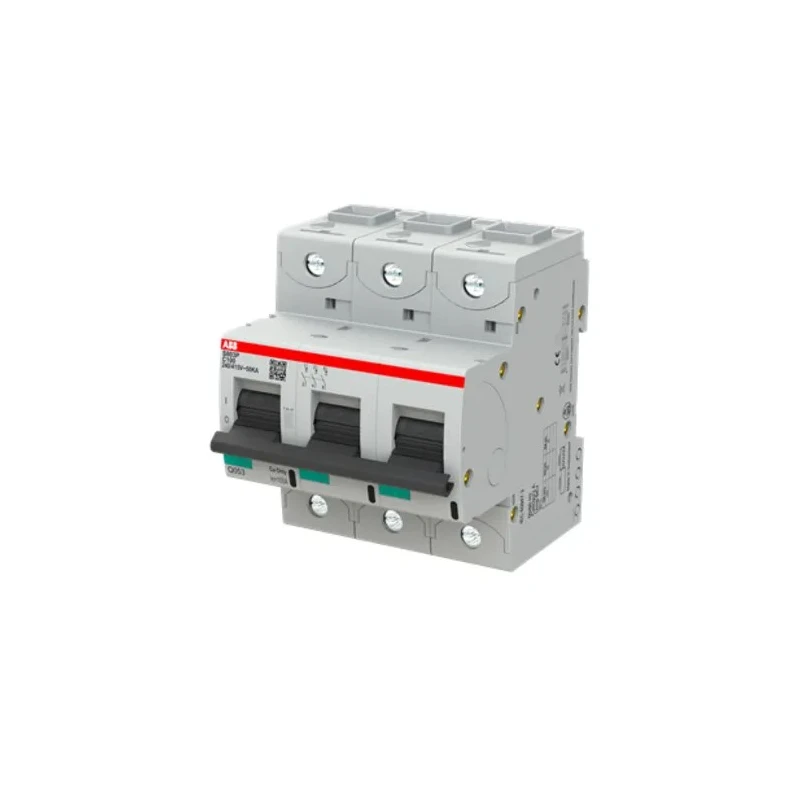

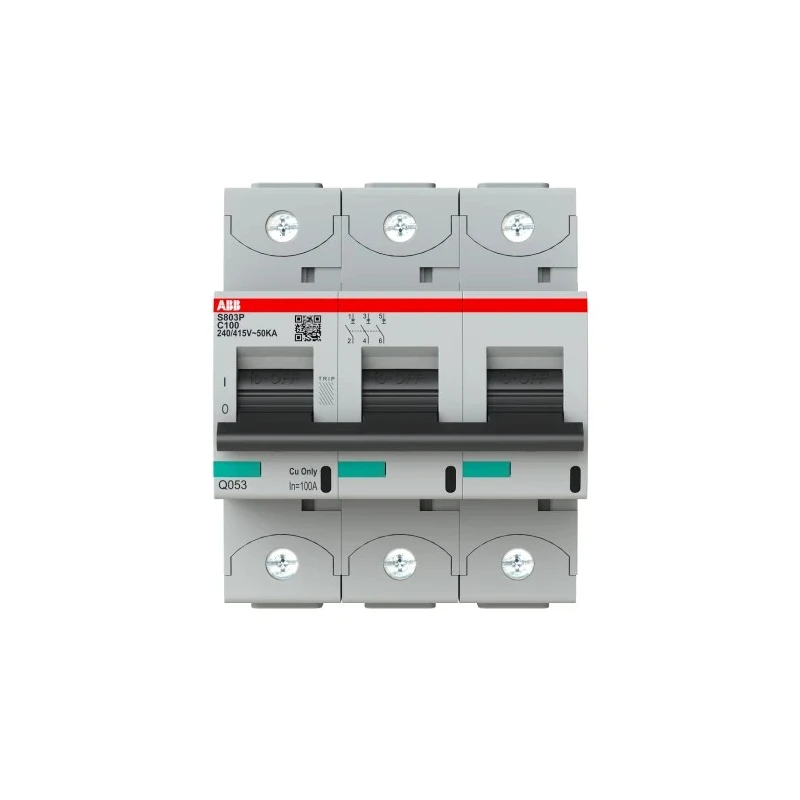

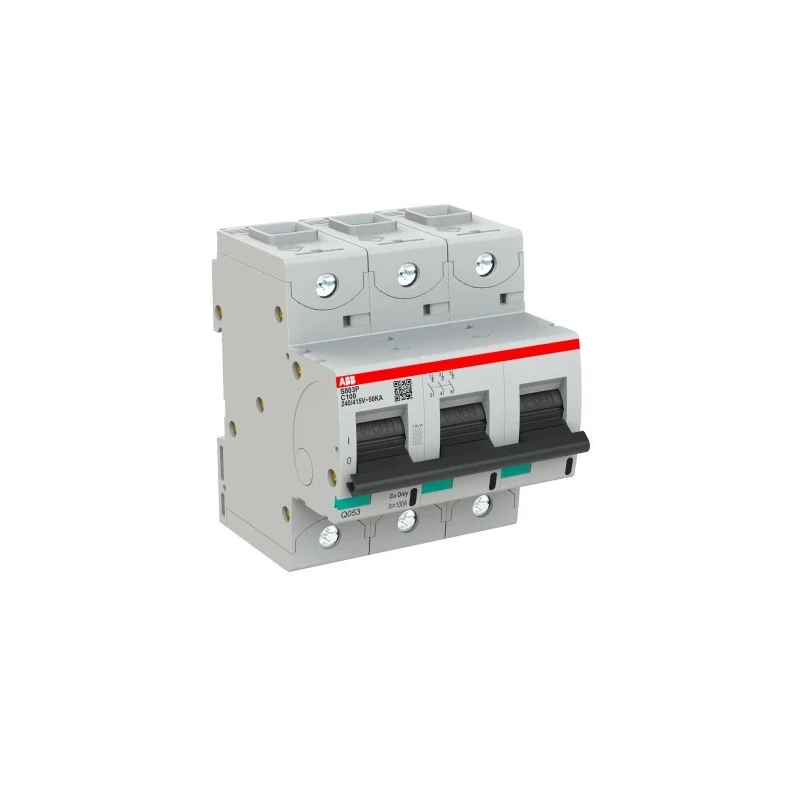

ABB High Performance S800S Miniature Circuit Breaker, 3-Pole, 100A, Type C, 690V AC, 250V DC, 50kA Breaking 2CCG001233R0001
Specifications
| Country of Origin | Switzerland |
|---|---|
| Range | High Performance |
| Brand | ABB |
| Height | 95mm |
| Model | 2CCG001233R0001 |
| Depth | 82.5mm |
| IP Rating | IP20 |
| Width | 81mm |
| Mount Type | DIN Rail |
| Current Rating | 100A |
| Series | S800S |
| Terminal type | Screw |
| Breaking Capacity | 50kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 250V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Compact device with dimensions 81mm width, 95mm height, and 82.5mm depth for easy DIN rail mounting.
- Supports rated AC voltage of 690V and DC voltage of 250V for versatile applications.
- High breaking capacity of 50kA ensures enhanced safety against short circuits and overloads.
- Toggle switch actuator allows quick and simple manual reset after tripping.
- Tripping mechanism combines electromagnetic and thermomagnetic protection for precise response.
- Type C tripping characteristic suitable for inductive loads such as motors and transformers.
- Maintains IP20 rating, providing basic protection against solid objects and safe handling.
- Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards for reliability and quality.
Product Description
ABB 2CCG001233R0001 High Performance S800S Miniature Circuit Breaker is a 3-pole device rated for 100A current, designed to provide robust and reliable protection for electrical circuits in residential, commercial, and industrial applications.
This miniature circuit breaker features a compact form factor with a width of 81mm, height of 95mm, and depth of 82.5mm, suitable for DIN rail mounting which facilitates easy and secure installation.
Operating at a rated AC voltage of 690V and DC voltage of 250V, it offers high versatility across different types of electrical installations. The breaker has a breaking capacity of 50kA, offering enhanced protection against high fault currents that can damage equipment or cause hazards.
The device includes a toggle switch actuator for straightforward resetting after a trip event, combining electromagnetic and thermomagnetic tripping mechanisms to ensure accurate and responsive circuit protection. Its Type C tripping characteristic makes it ideal for inductive loads like motors, transformers, and lighting circuits.
Internally protected and complying with IEC/EN 60947-2 and IEC/EN 60898-1 standards, it guarantees safety and performance under demanding conditions. The IP20 rating safeguards users against accidental contact with live parts, while allowing airflow and heat dissipation.
Designed to operate reliably within ambient temperature ranges from -25°C to +60°C, this circuit breaker suits a wide range of environments and industrial applications. Compact size with DIN rail mounting compatibility. Rated for 690V AC and 250V DC.
50kA breaking capacity for enhanced safety. Type C tripping suitable for inductive loads. Toggle switch reset for easy operation. Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards. Electromagnetic and thermomagnetic trip mechanisms.
IP20 protection rating. Ambient operating range from -25°C to +60°C.
This ABB Miniature Circuit Breaker 2CCG001233R0001 is essential for protection in residential electrical panels, commercial installations, and small industrial control panels protecting pumps, motors, and other general-purpose loads.
Explore a full range of high-quality circuit protection devices and electrical components at EnvMart for all your industrial and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 100A, making it suitable for various electrical applications.
It supports a rated AC voltage of 690V and a rated DC voltage of 250V, providing versatility for different installations.
The breaking capacity of this unit is 50kA, ensuring enhanced protection against short circuits and overloads.
It features a combination of electromagnetic and thermomagnetic tripping mechanisms for precise response to faults.
The device maintains an IP20 rating, providing basic protection against solid objects and safe handling.
The dimensions are 81mm in width, 95mm in height, and 82.5mm in depth, suitable for DIN rail mounting.
It has a Type C tripping characteristic, which is suitable for inductive loads such as motors and transformers.
It includes a toggle switch actuator that allows for quick and simple manual resetting after a trip event.
It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards, ensuring reliability and quality in performance.
This unit is designed for DIN rail mounting, facilitating easy and secure installation.
It operates reliably within an ambient temperature range from -25°C to +60°C, suitable for various environments.
The country of origin for this model is Switzerland, reflecting its manufacturing standards.
