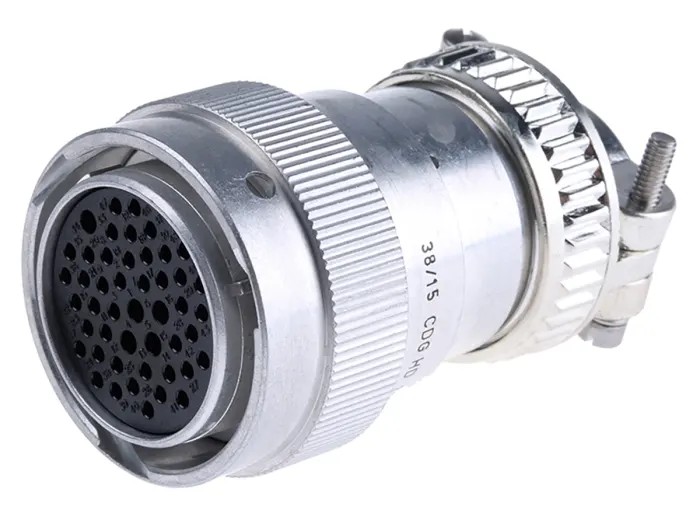

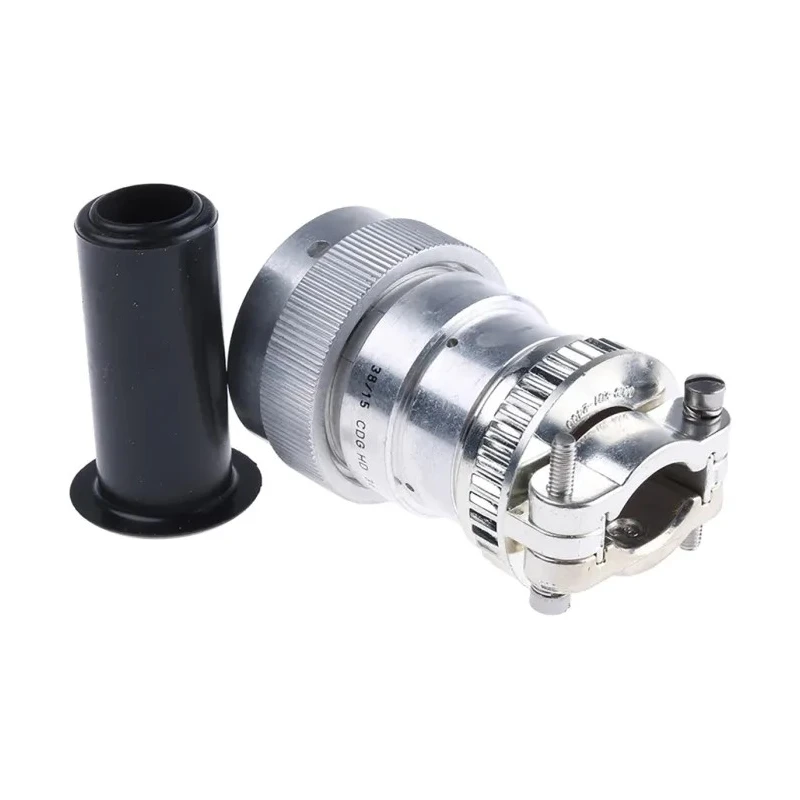

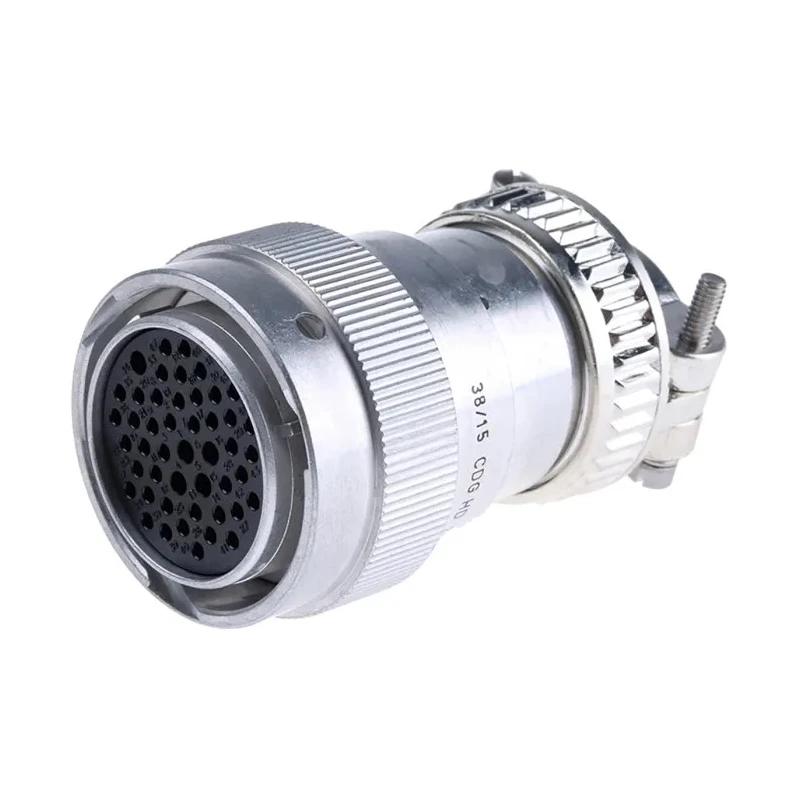

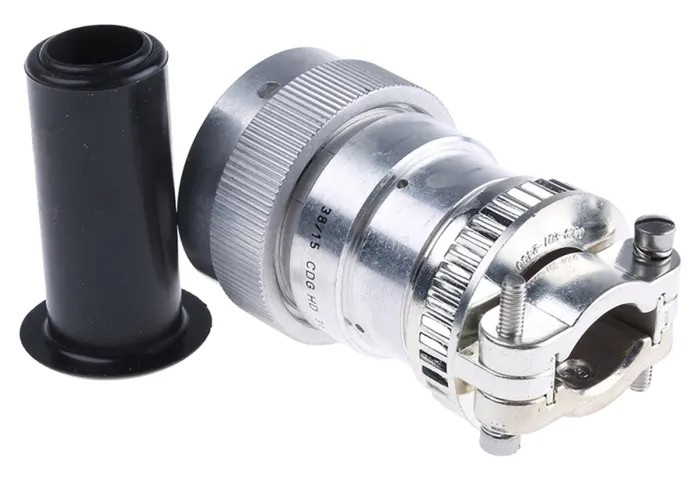

Deutsch Circular Connector Cable Plug Female 47 Contacts 1.59 mm Bayonet Orientation IP67 Aluminium Housing HD36-24-47SE-059
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Deutsch |
| Orientation | Straight |
| Current | 13A |
| Model | HD36-24-47SE-059 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | HD30 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 47 |
| Contact Plating | Nickel |
| Number of Contacts | 47 |
| Contact Gender | Female |
| Shell Size | 24 |
| Mating Type | Bayonet |
| Connector Size | 1.59 mm |
| Plug/Socket | Plug |
Key Features
- Features 47 female contacts with 1.59 mm size for reliable cable connections.
- Constructed with durable aluminium housing ensuring corrosion resistance.
- Designed for 250 V voltage rating and 13 A current capacity with bayonet mating type.
- Supports operating temperatures from -55°C to 125°C for extreme conditions.
- Termination type is crimp, suitable for secure and robust cable terminations.
- Meets IP67 standard for dust tight and water immersion protection.
- Nickel-plated copper contacts offer excellent conductivity and corrosion resistance.
- Intended for industrial and heavy-duty applications requiring rugged connectors.
Product Description
Deutsch HD36-24-47SE-059 Circular Connector is a high-performance industrial cable plug featuring 47 female contacts with a connector size of 1.59 mm. It belongs to the HD30 series, offering robust performance with a bayonet mating type ensuring secure and quick connections. The aluminium housing provides strength and corrosion resistance, making it suitable for demanding industrial applications.
This circular connector supports a voltage of 250 V and a current rating of 13 A, ideal for power and signal transmission in environments requiring high reliability. The connector is IP67 rated, offering complete protection against dust ingress and water immersion, ensuring durability even in harsh conditions.
Operating temperature ranges from -55°C to 125°C, allowing use in extreme temperatures. The crimp termination ensures secure contact with cables, and the nickel-plated copper contacts provide superior conductivity and corrosion resistance.
The HD36-24-47SE-059 connector is designed for rugged use, withstanding a minimum of 100 mating cycles and vibration forces of 20g across 10 to 2000 Hz frequencies, ensuring stability in automotive, industrial machinery, and heavy equipment deployments.
Its bayonet coupling provides fast and secure connections, while the straight orientation facilitates straightforward cable routing. The robust design and high performance make it suitable for industrial, manufacturing, automation, transportation, and heavy-duty electrical applications.
Features 47 female contacts sized at 1.59 mm for secure electrical connections. Aluminium housing offers mechanical strength and corrosion resistance. Bayonet mating type enables quick and reliable connector locking. Rated for IP67 ingress protection, sealing against dust and water immersion.
Nickel-plated copper contacts deliver excellent electrical performance. Supports voltage up to 250 V and current up to 13 A. Operates efficiently in harsh temperature ranges from -55°C to 125°C. Crimp termination ensures firm cable attachment and electrical continuity.
Explore more high-quality Industrial Circular Connectors from Deutsch at EnvMart for your power and signal transmission needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 250 V and a current capacity of 13 A, making it suitable for power and signal transmission applications.
The connector has an IP67 rating, providing complete protection against dust ingress and water immersion.
It features an aluminium housing for mechanical strength and corrosion resistance, with nickel-plated copper contacts for excellent conductivity.
This connector operates efficiently in a temperature range from -55°C to 125°C, suitable for extreme conditions.

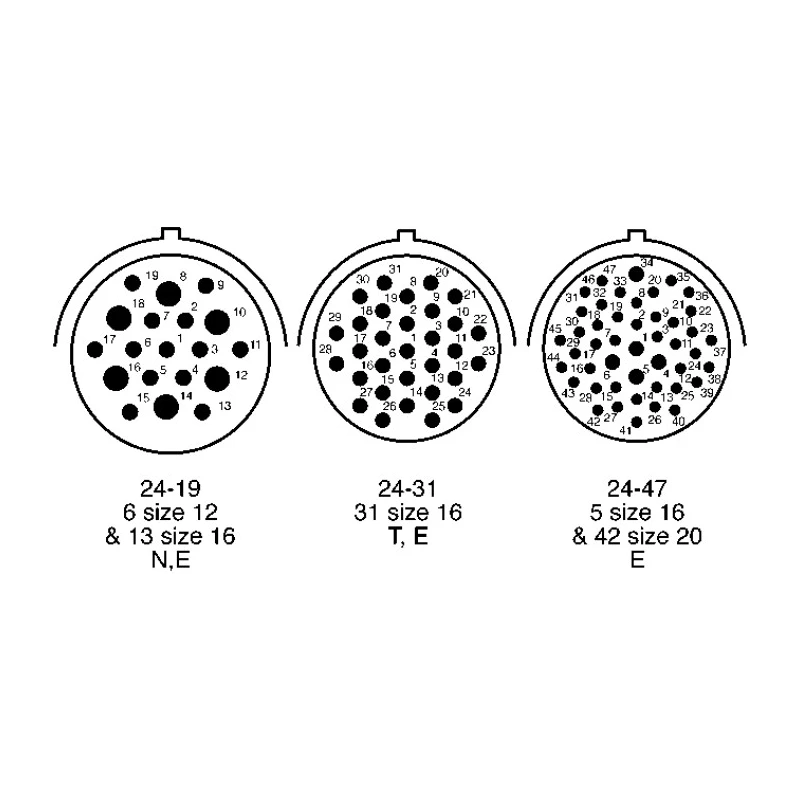

The HD36-24-47SE-059 model features 47 female contacts, each sized at 1.59 mm.
It uses crimp termination, ensuring a secure and robust connection with cables.
This model utilizes a bayonet mating type, which allows for quick and reliable locking of connections.
The shell size for this circular connector is 24, which is part of its design specifications.
It is designed to withstand a minimum of 100 mating cycles, ensuring durability in repeated use.
This connector is suitable for industrial, manufacturing, automation, transportation, and heavy-duty electrical applications.
The connector features a straight orientation, facilitating straightforward cable routing during installation.
The country of origin for this connector is India, indicating its manufacturing location.
