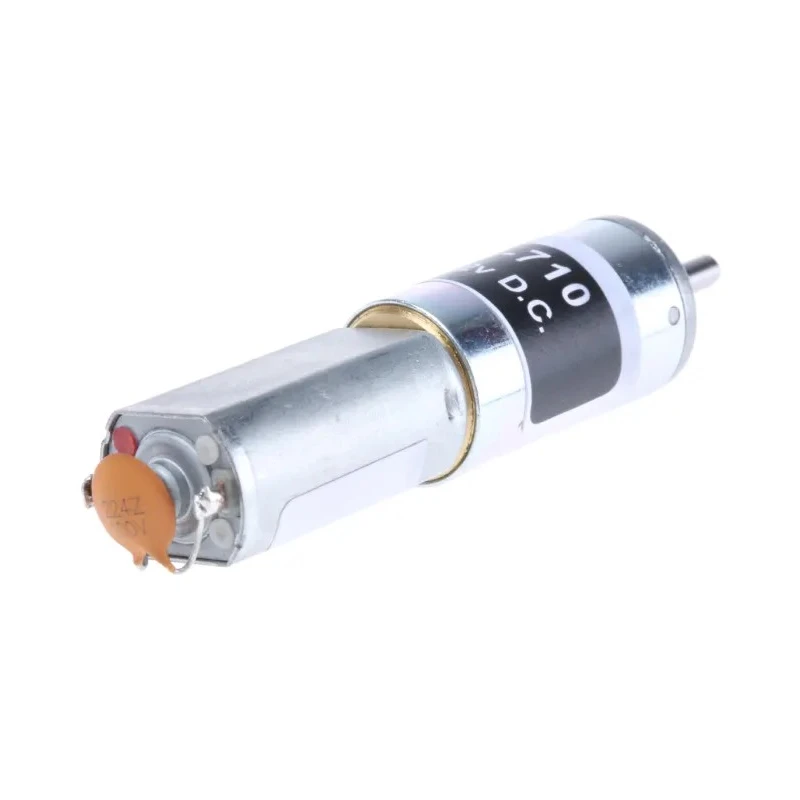

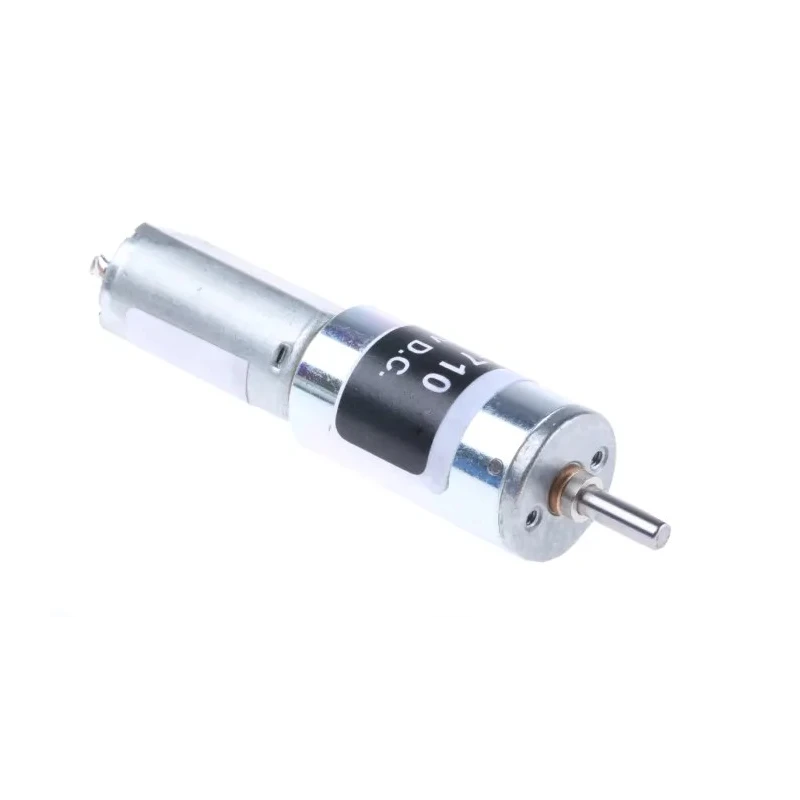

RS PRO Brushed Geared DC Geared Motor 0.39W 12V DC 24Ncm Torque 6rpm Speed 3mm Shaft Diameter 420-710
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Material | Metal |
| Length | 56.5mm |
| Model | 420-710 |
| Depth | 16mm |
| Width | 16mm |
| Mount Type | Screw |
| Current Rating | 60mA |
| Series | RS PRO |
| Power Rating | 0.39W |
| Sub Type | Brushed Geared |
| Output Speed | 6rpm |
| Shaft Diameter | 3mm |
| Shaft Length | 9mm |
| Supply Voltage | 12V dc |
| Gear ratio | 1014:1 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 24Ncm |
| Gearhead Type | Planetary |
| Core Construction | Iron Core |
| Gear Ratio 1014 | 1 |
| 1014 | 1 |
Key Features
- This motor uses a planetary gearhead for enhanced torque transfer and reduced speed.
- Constructed with metal material and iron core for durability and reliability.
- Ideal for low speed applications requiring high starting torque.
- Features sintered bronze output bearings for high efficiency.
- Suitable for prototyping, water pumps, camera systems, robotics, and fan applications.
- Compact dimensions with a length of 56.5mm and shaft length of 9mm.
- Easy to mount using the screw mount type for secure installation.
- Current rating is 60mA ensuring low power consumption.
Product Description
RS PRO 420-710 is a brushed geared DC geared motor with a power rating of 0.39W operating at 12V dc voltage. It delivers robust performance with a maximum output torque of 24Ncm and a low output speed of 6rpm, making it well-suited for applications demanding high torque at low speeds. The motor features a 3mm diameter shaft and a length of 56.5mm with a shaft length of 9mm, enabling precise mechanical connections.
This motor incorporates a planetary gearhead with bronze output bearings that guarantee efficient torque transfer and prolong motor life. The iron core and durable metal construction ensure reliability in heavy-duty environments and industrial settings.
Brushed design provides a simplified motor construction and allows direct wiring to DC power sources without the need for encoders or drivers. While this design may have shorter service life due to brush wear compared to brushless motors, it offers cost-effective and versatile use in various equipment.
Typical applications include prototyping, water pumping, camera system actuation, robotics, and fan drives. The motor's screw mount type facilitates easy installation in automated and control gear systems.
Compliant with RoHS standards and produced under the RS PRO series, this motor represents a dependable choice for industrial, laboratory, and commercial use. This motor uses a planetary gearhead for enhanced torque transfer and reduced speed.
Constructed with metal material and iron core for durability and reliability. Ideal for low speed applications requiring high starting torque. Features sintered bronze output bearings for high efficiency. Suitable for prototyping, water pumps, camera systems, robotics, and fan applications.
Compact dimensions with a length of 56.5mm and shaft length of 9mm. Easy to mount using the screw mount type for secure installation. Current rating is 60mA ensuring low power consumption. This brushed geared DC motor is RoHS compliant and made in Taiwan, Province Of China.
Explore more industrial motors and gear motor solutions at EnvMart to meet your automation and manufacturing needs.
Explore more products in our Gear Motors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 0.39W, operating at a supply voltage of 12V DC.
It delivers a maximum output torque of 24Ncm, making it suitable for applications requiring high starting torque.
The output speed of this motor is 6rpm, which is ideal for low-speed applications.
This model features a planetary gearhead, which enhances torque transfer and reduces speed.
The motor has a length of 56.5mm, a width of 16mm, and a depth of 16mm.
The shaft diameter is 3mm, with a shaft length of 9mm, allowing for precise mechanical connections.
It features a screw mount type for secure installation, facilitating easy mounting in various applications.
The current rating is 60mA, ensuring low power consumption during operation.
Yes, it is compliant with RoHS standards, indicating it meets environmental safety requirements.
The motor is constructed with metal material and features an iron core for enhanced durability and reliability.
This model is suitable for prototyping, water pumps, camera systems, robotics, and fan applications.
This motor is manufactured in Taiwan, Province Of China.
