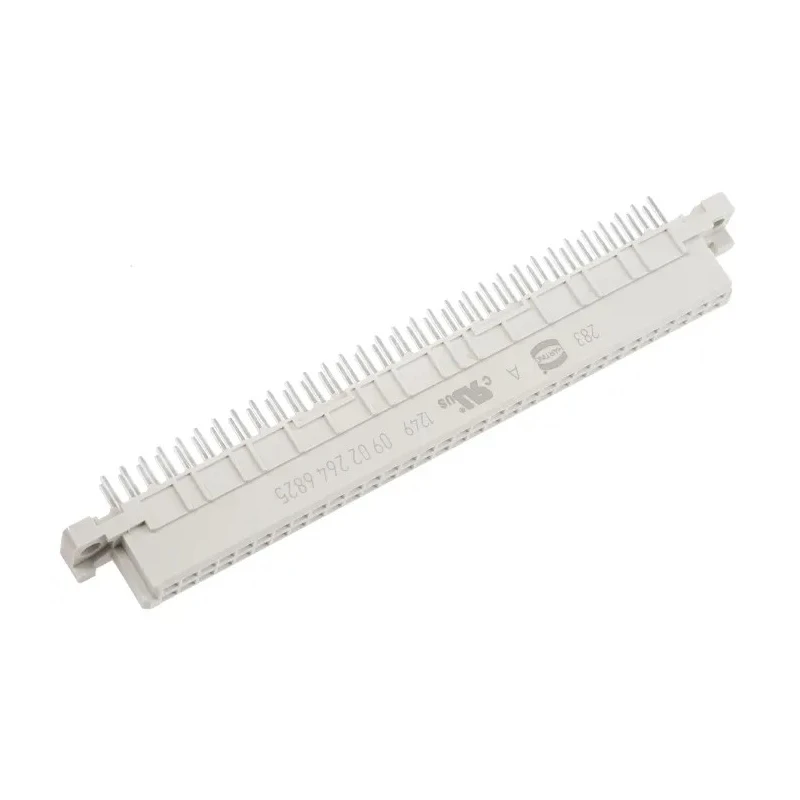

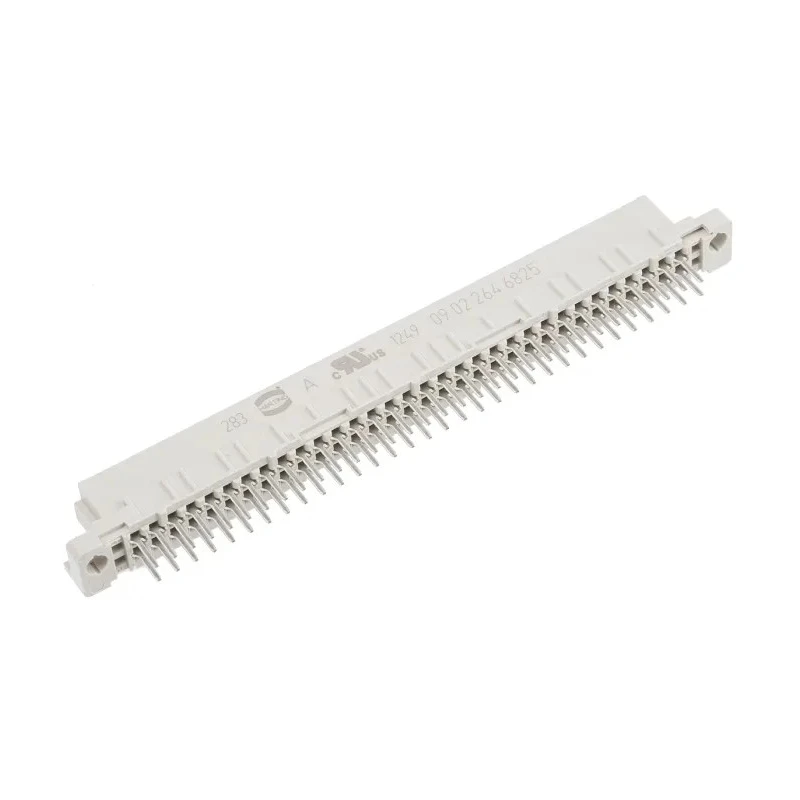

HARTING DIN 41612 64 Way 2.54 mm Pitch Type B Through Hole Solder Connector Class C2 09022646825
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Filled Thermoplastic |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Type B |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B |
Key Features
- Provides 64 contact points with a pitch of 2.54 mm for accurate connectivity.
- Constructed with gold over nickel plating on copper alloy contacts ensuring conductivity and corrosion resistance.
- Rated for a maximum current of 2A per contact to support moderate electrical loads.
- Designed with a fibreglass filled thermoplastic housing for mechanical strength and thermal stability.
- Operates within a temperature range of -55°C to 125°C, suitable for industrial environments.
- Offers solder termination and through hole mount type for secure PCB integration.
- Designed as a female connector with straight orientation and row loading type A/B.
- Ensures low contact resistance up to 20 milliohms for efficient signal transmission.
Product Description
HARTING 09022646825 DIN 41612 Connector is a 64 Way, 2.54 mm pitch, Type B through hole solder termination connector engineered to provide reliable interconnection solutions for PCB applications. This connector features two rows of female contacts, offering a durable and hard-wearing design suitable for industrial and electronic equipment requiring stable signal and power transmission.
Constructed with copper alloy contacts plated with gold over nickel, it ensures excellent electrical conductivity and corrosion resistance. The fibreglass filled thermoplastic housing provides mechanical robustness and thermal resistance, supporting safe operation from -55°C to 125°C. Rated for 2A maximum current per contact, it delivers consistent performance in demanding environments.
Its low contact resistance of 20 mΩ guarantees minimal signal loss, making it ideal for backplane and rack connector configurations adhering to DIN 41612 standards. The solder termination and through-hole mount type facilitate easy and secure PCB integration, designed with a straight orientation and A/B row loading for optimal connection alignment.
Manufactured in Germany, this connector aligns with industrial quality standards and is widely used in electronic components, power connectors, and backplane assemblies in industrial, manufacturing, and telecommunications applications.
Provides 64 contact points with a pitch of 2.54 mm for accurate connectivity. Constructed with gold over nickel plating on copper alloy contacts ensuring conductivity and corrosion resistance. Rated for a maximum current of 2A per contact to support moderate electrical loads.
Designed with a fibreglass filled thermoplastic housing for mechanical strength and thermal stability. Operates within a temperature range of -55°C to 125°C, suitable for industrial environments. Offers solder termination and through hole mount type for secure PCB integration.
Designed as a female connector with straight orientation and row loading type A/B. Ensures low contact resistance up to 20 milliohms for efficient signal transmission. Manufactured in Germany with adherence to DIN 41612 standards.
Explore a broad selection of DIN 41612 Connectors and related electronic components at EnvMart to meet your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 2A per contact, supporting moderate electrical loads.
This model features a pitch of 2.54 mm for its 64 contact points, ensuring accurate connectivity.
The connector operates within a temperature range of -55°C to 125°C, making it suitable for industrial environments.
It ensures a low contact resistance of up to 20 milliohms, which helps in efficient signal transmission.
The contacts are made from copper alloy and are plated with gold over nickel, while the housing is constructed from fibreglass filled thermoplastic.
This unit has a straight orientation and features row loading type A/B for optimal connection alignment.
It features 2 rows of contacts, providing a total of 64 contact points.
It is manufactured in Germany, adhering to industrial quality standards.
This connector supports through hole mounting, allowing for secure integration into PCBs.
This model aligns with DIN 41612 standards, ensuring compatibility with established connector configurations.
