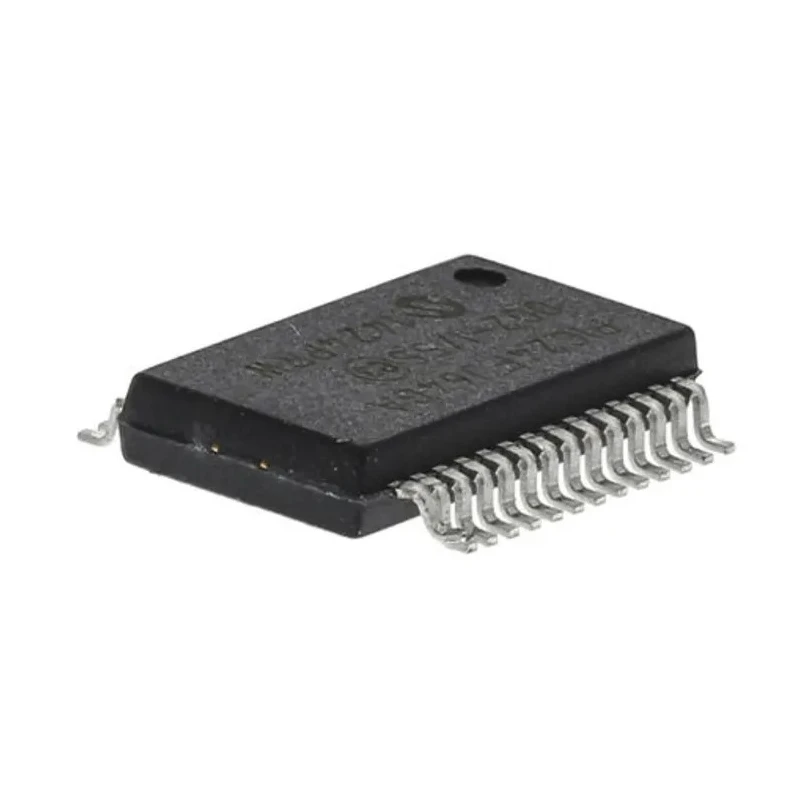

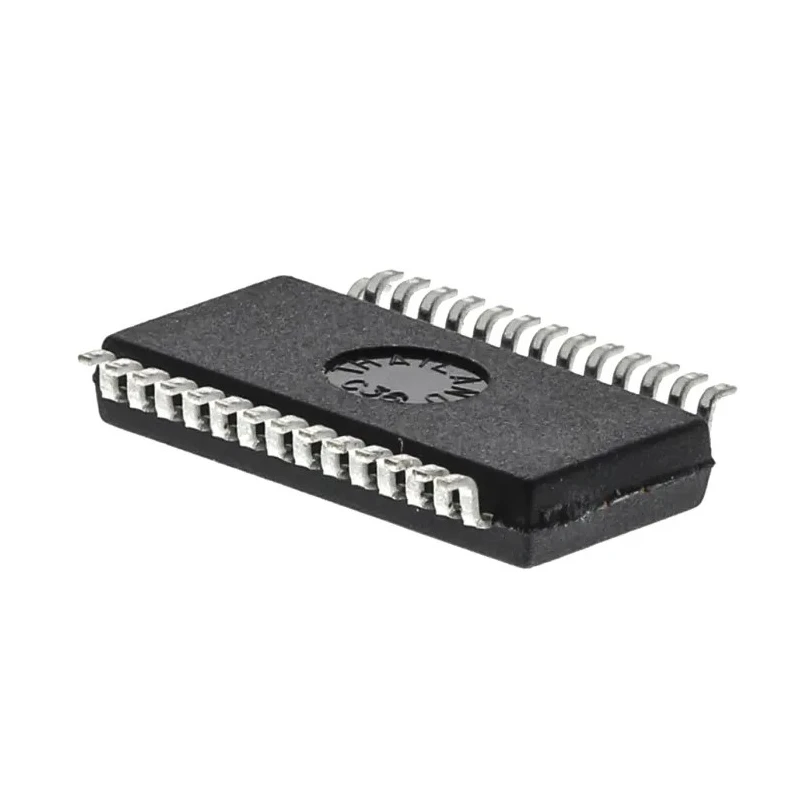

Microchip 16 bit PIC24FJ Microcontroller 32 MHz Clock Frequency 64kB FLASH Memory 28-Pin SSOP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 10.5mm |
| Model | PIC24FJ |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum supply voltage of 3.6V and minimum supply voltage of 2V.
- Features 8kB RAM and 64kB of program memory using FLASH technology.
- Includes 10 x 10-bit ADCs and 3 analogue comparators for precise analog signal processing.
- Has a modified Harvard instruction set architecture and a PIC device core.
- Equipped with 5 timers and supports Surface Mount Device (SMD) with SSOP package type.
- Operates reliably in temperature range from -40°C to 85°C.
- Suitable for industrial, embedded systems, consumer electronics, and automation applications.
Product Description
Microchip PIC24FJ64GA002-I/SS is a high-performance 16-bit PIC24FJ microcontroller operating at a maximum clock frequency of 32 MHz and designed in a 28-pin SSOP package. It features 64kB of FLASH program memory combined with 8kB RAM, offering robust computational capabilities for embedded applications.
The device supports a wide voltage range from 2V minimum operating voltage to a maximum of 3.6V, making it suitable for various power supply conditions. It incorporates 10 analog-to-digital converters (10 x 10-bit ADCs) and three analog comparators, enhancing its functionality for precise measurement and control.
The microcontroller employs a modified Harvard architecture and uses a PIC device core, providing efficient instruction execution. Its five timers support various timing and counting operations essential for complex embedded designs.
With compact physical dimensions of 10.5mm in length, 5.6mm in width, and 1.85mm in height, this SSOP-packaged microcontroller is ideal for surface mounting in compact circuit boards. The device is reliable over a wide operational temperature range from -40°C to 85°C, suitable for industrial and automotive environments.
Applications include automation, consumer electronics, industrial control systems, and other embedded systems demanding a balance of performance and power efficiency. Operates at 32 MHz clock frequency providing high-speed processing.
64kB FLASH program memory with 8kB RAM ensures ample memory for application code and data. 10 x 10-bit ADCs and three analog comparators for complex sensing applications. Modified Harvard architecture enhances program execution efficiency.
Compact 28-pin SSOP package suitable for surface mount technology. Wide supply voltage range from 2V to 3.6V supports various power scenarios. Operating temperature range from -40 to 85 degrees Celsius supports industrial-grade applications.
Package includes 1 piece of Microchip PIC24FJ64GA002-I/SS microcontroller in 28-Pin SSOP package. Explore more Microchip Microcontrollers and related components at EnvMart for your industrial and embedded system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The microcontroller operates at a maximum clock frequency of 32 MHz.
It features 64kB of FLASH program memory, providing ample space for application code.
This model includes 8kB of RAM for data storage and processing.
It operates reliably in a temperature range from -40°C to 85°C, suitable for industrial applications.
This microcontroller is designed in a 28-pin SSOP package, suitable for surface mounting.
The microcontroller operates with a minimum supply voltage of 2V and a maximum of 3.6V.
The device employs a modified Harvard instruction set architecture, enhancing program execution efficiency.
It is suitable for automation, consumer electronics, industrial control systems, and embedded systems.
The dimensions are 10.5mm in length, 5.6mm in width, and 1.85mm in height.
It utilizes a PIC device core, which is designed for efficient instruction execution.
