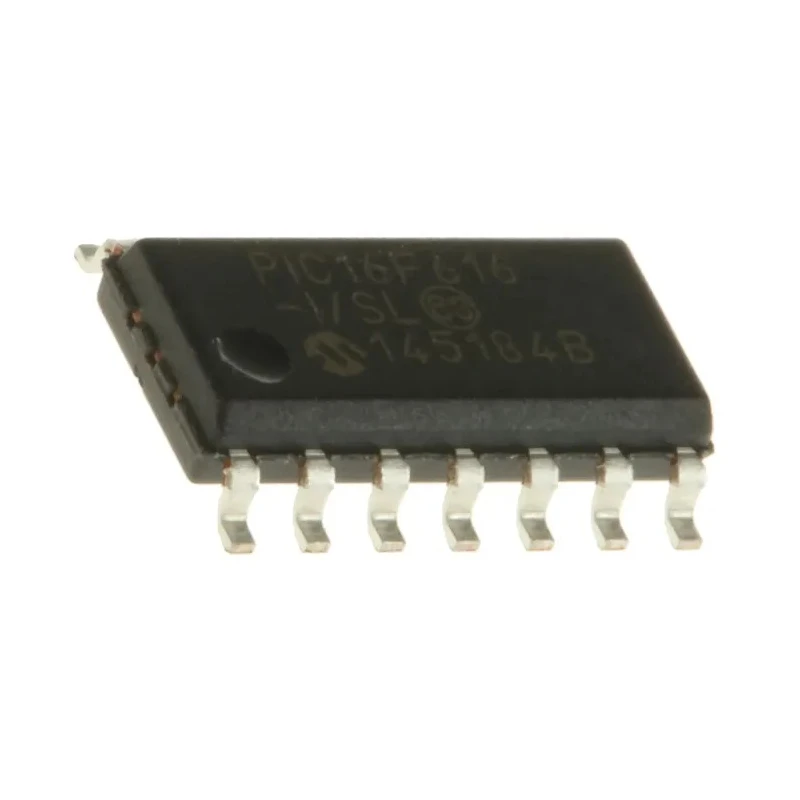

Microchip 8-bit PIC Microcontroller, 20 MHz, 3.5 kB FLASH, 14-Pin SOIC PIC16F616-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | PIC16F616-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | SPI |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| Microchip, 8bit PIC, PIC16F Microcontroller, 20MHz, 1K Flash, 14-Pin SOICBrand | Microchip |
Key Features
- Operates on a maximum clock frequency of 20 MHz.
- Includes 3.5 kB program memory with FLASH technology.
- Supports 22 programmable I/O pins for flexible interfacing.
- Features 8 channel 10-bit ADC on the PIC16F616 model.
- Operates over a temperature range of -40°C to 85°C.
- Powered with a supply voltage range of 2 V to 5.5 V.
- Integrated peripherals include 3 timers, 2 analog comparators, and watchdog timer.
- Utilizes RISC architecture with 35 instructions and 8 level deep hardware stack.
Product Description
Microchip PIC16F616-I/SL is an 8-bit PIC microcontroller featuring a 20 MHz maximum clock speed and 3.5 kB FLASH program memory in a compact 14-pin SOIC surface mount package. It belongs to the PIC16F series and employs a Mid-Range core with 35 instruction sets and an 8-level hardware stack, enabling up to 5 MIPS performance.
With 22 programmable I/O pins and 8 10-bit analog-to-digital converters available on this model, it offers versatile interfacing capabilities for embedded system applications. Operating over an industrial temperature range of -40°C to 85°C and supporting a supply voltage from 2 V to 5.5 V, this microcontroller is suitable for robust designs requiring power efficiency and precision.
This device integrates multiple peripherals, including three timers (1x 8-bit, 2x 16-bit), two analog comparators, and safety features such as power-on reset, brown-out reset, and watchdog timer to ensure reliable operation in industrial and consumer electronics.
The 14-pin SOIC package measures 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height, offering a compact footprint ideal for space-constrained PCB designs. It supports surface mount technology, facilitating automated assembly processes.
Applications include embedded controllers, industrial automation, sensor interfacing, and general-purpose microcontroller use where mid-range performance and low power consumption are essential.
Operates at up to 20 MHz clock frequency. 3.5 kB of on-chip FLASH program memory. 22 programmable input/output pins. Integrated 8-channel 10-bit ADC module. Temperature range from -40°C to 85°C. Power supply range: 2 V to 5.5 V.
Includes three timers and two analog comparators. RISC architecture with 35 instruction sets. Compact 14-pin SOIC surface mount package. Robust microcontroller solution for industrial and embedded applications.
Explore our comprehensive Microcontrollers category for more Microchip products designed to meet diverse industrial, commercial, and embedded system requirements. Browse technical documents and datasheets to support your design and development.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum clock frequency of 20 MHz.
This model includes 3.5 kB of FLASH program memory.
It supports 22 programmable I/O pins for flexible interfacing.
It operates over a temperature range of -40°C to 85°C.
It comes in a 14-pin SOIC surface mount package.
The supply voltage range is from 2 V to 5.5 V.
It utilizes a RISC architecture with 35 instruction sets.
The package measures 1.5 mm in height, 8.65 mm in length, and 3.9 mm in width.
The country of origin is India.
