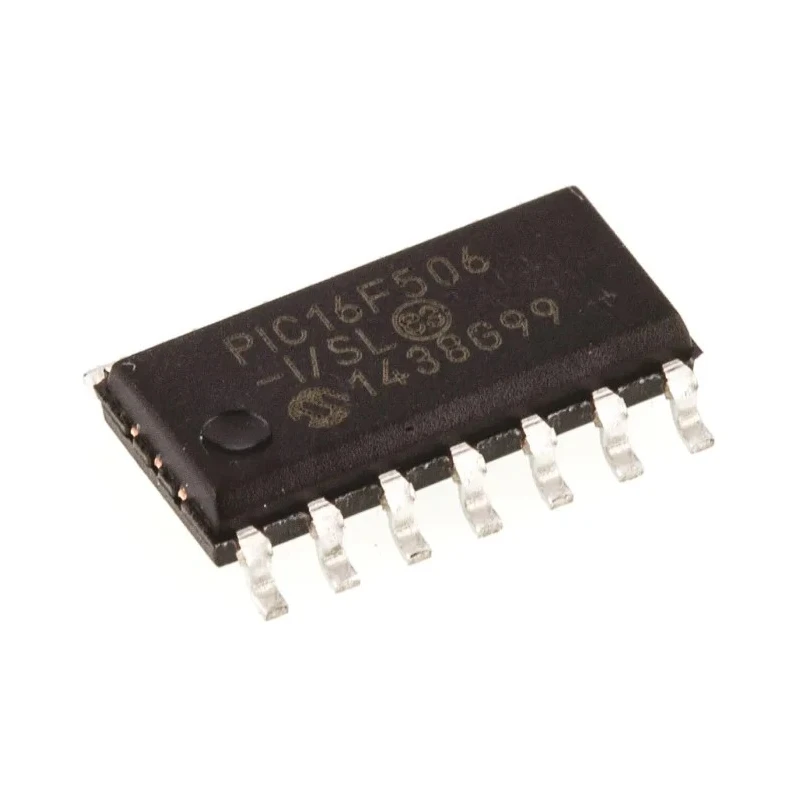

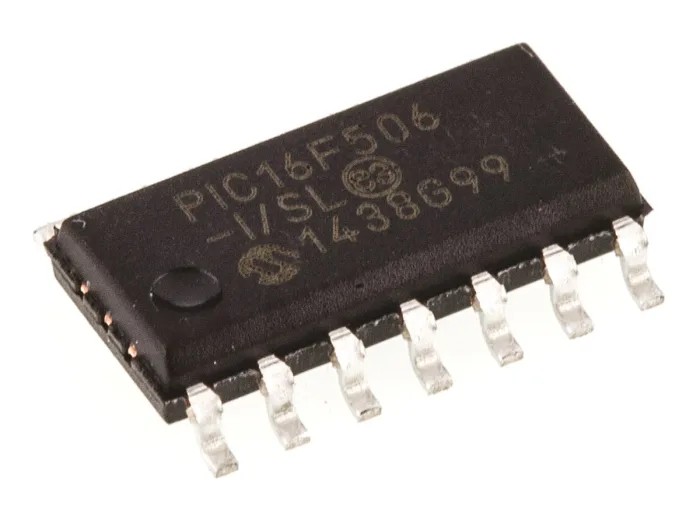

Microchip PIC16F506-I/SL 8 bit PIC Microcontroller, 20 MHz, 1.5 KB FLASH, 14-Pin SOIC Package

Microchip PIC16F506-I/SL is an 8-bit PIC microcontroller designed on Microchip's baseline core with a 2-level deep hardware stack. It delivers up to 5 MIPS performance with 1.5 KB program memory and 67 bytes RAM, housed in a compact 14-pin SOIC surface mount package suitable for space-constrained applications.

Operating at a maximum CPU frequency of 20 MHz, it features a 4-channel 8-bit ADC, two analog comparators, and an 8-bit timer, making it ideal for control and measurement applications in industrial, communications, consumer electronics, and embedded systems.

The microcontroller supports power-saving features including power-on reset, brown-out reset, watchdog timer, and device reset timer, enhancing system reliability and safety. Its internal oscillator is factory calibrated to ±1% accuracy to enable precise timing without external components.

Designed to operate over a wide temperature range from -40°C to 85°C, the PIC16F506-I/SL is suitable for harsh industrial environments. The device operates with a minimum supply voltage of 2 V and maximum of 6 V, with a power dissipation limit of 800 mW to support low power consumption designs.

The 13 programmable I/Os provide flexible interfacing options, while in-circuit serial programming and debugging facilitate firmware development and troubleshooting. The package measures 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height, optimized for surface mount technology on PCBs.

Utilizes RISC architecture with 33 instruction set for efficient processing. Integrated 4-channel 8-bit Analog-to-Digital Converter (ADC) for precision sensing. Includes two analogue comparators and one 8-bit timer for versatile applications.

Supports on-chip features like Power-On Reset, Brown-Out Reset, Watchdog Timer, and Device Reset Timer. Equipped with a factory-calibrated internal oscillator delivering ±1% accuracy. Operates reliably in temperature range from -40°C to 85°C for industrial use.

Low power dissipation of 800 mW suitable for embedded systems. Supports In-Circuit Serial Programming (ICSP) and debugging for development convenience.

This microcontroller is a flexible solution for embedded designs requiring compact size, moderate processing power, and reliable peripherals. It is widely applicable in industrial automation, sensor interfacing, communication equipment, and consumer electronics projects.
