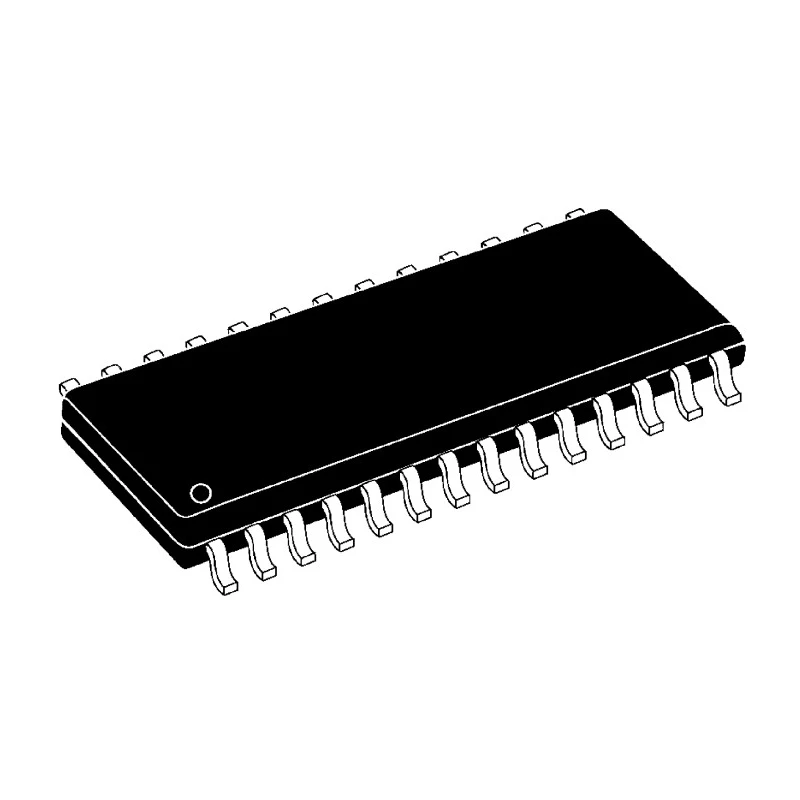

Microchip PIC18F2523-I/SO 8-Bit PIC18F Microcontroller 40 MHz 32 kB Flash 256 B EEPROM 28-Pin SOIC

Microchip PIC18F2523-I/SO 8-Bit PIC18F Microcontroller operates at a maximum clock frequency of 40 MHz delivering robust performance for embedded system designs. It comes in a compact 28-pin SOIC surface mount package optimized for space-constrained applications.

This device integrates 32 kB of flash program memory complemented by 256 bytes of data EEPROM and 1.54 kB RAM, providing ample memory resources for complex firmware. The architecture includes a 31-level hardware stack and a 75-instruction core ensuring efficient code execution.

The microcontroller supports up to 25 programmable I/O pins and includes 10 analog-to-digital converter channels with 12-bit resolution, enabling precise sensor interfacing for industrial, automotive, and consumer electronics applications. Advanced peripherals such as enhanced capture, compare, PWM modules, multiple timers, and serial communication interfaces (SPI, I2C, EUSART) enhance functionality and control.

Industrial grade features include operation over wide temperature extremes from -40°C to +85°C, nanoWatt power management technology, and automotive AEC-Q101 compliance. The device is equipped with power-on reset, power-up timer, oscillator start-up timer, brown-out reset, watchdog timer, and high/low voltage detection modules for robust control and stability.

The microcontroller supports in-circuit serial programming (ICSP) and debugging (ICD), facilitating easy development and testing. Its flash memory type allows reliable, reprogrammable code storage suitable for iterative development cycles.

Utilizes PIC18F architecture with 75 instructions and a 31-level hardware stack. Offers 32 kB flash memory and 256 B EEPROM for versatile data handling. Operates at a maximum frequency of 40 MHz for high-speed processing.

Includes 10 channels of 12-bit ADC for accurate analog input conversions. Supports industrial temperature range and AEC-Q101 automotive standard. Provides multiple timers and PWM modules for precise timing control. Features serial communication interfaces including SPI, I2C, and EUSART.

Powered by nanoWatt technology for low power consumption. Comes in a compact 28-pin SOIC surface mount package suitable for embedded designs. Enables in-circuit programming and debugging to streamline development.

This microcontroller is ideal for embedded control systems, automotive electronics, industrial automation, home and building automation, and instrumentation applications. Its robust feature set combined with power efficiency and automotive qualifications makes it suitable for demanding environments requiring high reliability and precision.
