Microchip 8 bit PIC18F Microcontroller 40 MHz 8.19kB FLASH 18-Pin PDIP PIC18F1330-I/P

Microchip PIC18F1330-I/P is an 8-bit PIC microcontroller designed for embedded systems requiring reliable and efficient control with moderate memory capacity. Featuring a 40 MHz maximum clock frequency and 8.19kB FLASH program memory, it is optimized for diverse industrial and commercial applications.

This microcontroller embraces a PIC core architecture with an 8-bit data bus width, supporting EUSART communication interfaces. It includes 256 bits of RAM and 25 programmable input/output pins that facilitate flexible connectivity and control options.

Included analog peripherals consist of 4 ADC channels with 10-bit resolution, a single 5-bit DAC, and 3 analog comparators, enhancing its capability to handle sensor data and analog signals effectively.

Operating within a robust voltage range from 1.8 V to 5.5 V and capable of sustaining a power dissipation up to 1 W, the device ensures stable performance under varied electrical conditions. It is designed to operate across a broad temperature span from -40 °C to 85 °C, suitable for industrial and automotive environments.

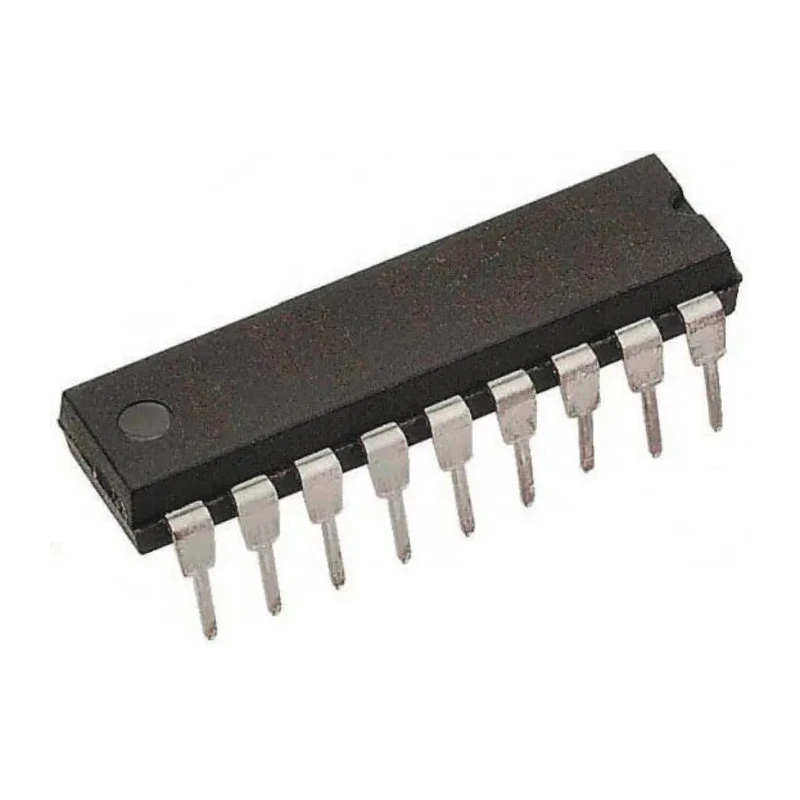

The device package is a 18-pin PDIP with through-hole mounting style, dimensions measuring 23.37 mm in length, 7.11 mm width, and 4.95 mm height, supporting ease of integration into printed circuit boards.

RoHS compliant, this microcontroller aligns with modern environmental safety regulations, making it appropriate for green manufacturing processes.

This microcontroller is ideal for industrial automation, embedded control systems, instrumentation, automotive electronics, and other general purpose microcontroller applications requiring moderate performance and memory.

Explore our wide selection of microcontrollers to find components that best fit your design needs from leading brands including Microchip available at EnvMart. This Microcontroller features a PIC device core with an 8-bit data bus width for efficient control applications.

Equipped with 256-bit RAM and 8.19kB of program memory based on FLASH technology. Supports EUSART interface and has 25 programmable I/Os for versatile integration. Includes 4 10-bit ADC channels and a 1 x 5-bit DAC, suitable for analog signal processing.

Operates within a supply voltage range of 1.8V to 5.5V with a maximum power dissipation of 1 W. Designed for temperature range from -40°C to 85°C making it suitable for varied environmental conditions. Complies with RoHS standards for environmental safety and sustainability.

Package measures 23.37 mm length, 7.11 mm width, and 4.95 mm height with through-hole mount type.
