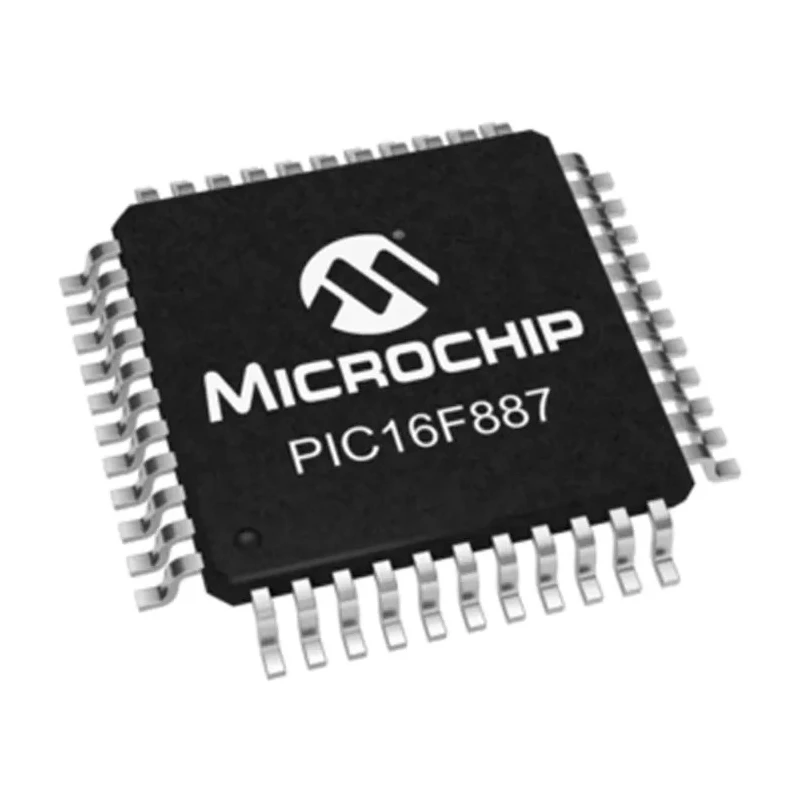

Microchip 8 bit PIC Microcontroller, 14kB FLASH, 20 MHz, 44-Pin TQFP PIC16F887-I/PT

Microchip PIC16F887-I/PT is an 8 bit PIC microcontroller designed for versatile embedded system applications, featuring 14kB FLASH memory and 20 MHz maximum clock frequency within a 44-Pin TQFP surface mount package.

Based on Microchip's Mid-Range core with a RISC instruction set, this microcontroller offers efficient performance with up to 5 MIPS. Its 35 programmable I/O pins allow flexible interfacing with external components.

Memory architecture includes 14kB of program memory, 368 bit RAM, and up to 256 bytes of EEPROM for non-volatile data storage. The device integrates 14 channels of 10-bit ADC providing precision analog to digital conversions.

Peripheral features include two capture/compare/PWM modules, one enhanced CCP module, two 8-bit timers, and one 16-bit timer. Communication interfaces supported are Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) and Master Synchronous Serial Port (MSSP) supporting both SPI and I2C protocols.

Operating voltage range is broad, from 2 V minimum to 5.5 V maximum, with maximum power dissipation capped at 800 mW. It operates reliably in harsh environments with temperature specifications from -40°C to 85°C. On-chip features like power-on reset, brown-out reset, oscillator start-up timer, and watchdog timer enhance system robustness.

The microcontroller's physical footprint of 10 mm length, 10 mm width, and 1.05 mm height makes it suitable for compact SMT designs on PCBs.

Microchip's PIC16F887-I/PT is ideal for industrial, laboratory, consumer electronics, automotive, and general embedded applications requiring low power and cost-effective control solutions.

Uses 14kB FLASH program memory for reliable embedded applications. Supports 8 bit data bus width and has 35 programmable I/O pins. Equipped with 368 bit RAM and up to 256 bytes EEPROM memory. Includes 14 channels of 10-bit ADC and multiple timer modules.

Operates from 2 to 5.5 V supply voltage with maximum power dissipation of 800 mW. Features RISC architecture with 35 instruction set and 8 level hardware stack. Designed for operating temperature range from -40°C to 85°C.

Offers peripheral interfaces: EUSART and MSSP supporting SPI and I2C protocols. Built-in power-on reset, brown-out reset, and watchdog timer for robust operation. Compact size with 10 mm x 10 mm x 1.05 mm dimensions suited for surface mount SMT applications.
