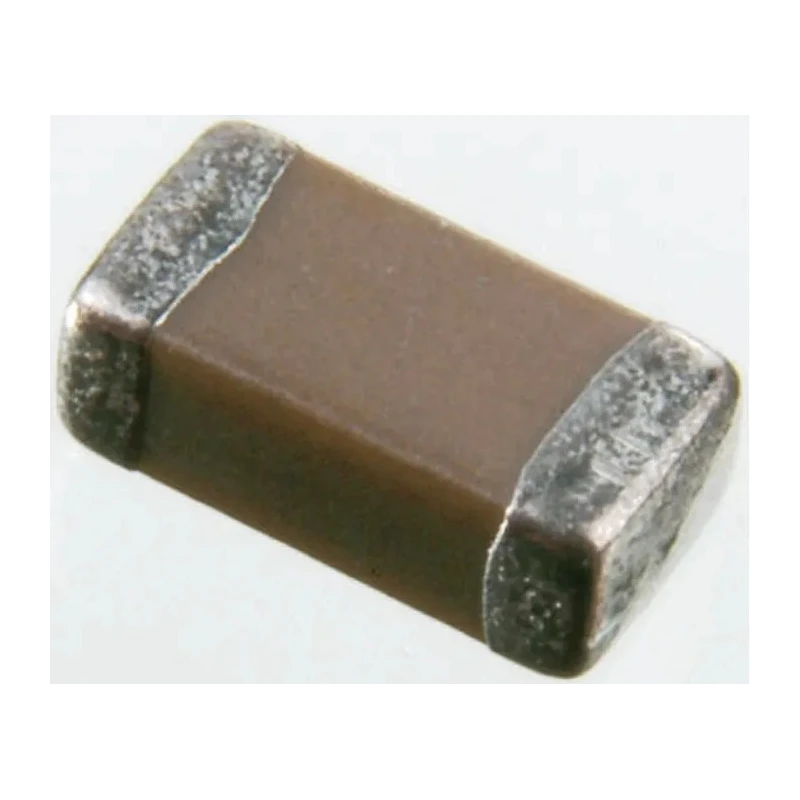

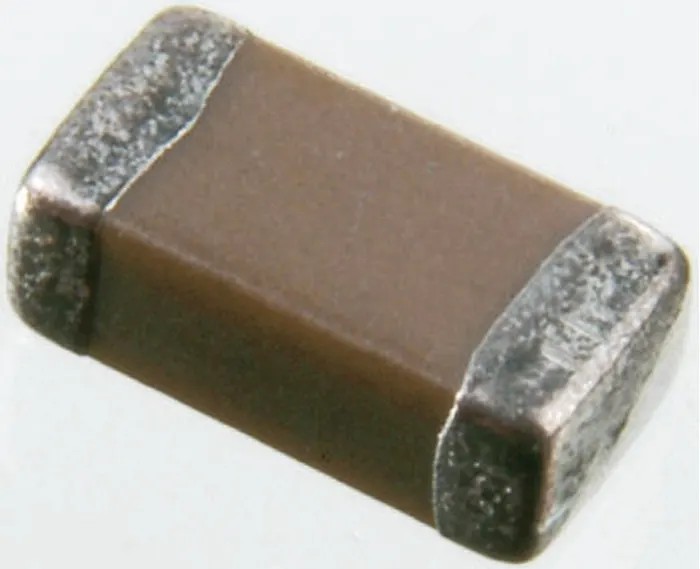

KYOCERA AVX 10 pF Multilayer Ceramic Capacitor 500V DC ±5 % Tolerance Surface Mount 1206 12067A100JAT2A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V dc |
| Brand | KYOCERA AVX |
| Height | 0.94mm |
| Length | 3.2mm |
| Model | 12067A100JAT2A |
| Packaging | Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | Standard |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 10pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1206 |
| Dielectric | C0G |
Key Features
- This capacitor has a 1206 package case suitable for surface mounting.
- The dielectric type is C0G, offering temperature stability and low loss.
- Operating temperature range spans from -55°C to 125°C, ensuring reliable performance.
- It features a height of 0.94 mm, length of 3.2 mm, and width of 1.6 mm dimensions.
- Manufactured to standard series specifications, it is not designed for automotive use.
- Termination type is surface mount, providing easy PCB integration.
- Ideal for high frequency power converters and DC blocking applications.
- Supplied in reels to improve production efficiency during assembly.
Product Description
KYOCERA AVX 12067A100JAT2A is a high-quality 10 pF Multilayer Ceramic Capacitor designed for demanding electronic applications. Rated for 500V DC with a ±5 % tolerance, this surface mount capacitor utilizes the C0G dielectric, ensuring excellent temperature stability and minimal capacitance change over a wide temperature range.
The capacitor is housed in a 1206 package with dimensions of 3.2 mm length, 1.6 mm width, and 0.94 mm height, making it suitable for compact PCB layouts. It operates reliably between temperatures of -55°C and 125°C, offering durability in various industrial and commercial environments.
These capacitors are well-suited for use in power conversion circuits such as snubbers in high frequency converters, resonators in switch mode power supplies (SMPS), and high voltage coupling or DC blocking roles. The surface mount termination type facilitates automated assembly processes, while the reel packaging enhances manufacturing efficiency.
Manufactured under KYOCERA AVX's Standard series, this capacitor does not comply with automotive-specific standards but adheres to quality and performance expectations required in many electronics sectors. The C0G (NP0) formulation is recognized for its temperature compensating properties, beneficial in precision electronic circuits where capacitance stability is critical.
This capacitor provides stability within ±15% capacitance variation from -55°C to +125°C. High voltage chip design features low equivalent series resistance (ESR) at high frequencies. Packaging in reels aids smooth insertion during mass manufacturing assembly.
Ideal for industrial, commercial, and electronics manufacturing applications. Standard series part without automotive grading suitable for reliable general use.
This KYOCERA AVX Multilayer Ceramic Capacitor offers a compact, reliable solution for engineers and manufacturers requiring precision capacitance and robust performance in surface mount applications. Explore the Electroics Components category on EnvMart for more advanced capacitors and related components.
Explore more products in our Multilayer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 10 pF.
It is rated for a voltage of 500V DC.
The tolerance of this capacitor is ±5 %.
The dimensions are 3.2 mm in length, 1.6 mm in width, and 0.94 mm in height.
The operating temperature range spans from -55°C to 125°C.
It is supplied in reels to improve production efficiency during assembly.
The termination type is surface mount, facilitating easy PCB integration.
No, this capacitor is not designed for automotive use.
The maximum operating temperature is 125°C.
The country of origin for this capacitor is India.
