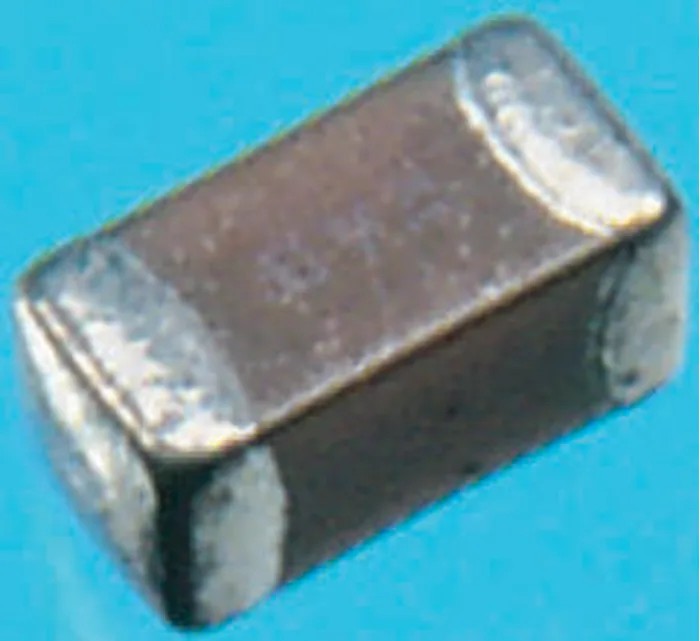

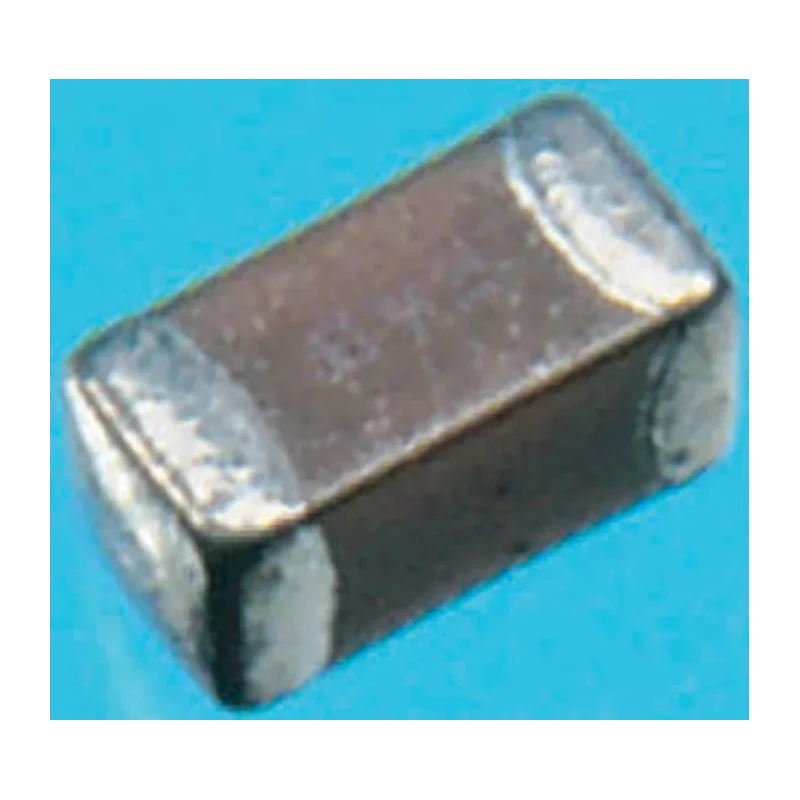

KEMET 6.8 pF Multilayer Ceramic Capacitor 50V DC, 0.25 pF Tolerance, Surface Mount 0603 Package C0603C689C5GACTU

Free Delivery in India | Lowest Global Shipping Charges

KEMET 6.8 pF Multilayer Ceramic Capacitor 50V DC, 0.25 pF Tolerance, Surface Mount 0603 Package C0603C689C5GACTU

Name: KEMET 6.8 pF Multilayer Ceramic Capacitor 50V DC, 0.25 pF Tolerance, Surface Mount 0603 Package C0603C689C5GACTU
Brand: KEMET
SKU: 111738



Category Multilayer Ceramic Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	KEMET
Height	0.8mm
Length	1.6mm
Model	C0603C689C5GACTU
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Construction	Stacked
Series	C
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	0.25 pF
Capacitance	6.8pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Suppression Class	Class II

Key Features

This capacitor features a C0G dielectric construction ensuring temperature stability up to 125°C.
Rated for a maximum operating voltage of 50V DC suitable for precision circuits.
Its dimensions are compact at 1.6mm length, 0.8mm width, and 0.8mm height for easy PCB integration.
The device uses solder termination type and is packaged on tape and reel for efficient manufacturing processes.
Compliance with industry standards IPC-7351, EIA 481, EIA 556, and J-STD-020 ensures reliability.
Tolerance is tightly controlled at 0.25 pF, making it suitable for resonant or timing applications.
Operating temperature range extends from -55°C to +125°C.
Stacked construction and Class II suppression class balance performance and size.

Product Description

KEMET C0603C689C5GACTU is a high precision 6.8 pF multilayer ceramic capacitor designed for surface-mount technology applications. It is rated for 50V DC operation and manufactured with a stable C0G dielectric, ensuring minimal capacitance variation with temperature changes up to 125°C.

Featuring a compact 0603 package (1.6mm x 0.8mm x 0.8mm), this capacitor provides excellent stability and performance in small form factors, ideal for frequency discriminating, resonant circuits, and bypass/decoupling applications where capacitance stability is critical. The capacitors are constructed by stacking ceramic layers and terminated with solder for reliable PCB mounting.

Packaged on tape and reel, it facilitates automated assembly during manufacturing processes. The tolerance of 0.25 pF assures accurate capacitance values which is crucial in precision electronic circuits. It meets multiple standards including IPC-7351, EIA 481, EIA 556, and J-STD-020 ensuring high quality and consistency.

This capacitor is suitable for industrial electronics, telecommunications, instrumentation, and consumer electronic devices where compact, stable, and high-quality passive components are required. Its robust temperature range from -55°C to 125°C ensures dependable operation in harsh environments.

This capacitor features a C0G dielectric construction ensuring temperature stability up to 125°C. Rated for a maximum operating voltage of 50V DC suitable for precision circuits. Compact 0603 package dimensions enable integration in space-constrained PCB designs.

Uses solder termination type and supplied on tape & reel for manufacturing efficiency. Meets IPC-7351, EIA 481, EIA 556, EIA 624, and J-STD-020 industry standards. Capacitance tolerance is 0.25 pF for high accuracy in circuits.

Operating temperature range from -55°C to +125°C ensures performance in diverse conditions. Explore the wide range of KEMET Multilayer Ceramic Capacitors on EnvMart for reliable and precise passive component solutions.
