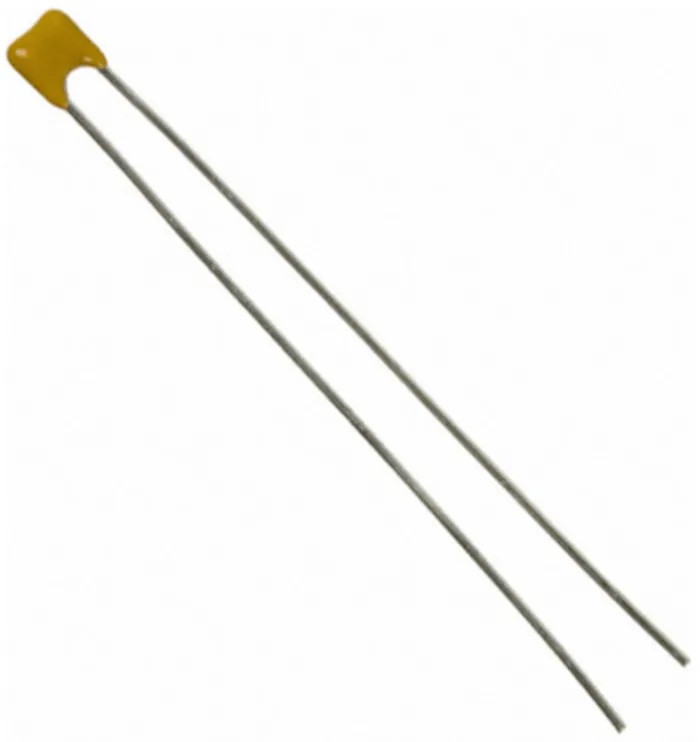

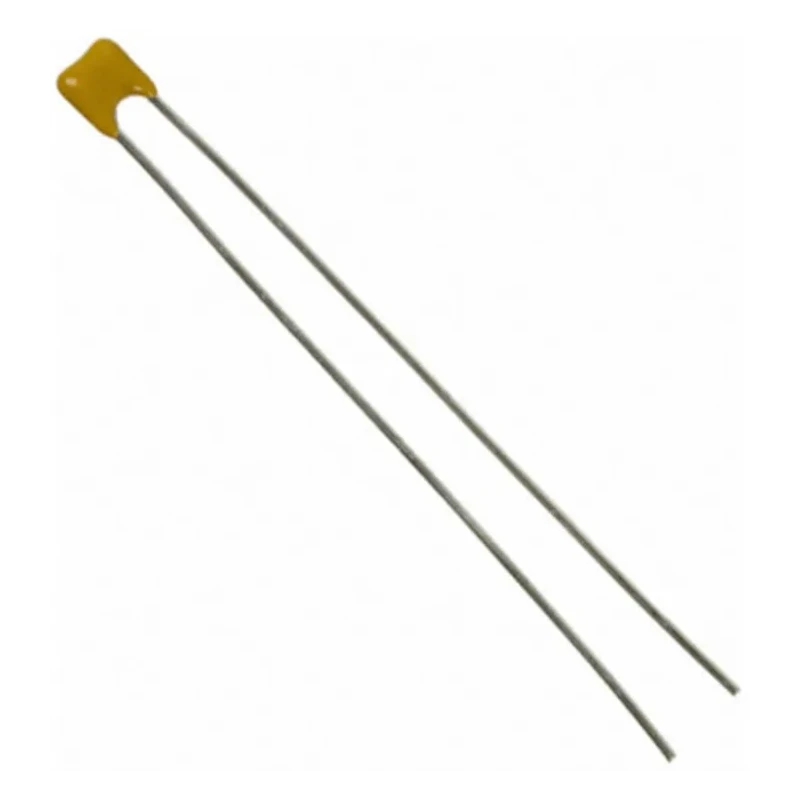

KYOCERA AVX 100 nF 50V dc ±20% Through Hole Radial Multilayer Ceramic Capacitor SR205E104MAR

KYOCERA AVX SR205E104MAR is a high-quality multilayer ceramic capacitor with a capacitance of 100 nF and a voltage rating of 50V dc. Designed as a through hole radial component, it is ideal for various electronic circuits requiring stable capacitance and reliable performance.

This capacitor features a Z5U dielectric, providing typical capacitance characteristics suitable for applications such as bypassing, filtering, and timing within power and signal conditioning circuits. The capacitor is fabricated to meet RoHS standards, ensuring compliance with environmental regulations.

Mount type is through hole with radial termination, allowing for secure soldering on printed circuit boards. The component's dimensions are compact, measuring 5.08 mm in height and length, with 3.18 mm width and 2.5 mm lead spacing, facilitating efficient PCB layout designs. The lead diameter is 0.51 mm, contributing to robust mechanical stability.

Operating temperature ranges from 10°C minimum to 85°C maximum, making this capacitor suitable for typical industrial and commercial electronics, including audio, consumer electronics, and automotive electronic subsystems where automotive standards are not required. It excels in thermal shock and vibration resistance.

Capacitance of 100 nF ensures stable electrical performance. Voltage rating of 50V dc suitable for low voltage circuits. ±20% tolerance provides precision in capacitance value. Through hole radial mount type for easy PCB integration.

Z5U dielectric material for typical electrical characteristics. Operating temperature range from 10°C to 85°C. Radial termination design for reliable soldering and connections. Compact dimensions of 5.08mm height, 5.08mm length, and 3.18mm width.

This capacitor series is widely used in industrial, commercial, and automotive electronic applications where robust ceramic capacitors are required without automotive certification. It suits manufacturing, repair, and prototyping environments that require consistent capacitance and reliability.
