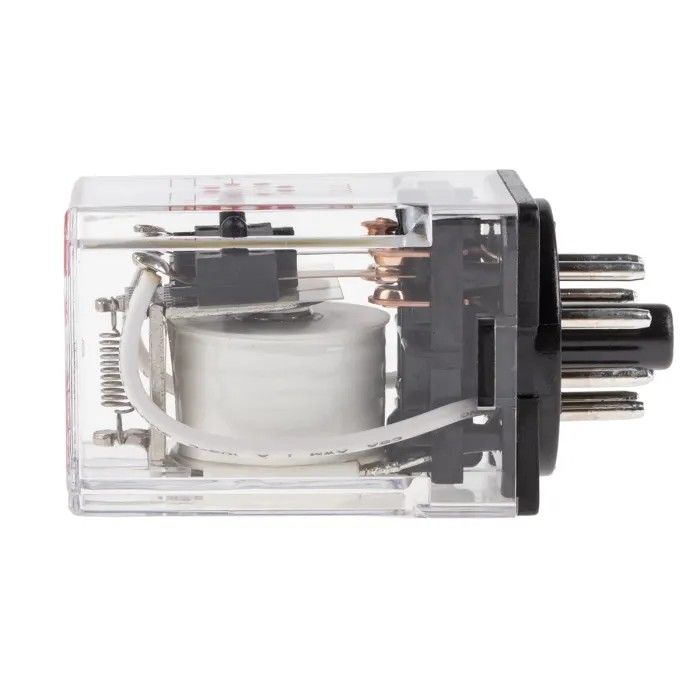

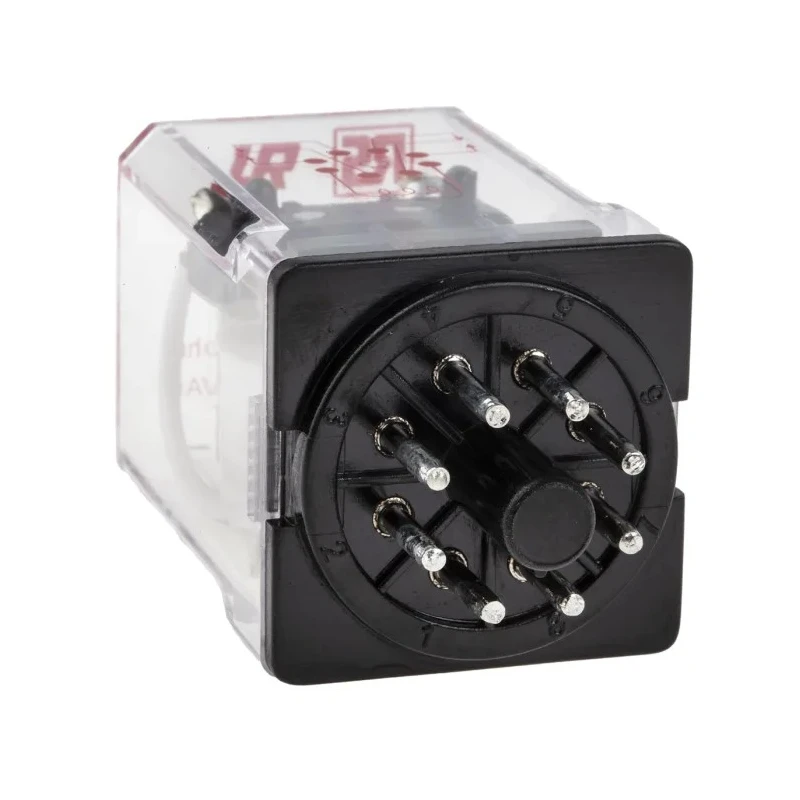

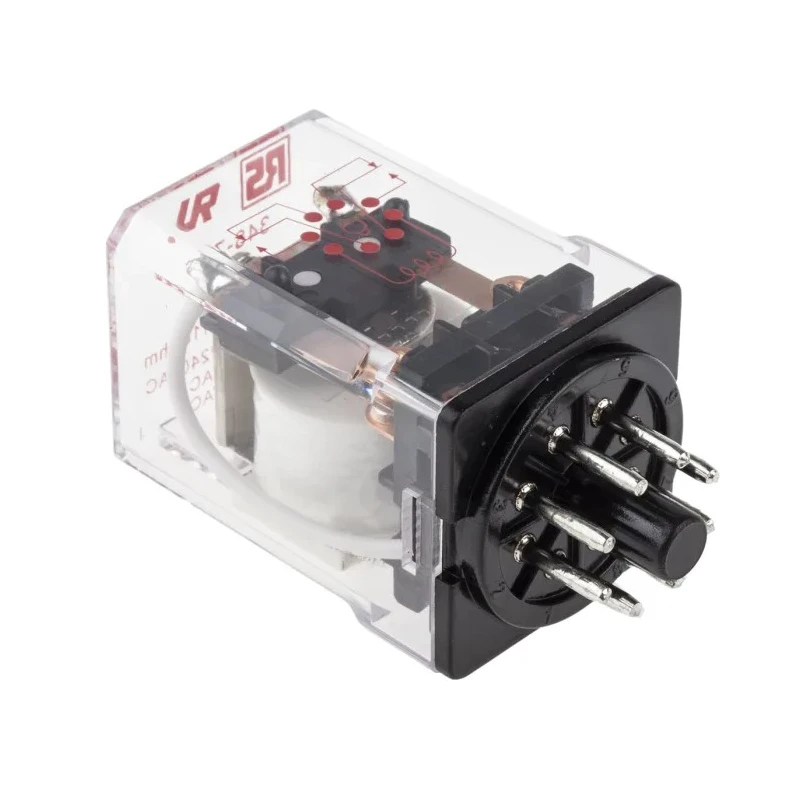

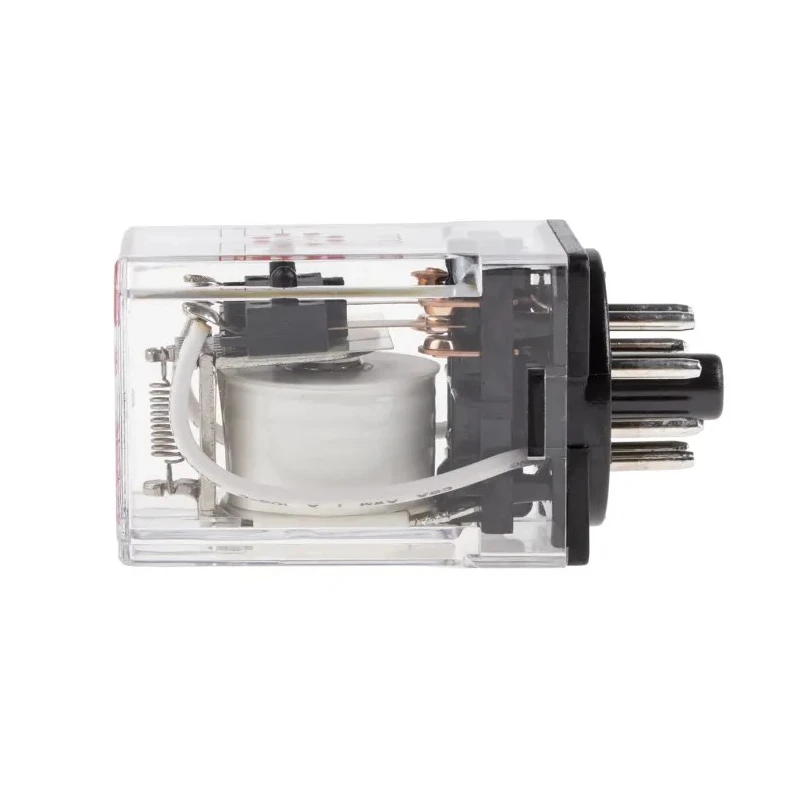

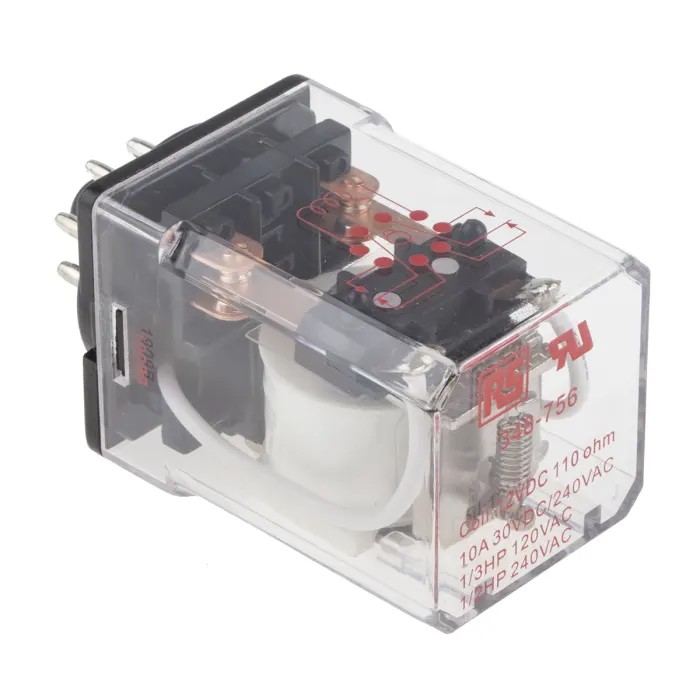

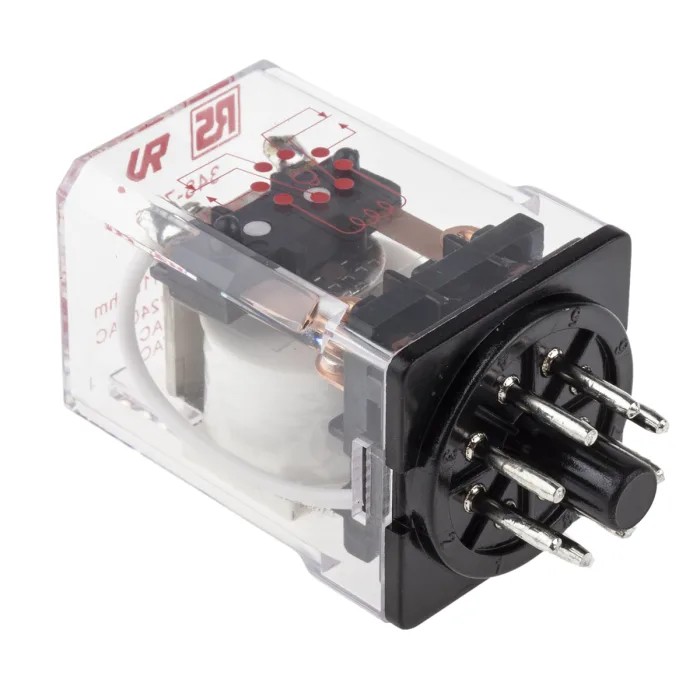

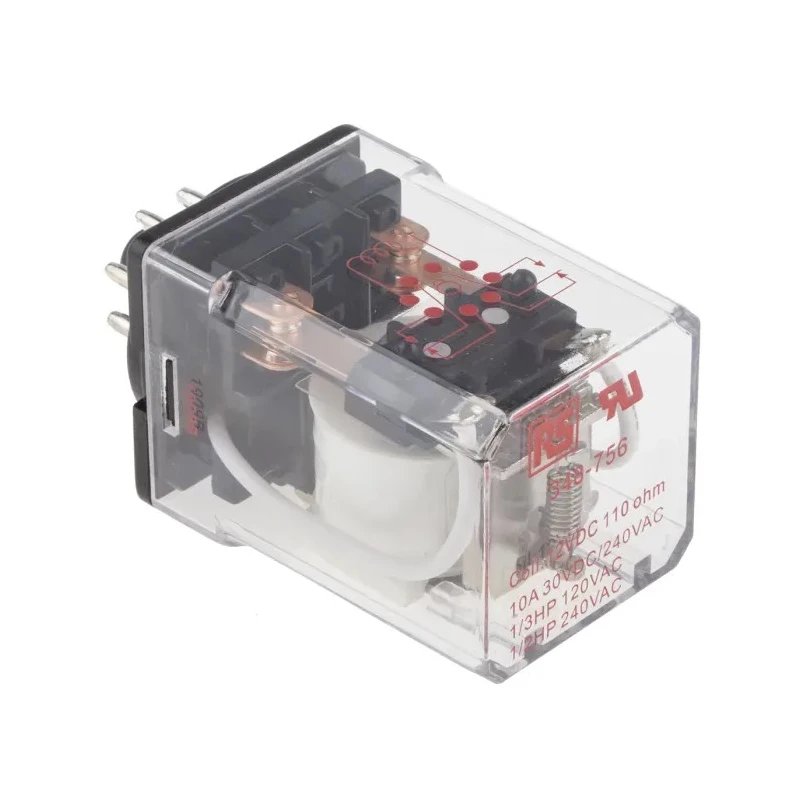

RS PRO Power Relay, 12V dc Coil, 10A Switching Current, DPDT 348-756
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 56mm |
| Length | 35mm |
| Model | 348-756 |
| Width | 35mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | CE, EN, UL |
| Coil Resistance | 120Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 240V |
| Coil Power | 1.2W |
Key Features
- The relay features a transparent polycarbonate cover for protection.
- It supports switching voltages up to 240 V ac and 30 V dc.
- Contact material is silver alloy ensuring reliable performance.
- The coil resistance is 120 ohms with coil power consumption of 1.2 W.
- It operates within a temperature range from -45°C to 65°C.
- Mechanical life is rated at 10^7 operations and electrical life at 10^5 operations minimum.
- Terminal type is solder, allowing secure connections.
- Standards compliance includes CE, EN, and UL certifications.
Product Description
RS PRO 348-756 Power Relay features a 12V dc coil and is designed for 10A switching current in a DPDT (double pole, double throw) configuration. This relay is engineered to provide reliable switching in automotive, industrial, and household environments where a non-latching mechanism is required.
The unit is protected by a transparent polycarbonate cover allowing easy visual inspection while safeguarding internal components. The relay supports maximum switching voltages of 240 V ac and 30 V dc, making it versatile for various electrical loads.
The coil specifications include a resistance of 120 ohms and power consumption of 1.2 W, optimized for efficient operation. The relay dimensions, with a height of 56 mm, width and length each 35 mm, ensure compact mounting in constrained spaces. The terminal type is solder for secure electrical connections.
Operating temperature range is from -45°C up to 65°C, suitable for harsh environmental conditions, while the mechanical and electrical life ratings (10^7 and 10^5 operations respectively) underscore its durability and dependability.
The contact material is silver alloy, providing excellent conductivity and longevity, complying with recognized international standards CE, EN, and UL. This relay is widely applicable in automotive engines, industrial machinery, household appliances, telecommunications and medical devices.
The relay is a DPDT non-latching type providing reliable switching capability. Equipped with a transparent polycarbonate cover for protection and visibility. Supports a maximum switching current of 10A with contact ratings at 240 V ac and 30 V dc.
Compact form factor with 56 mm height, 35 mm width, and 35 mm length dimensions. Coil resistance of 120 ohms and consumption of 1.2 W ensures efficient energy use. Operates within wide temperature range from -45°C to 65°C for robustness.
Contact material silver alloy offers enhanced conductivity and endurance. Designed for solder terminal connections ensuring secure electrical contact. Meets CE, EN, and UL standards for safety and performance. Applications span automotive, industrial machinery, medical, household, and telecom sectors.
Explore the Electronics & Electricals category on EnvMart for more Power Relays and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current rating of 10A.
It supports maximum switching voltages of 240V AC and 30V DC.
The coil voltage is 12V DC with a power consumption of 1.2W.
It operates within a temperature range from -45°C to 65°C.
The relay features a DPDT (double pole, double throw) contact configuration.
The contact material is silver alloy, ensuring reliable performance.
The relay has dimensions of 56mm in height, 35mm in width, and 35mm in length.
It uses solder type terminals for secure electrical connections.
The mechanical life is rated at 10^7 operations minimum.
This relay complies with CE, EN, and UL certifications.
It is suitable for applications in automotive, industrial machinery, household appliances, telecommunications, and medical devices.
The electrical life is rated at 10^5 operations minimum.
