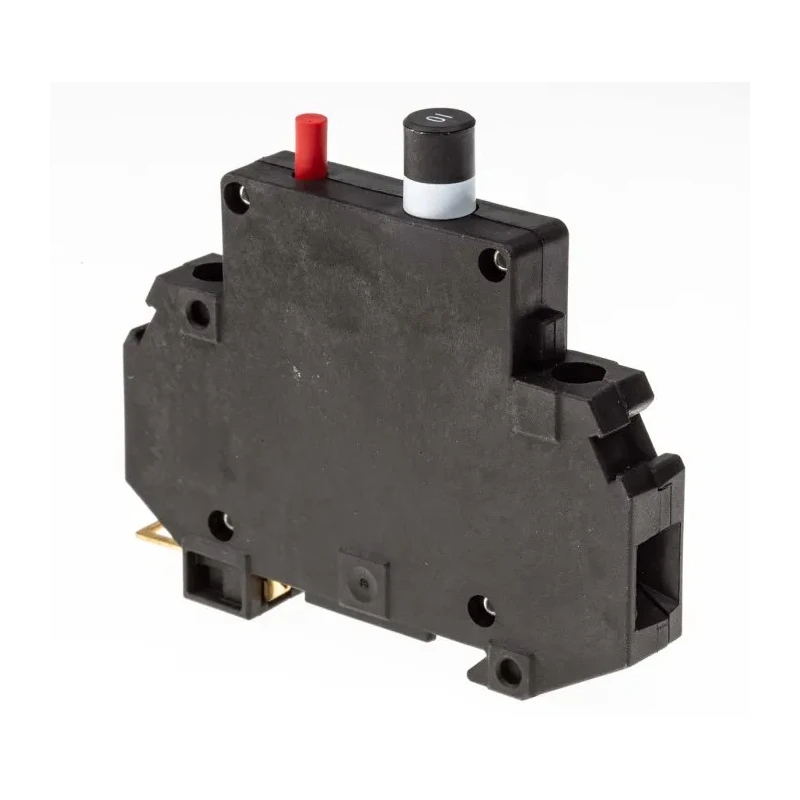

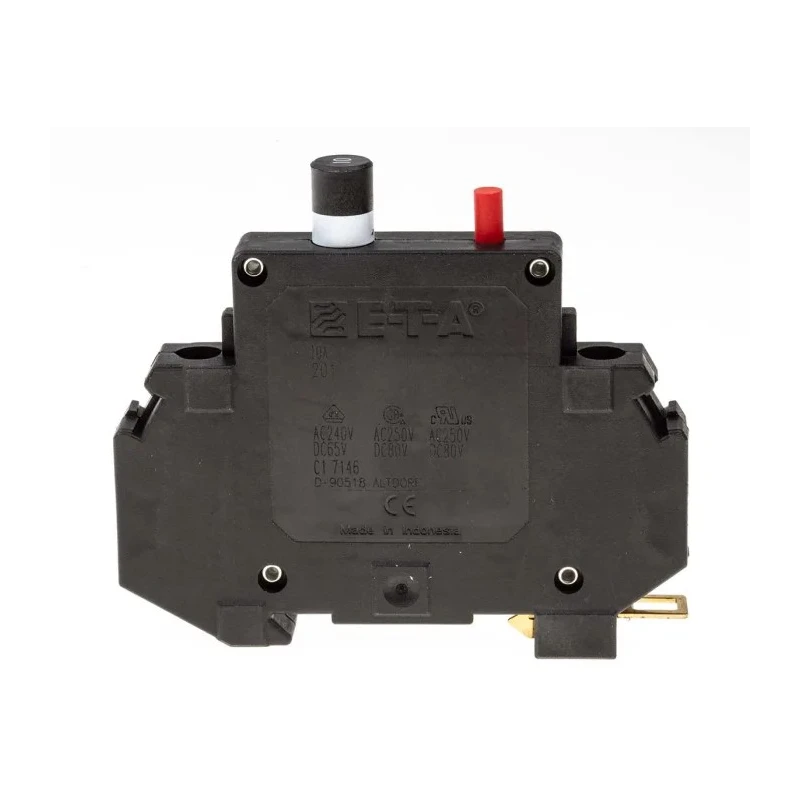

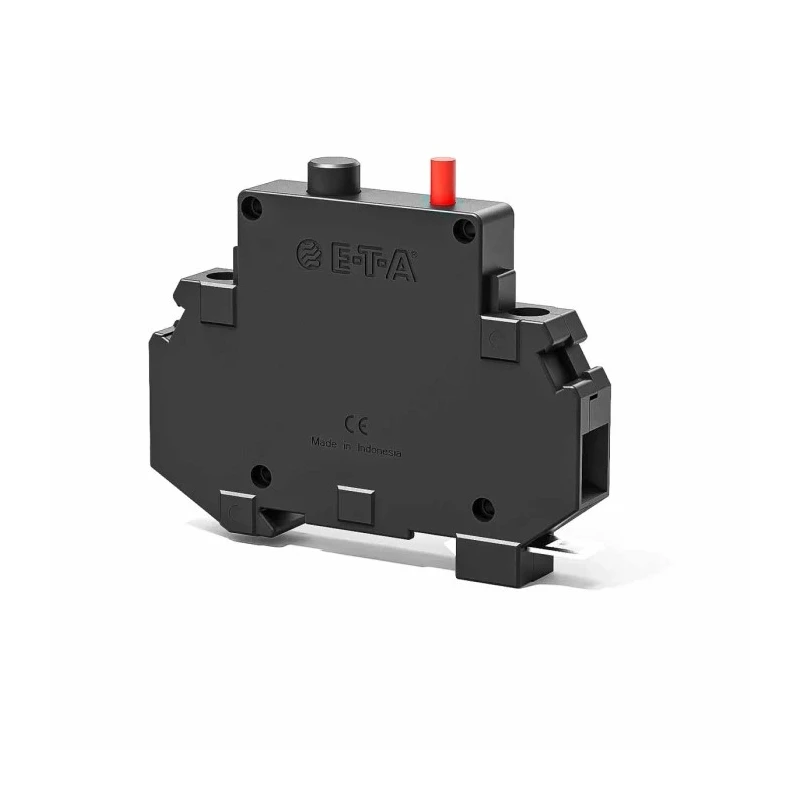

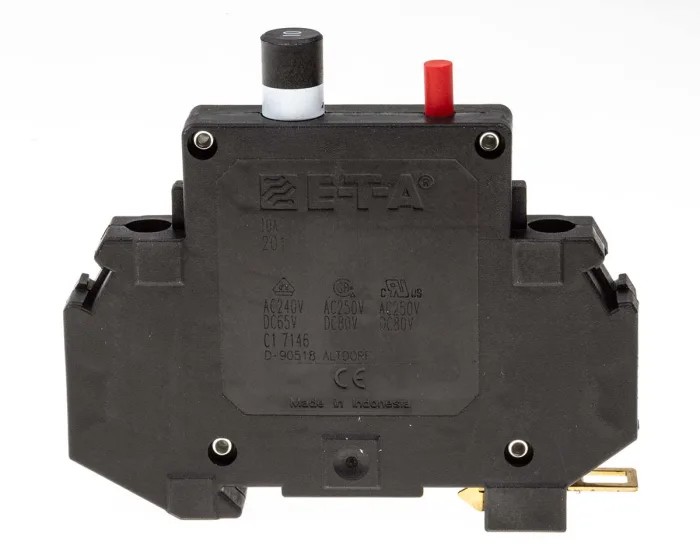

ETA Thermal Magnetic Circuit Breaker 10A Current Rating 1-Pole DIN Rail Mount 201 Series 201-10A

ETA 201-10A Thermal Magnetic Circuit Breaker from the 201 series features a 10 amp current rating in a single-pole configuration suitable for DIN rail mounting. Designed to provide professional grade overload and short circuit protection, it integrates a thermal magnetic tripping mechanism ensuring reliable and finely tuned performance for electrical installation safety.

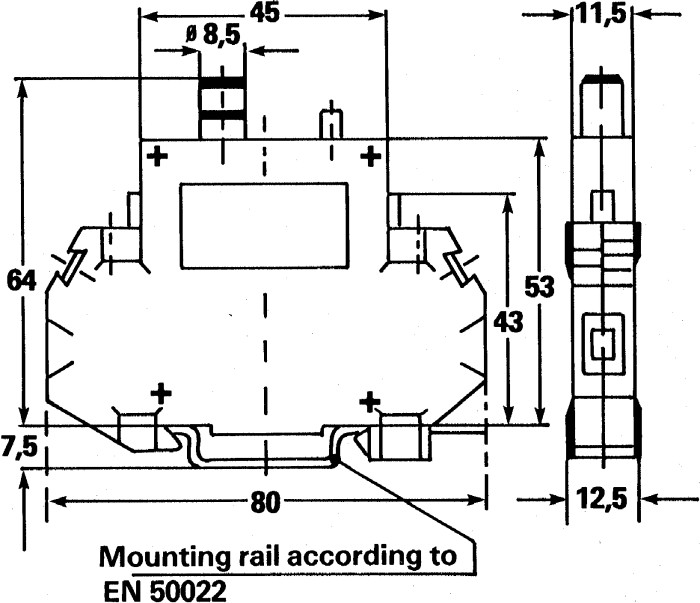

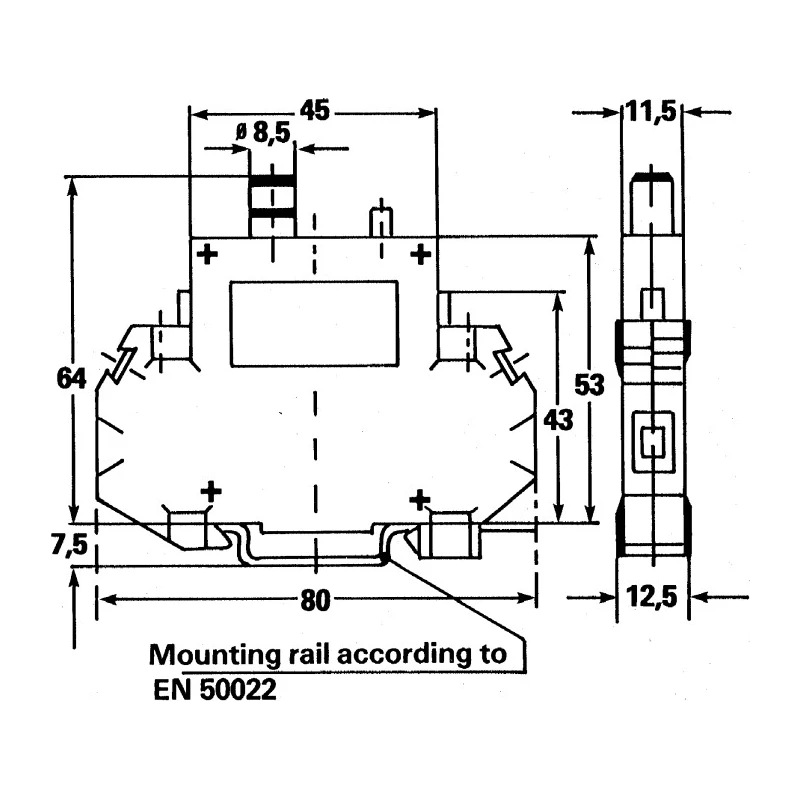

This compact device measures 64 mm in height and 80 mm in width with a narrow 12.5 mm wide body compared to standard miniature circuit breakers. The recessed terminal design enhances connection safety, and the 8.5 mm mount hole size ensures robust attachment to standard DIN rails as per IEC standards.

The breaker is certified by multiple international approval bodies including CSA, BV, LROS, UL, ABS, DEMKO, and VDE, guaranteeing compliance with safety and quality benchmarks. Rated for 250V AC and 65V DC operation, it accommodates a breaking capacity of 200A, suitable for a wide range of industrial, commercial, and residential electrical protection applications.

The twin button operation simplifies manual resetting with a black reset button and a red trip indicator for quick fault identification. The trip-free and tease-free operation mechanisms add extra protection by preventing manual override during fault conditions.

Commonly installed in industrial control panels, automation systems, manufacturing facilities, and electrical distribution boards, this thermal magnetic circuit breaker ensures system reliability while optimizing space on DIN rails.

Single-pole circuit breaker suitable for modular DIN 43 880 enclosures. Thermal magnetic tripping mechanism offers precise overload protection. Compact width of 12.5 mm allows efficient use of DIN rail space. Approved for 250V AC and 65V DC rated voltages.

Breaking capacity up to 200A ensuring high fault current interruption. Twin button operation with black reset and red trip indicators. Trip-free operation prevents manual override during fault conditions. Recessed terminal type enhances safety during wiring.

Mount hole size is 8.5 mm for secure DIN rail installation. Height of 64 mm and width of 80 mm provide compact form factor.

This product is ideal for rigorous electrical protection requirements in manufacturing plants, commercial buildings, water treatment facilities, HVAC systems, and testing laboratories. Selecting ETA ensures high quality and dependable safety for electrical circuits.
