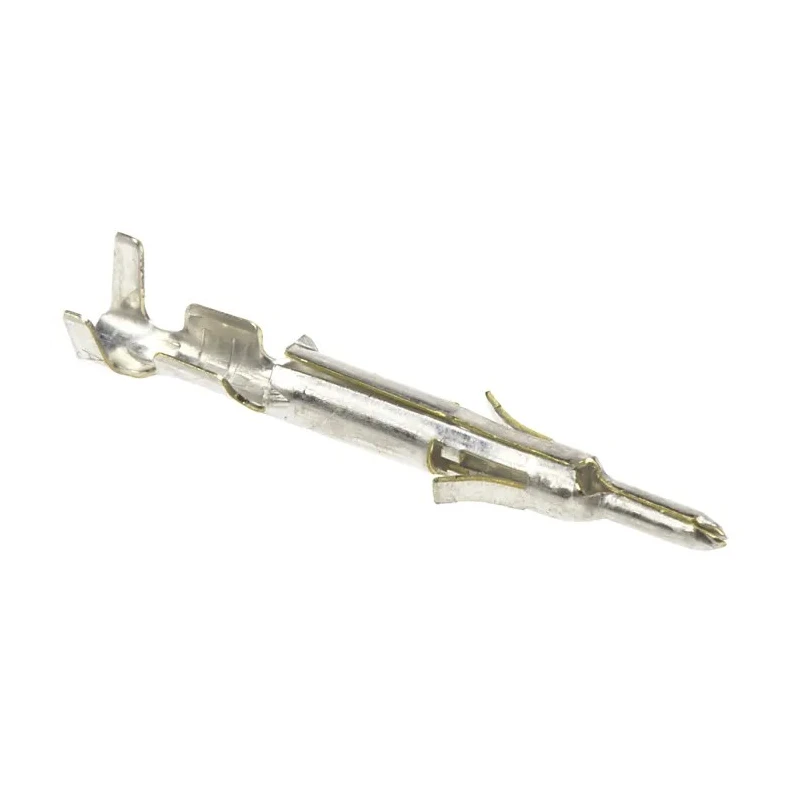

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current, 26 AWG Min, 22 AWG Max 170363-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170363-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from high-quality brass material with tin plating for corrosion resistance.
- Designed for use with Mini-Universal MATE-N-LOK Connector Housing ensuring reliable electrical connections.
- Supports a maximum operating voltage of 600 Vac/dc suitable for various electronic applications.
- Crimp termination type provides durable and secure wire connection.
- Operates reliably within temperature range of -20°C to 105°C.
- Ideal for electronics, commercial, HVAC, power supplies, portable devices, lighting, medical, and security industries.
- Precision manufactured to maintain a maximum contact resistance of 10 milliohms.
Product Description
TE Connectivity 170363-1 is a male crimp terminal from the Mini-Universal MATE-N-LOK series, designed for reliable electrical connections in demanding industrial and commercial applications. It supports a current rating of 7 amperes and accommodates wire sizes ranging between 26 AWG minimum and 22 AWG maximum, making it suitable for diverse wiring requirements.
The terminal is made from high-grade brass with a pre-tin plated finish, which enhances its conductivity and resists corrosion over time. This crimp terminal is intended to be used with the Mini-Universal MATE-N-LOK Connector Housing system, ensuring secure and efficient mate-and-lok electrical connections.
With a maximum operating voltage of 600 Vac/dc, this component is well-suited for use in consumer electronics, commercial devices, HVAC systems, power supplies, portable instruments, lighting applications, medical equipment, and security devices. The crimp termination offers robust mechanical and electrical performance, maintaining consistent contact resistance at a maximum of 10 milliohms.
Operating reliably in temperature ranges from -20°C to 105°C, the 170363-1 terminal is engineered for durability in varying environmental conditions. Its precise design, combined with high-quality material choice, ensures dependable performance in industrial and laboratory settings.
Constructed from brass with tin plating for corrosion resistance. Supports wire sizes from 26 AWG (0.1 mm²) to 22 AWG (0.35 mm²). Rated for 7A current and 600 Vac/dc voltage operation. Crimp termination provides secure and efficient electrical connection.
Durable over an operating temperature range from -20°C to 105°C. Designed for compatibility with Mini-Universal MATE-N-LOK connector housings. Ideal for use in electronics, commercial, HVAC, medical, and security systems.
This terminal is an essential component for professionals in electronics manufacturing, industrial assembly, and engineering, offering reliable connectivity and long-term performance. For more specialized connectors and accessories, explore categories like PCB Connectors and Wire Housings at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 7 amperes, making it suitable for various electronic applications.
It accommodates wire sizes ranging from 26 AWG (0.1 mm²) minimum to 22 AWG (0.35 mm²) maximum.
The terminal supports a maximum operating voltage of 600 Vac/dc, suitable for a range of electronic devices.
It is constructed from high-grade brass with a tin plating, which enhances conductivity and provides corrosion resistance.
It operates reliably within a temperature range of -20°C to 105°C, suitable for various environmental conditions.
This crimp terminal is designed for use with the Mini-Universal MATE-N-LOK Connector Housing, ensuring secure connections.
It features a crimp termination type, providing a durable and secure wire connection.
The maximum contact resistance is maintained at 10 milliohms, ensuring efficient electrical performance.
It is ideal for use in electronics, commercial, HVAC, medical, and security systems, among others.
This model is a male crimp terminal, designed for specific connectivity applications.
The country of origin for this terminal is China.
The model number for this terminal is 170363-1, part of the Mini-Universal MATE-N-LOK series.
