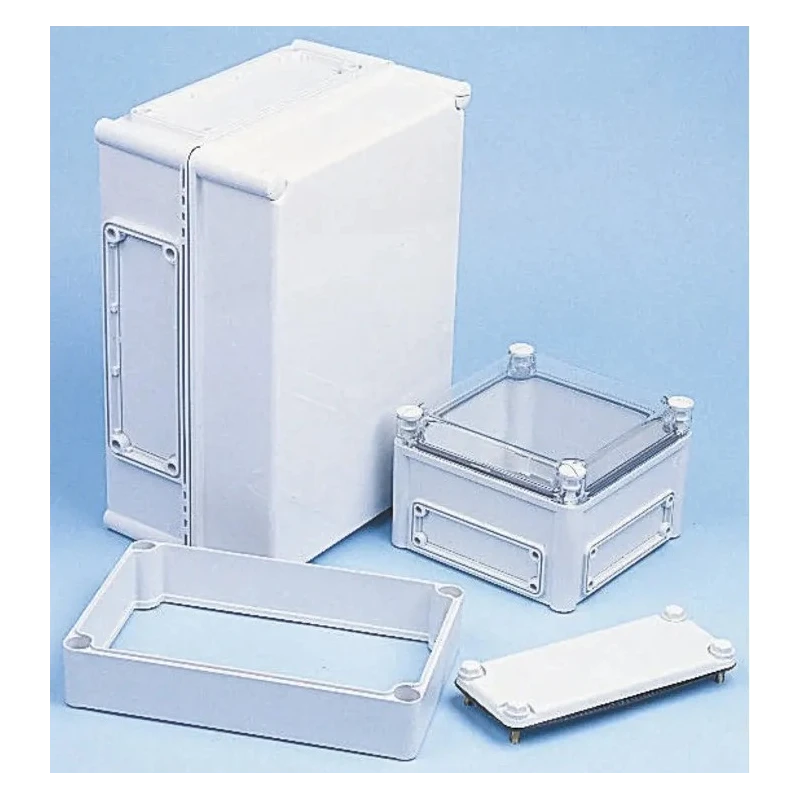

Fibox Flanged EK Series Grey Transparent Lid Polycarbonate Enclosure IP66 IP67 IK08 130 mm x 190 mm x 190 mm

Fibox EKHA 130 T ENCLOSURE is a flanged polycarbonate enclosure from the EK series, designed for reliable protection of electrical and automation equipment. Featuring a grey-colored body and a transparent lid, this enclosure meets high ingress protection standards IP66 and IP67, ensuring excellent resistance against dust, water, and other environmental factors. It is impact resistant with an IK08 rating on side surfaces and IK09 on the front surface, providing robust mechanical protection.

The enclosure material is a durable, self-extinguishing polycarbonate that withstands most acids and alkalis, with an operational temperature range of -40°C to +120°C (continuous use up to +80°C). The PUR/EPDM gasket material provides an effective seal, enhancing the enclosure's resistance to harsh environments. UL94-V2 flammability rating ensures safety compliance.

This model measures 130 mm in height, 190 mm in width, and 190 mm in length, suitable for compact installations in industrial, manufacturing, laboratory, and HVAC sectors. The transparent lid allows for easy monitoring of housed equipment without opening the enclosure. Additional accessories such as gland plates for cable entry and extension frames for increased enclosure height (+50 mm) are available separately to cater to specific installation needs.

Fibox enclosures comply with multiple international standards including UL Type 1, 3, 3S, 4, 4X, 6, 6P, 12 for USA, cUL for Canada, and EN 62208:2003 for Europe. They are RoHS compliant and halogen-free, ensuring environmentally safe use. Originating from Finland, this enclosure combines durability, versatility, and industry compliance for diverse electrical housing applications.

Constructed from impact-resistant, self-extinguishing polycarbonate material. Provides excellent protection with IP66 and IP67 ratings against dust and water ingress. Equipped with IK08 impact resistance for side surfaces and IK09 for the front surface.

Dimensions of 130 mm height, 190 mm width, and 190 mm length ensure compact housing. Features a transparent lid for visual inspection and a grey body for durability. PUR/EPDM gasket ensures secure sealing and protection against harsh chemicals.

Suitable for housing electrical or automation equipment in industrial applications. Operating temperature range from -40°C to +120°C, allowing for continuous use up to +80°C. RoHS compliant, halogen-free and UV-resistant polycarbonate material.

Optional gland plates and extension frames available separately for customization. Explore more from the Fibox EK series enclosures at EnvMart for versatile electrical housing solutions.
