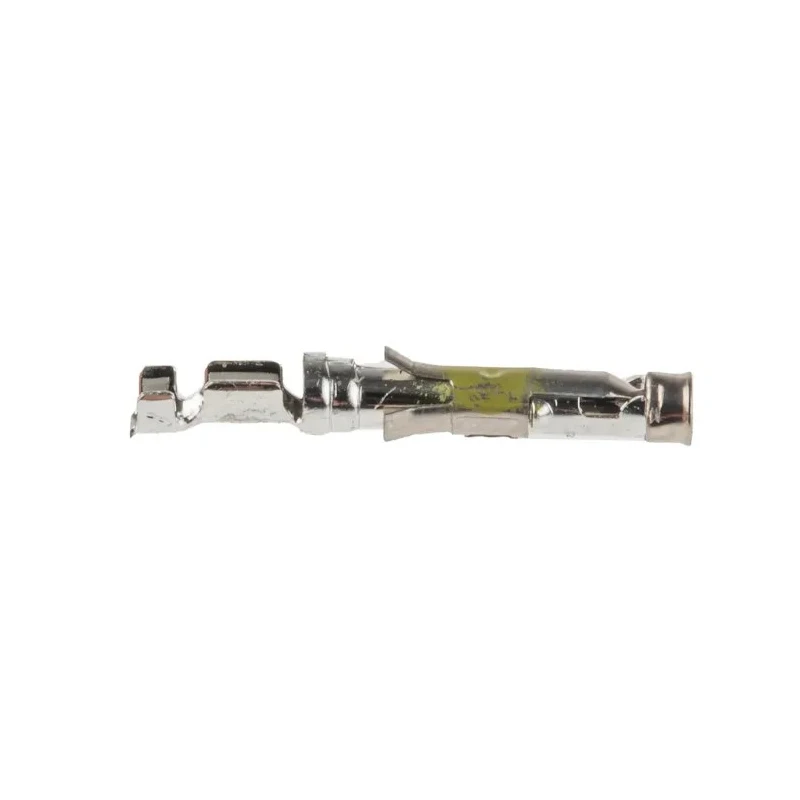

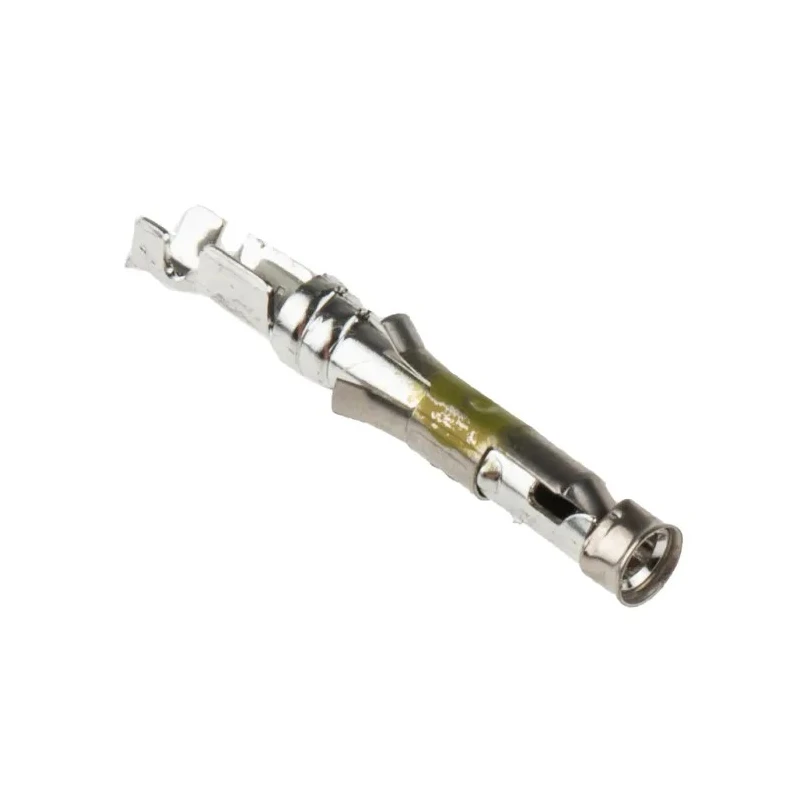

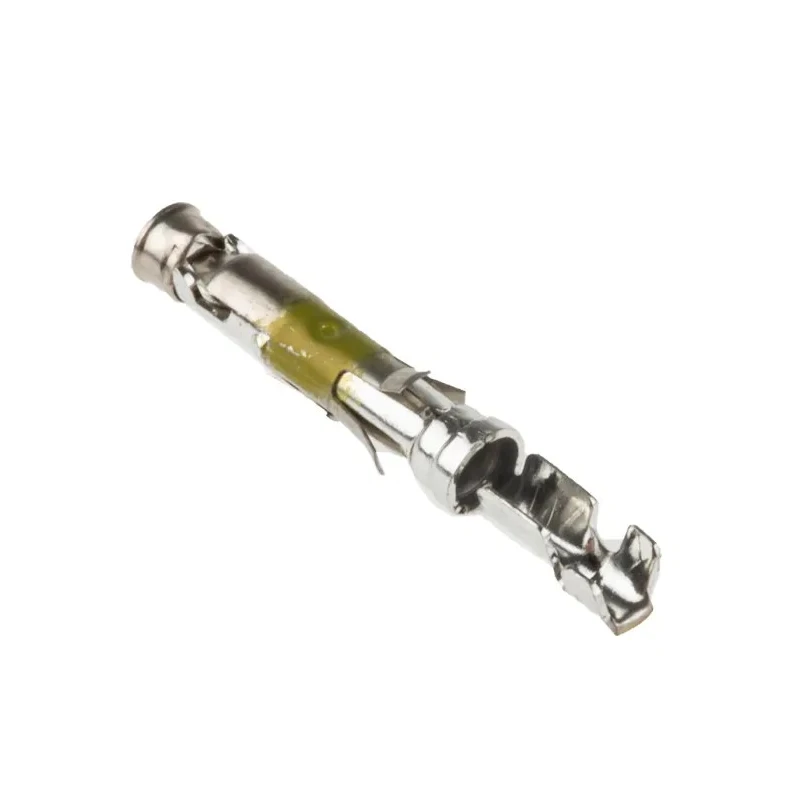

TE Connectivity Female Crimp Circular Connector Contact, Contact Size 16, Wire Size 20 AWG to 24 AWG, 13A, 250V 1-66105-9
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Current | 13A |
| Gender | Female |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 90°C |
| Contact Type | Signal |
| Minimum Operating Temperature | -55°C |
| Wire size | 20, 24AWG |
| For Use With | Type III + Series Connectors |
| Contact Plating | Tin over Nickel |
| Contact Size | 16 |
Key Features
- Constructed from brass material with tin over nickel plating for durability and corrosion resistance.
- Designed for crimp termination ensuring strong physical and electrical contact.
- Supports a current rating of 13 amperes and voltage rating of 250 volts.
- Operates reliably between -55°C and 90°C making it suitable for harsh environments.
- Compatible with Type III and Type III+ series circular connectors.
- Provides signal contact functionality for various electronic and power connector applications.
- Manufactured in Mexico under strict quality controls.
- Proper assembly yields an IP65-rated sealed connection with included seals and backshell when used.
Product Description
TE Connectivity 1-66105-9 female crimp circular connector contact is engineered for high-quality, reliable electrical connections in demanding industrial and electronic system applications. With a contact size of 16 and wire size range from 24 AWG to 20 AWG, this connector contact supports a current rating of 13A and voltage up to 250V, suitable for signal transmission within circular connector assemblies.
Made from brass and plated with tin over nickel, it offers enhanced corrosion resistance and electrical conductivity. The crimp termination type ensures a secure and stable mechanical and electrical connection.
The contact performs reliably in temperatures ranging from -55°C minimum to 90°C maximum, fitting various environmental conditions prevalent in industrial, manufacturing, and electronic equipment settings.
This contact is designed to be used with TE Connectivity's Type III and Type III+ series connectors, including CPC connectors, G series, and M series, providing versatility and ease of integration.
To achieve a full IP65 rating, the correct assembly procedures must be followed, incorporating wire entry seals and flange seals with panel sockets as necessary for environmental sealing.
Constructed with brass contact material for strength and conductivity. Tin over nickel plating provides effective corrosion protection. Crimp termination enables solid mechanical and electrical bonding of wires. Rated for 13 amperes current and 250 volts operational voltage.
Wide operating temperature range from -55°C to 90°C. Compatible with Type III and Type III+ series circular connectors. Manufactured with quality standards in Mexico. Designed for signal contact applications within complex industrial equipment.
This product is ideal for sectors including electronics manufacturing, power distribution equipment, industrial automation, and transportation systems requiring reliable, sealed circular connector solutions.
Explore more TE Connectivity Circular Connector Contacts and related components within our Electronics Components category at EnvMart, your trusted source for industrial and electronic connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector contact supports a maximum current rating of 13 amperes.
It has a voltage rating of 250 volts.
This contact is compatible with wire sizes ranging from 20 AWG to 24 AWG.
It operates reliably within a temperature range of -55°C to 90°C.
It is designed for use with Type III and Type III+ series circular connectors.
The contact is constructed from brass and features tin over nickel plating for enhanced corrosion resistance.
This model uses a crimp termination type, ensuring a secure connection.
It provides signal contact functionality for various electronic and power connector applications.
To achieve a full IP65 rating, proper assembly with wire entry seals and flange seals is necessary.
It is manufactured in Mexico under strict quality controls.
It is suitable for applications in electronics manufacturing, power distribution equipment, industrial automation, and transportation systems.
The contact size for this model is 16.
