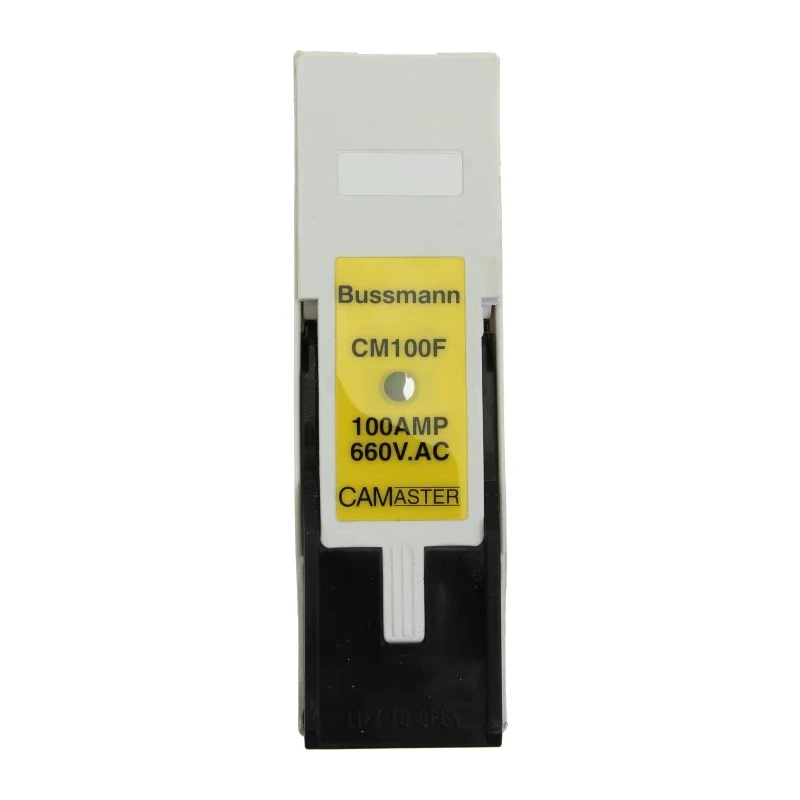

Eaton 100A Rail Mount Fuse Holder for F1 Compatible Fuse Size, 1 Pole, 690V AC CM100FW

Eaton CM100FW rail mount fuse holder is a robust electrical component designed for 100A current at 690V AC to ensure reliable circuit protection in industrial and commercial electrical installations. It accommodates F1 size British standard fuse links and features a single pole (1P) configuration for DIN 35 mm rail mounting.

This fuse holder is part of Eaton's CAMaster series known for fully shrouded HRC fuse holders with a cam that enhances contact pressure between the fuse carrier and base, thereby improving electrical performance and safety. The hinged internal shields fully enclose live parts, preventing accidental contact during installation and maintenance.

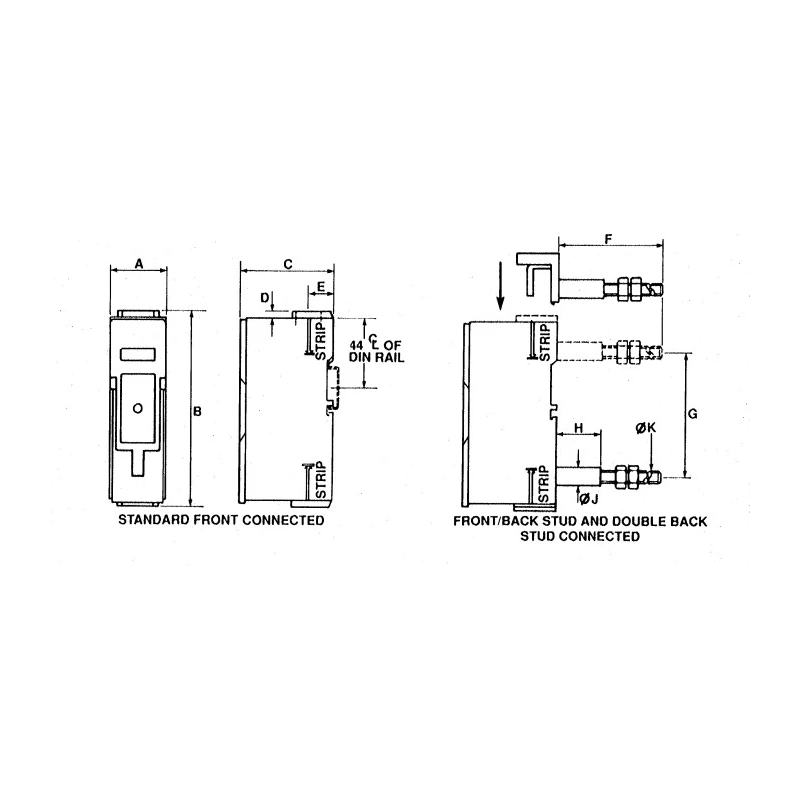

The modular design supports 2 and 3 pole ganging, facilitating simultaneous isolation of multiple electrical circuits, which is crucial for safety during maintenance. Its front connection type can be converted to back stud or double back stud by using optional accessories, offering installation flexibility.

Cable terminations use stainless steel saddles and hardened termination screws for firm clamping and resistance against cable pull-out forces. These screws are captive with hinges and pre-backout positioning for ease of installation and to prevent loss during handling.

The fuse holder comes with a marking label to clearly identify circuits and is compatible with neon clip-in indicator accessories, simplifying fuse status monitoring. This device is ideal for integration in industrial automation, manufacturing, electrical distribution panels, commercial building installations, and HVAC systems, enhancing operational safety and circuit reliability.

Supplied as new and manufactured to meet IEC 60269 standards, this fuse holder provides dependable performance and long-term durability. Its compatibility with British standard fuse links and DIN rail mounting makes it suitable for a wide array of applications requiring high-quality circuit protection.

Compatible with F1 size British standard fuse links. Single pole 1P design supports DIN 35 mm rail mounting. Fully shrouded with hinged internal shields for enhanced safety. Cam mechanism improves contact pressure and electrical performance.

Front connected with optional back stud accessory for versatile installation. Stainless steel saddles and hardened screws ensure secure cable termination. Modular design allows 2 or 3 pole ganging for circuit isolation. Marking label and compatibility with neon clip-in indicators aid circuit identification.

Durable construction suitable for industrial and automation applications. Explore more Fuse Holders and circuit protection devices to enhance your electrical installations with reliable Eaton components on EnvMart.
