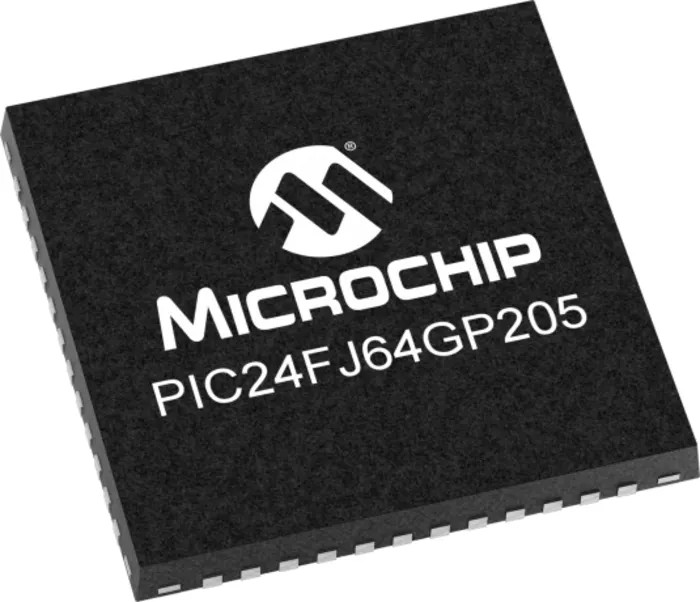

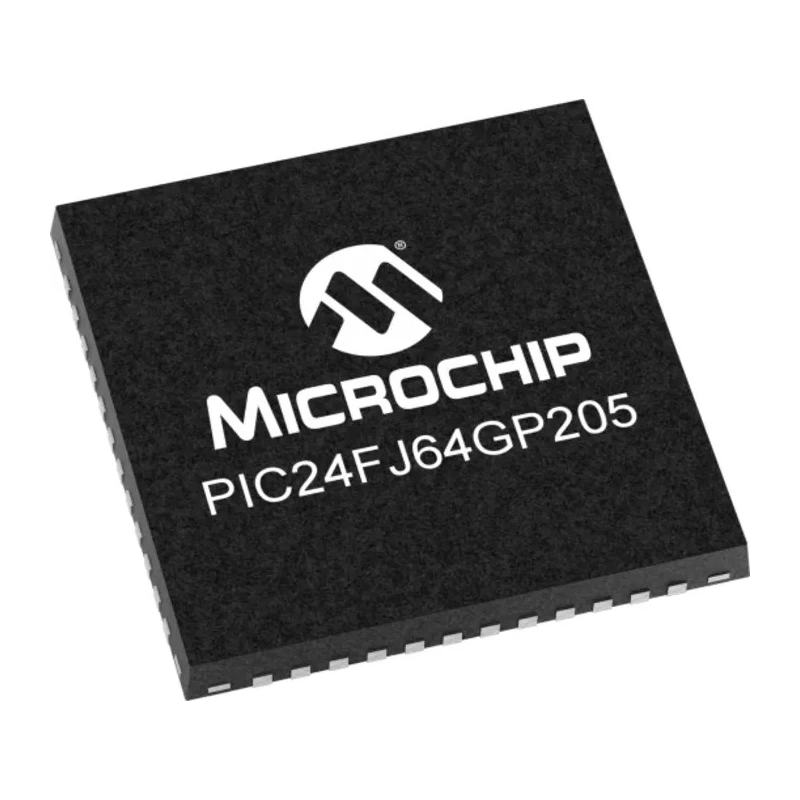

Microchip 16-bit PIC24FJ G Microcontroller 32 MHz, 64kB FLASH, 48-Pin UQFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.9mm |
| Length | 6mm |
| Model | PIC24FJ |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC24FJ G |
| Maximum Operating Temperature | 85°C |
| Package Type | UQFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 39 |
| Analogue Comparators | 3 |
| Number of Timers | 4 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Operates with a maximum clock frequency of 32 MHz for efficient processing.
- Equipped with 64kB of flash memory and 8kB RAM for robust application support.
- Features a 16-bit data bus and Harvard architecture for optimized performance.
- Supports 39 programmable I/O pins enabling versatile connectivity.
- Includes peripherals like 5-bit DACs, 3 analogue comparators, and 4 timers.
- Implemented in a compact 6mm x 6mm x 0.9mm UQFN surface-mount package.
- Wide operating voltage range from 2.5V to 5.5V and temperature range from -40°C to 85°C.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Microchip PIC24FJ64GP205-I/M4 is a 16-bit PIC microcontroller designed for a broad range of embedded applications requiring efficient processing at 32 MHz clock speed. It includes 64kB of FLASH program memory with ECC protection and 8kB of RAM, housed in a compact 48-pin UQFN package with dimensions 6mm by 6mm and a profile height of 0.9mm. This surface-mount device operates within a voltage range of 2.5V to a maximum of 5.5V and covers a temperature range from -40°C to 85°C.
The device features 39 programmable input/output pins, 12-bit ADCs, 3 analogue comparators, and 5-bit DAC capabilities, along with 4 hardware timers. Its Harvard instruction set architecture and flash memory type enable robust program execution with code protection mechanisms such as Code Guard™ Flash. The microcontroller is RoHS compliant and supports ultra-low-power modes facilitating battery-operated and portable device designs.
This microcontroller is suitable for industrial, automotive (non-automotive certified), consumer electronics, and embedded system applications where efficient computation and advanced analog features are needed.
Operates at a maximum frequency of 32 MHz for swift processing requirement. Incorporates 64kB ECC flash memory and 8kB high-speed RAM. Contains 12-bit ADCs, 5-bit DACs, 3 analogue comparators, and 4 timers for diverse peripheral interface.
Compact 48-pin UQFN surface-mount package with small form factor of 6mm x 6mm x 0.9mm. Supports wide supply voltage ranging from 2.5V to 5.5V for flexible power designs. Wide operating temperature range suitable for industrial environments: -40°C to 85°C.
RoHS compliant for environmentally safe applications. Explore the Microcontroller selection at EnvMart for advanced PIC24FJ series Microcontrollers suitable for embedded system designers, with extensive documentation and support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for efficient processing capabilities.
This model features 64kB of FLASH program memory, which includes ECC protection for enhanced reliability.
It supports 39 programmable input/output pins, providing versatile connectivity options for various applications.
The microcontroller is housed in a compact UQFN package with dimensions of 6mm x 6mm and a height of 0.9mm.
The operating voltage range is from 2.5V to 5.5V, allowing for flexible power design options.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
This microcontroller includes peripherals such as 12-bit ADCs, 5-bit DACs, 3 analogue comparators, and 4 timers.
It utilizes a Harvard instruction set architecture, which helps optimize performance.
Yes, this microcontroller is RoHS compliant, ensuring it meets environmental safety standards.
This model is equipped with 8kB of RAM, supporting robust application requirements.
It features 4 hardware timers, which can be utilized for various timing applications.
It is suitable for industrial, automotive (non-automotive certified), consumer electronics, and embedded system applications.
