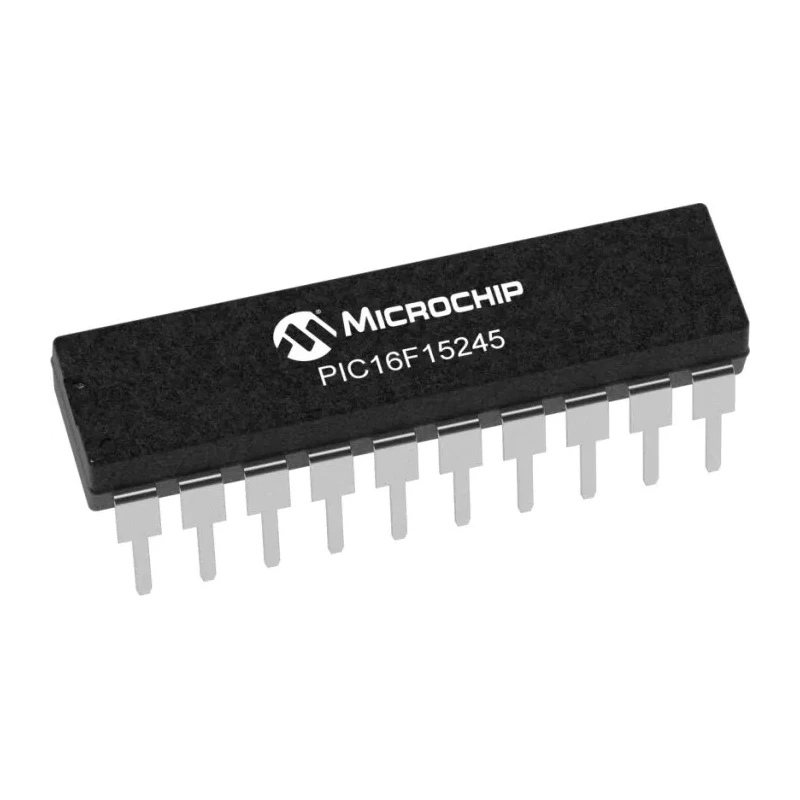

Microchip 8-bit PIC12F Microcontroller 14kB FLASH 32MHz 20-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2mm |
| Length | 15.24mm |
| Model | PIC12F |
| Width | 7.62mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 17 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Operates with a maximum supply voltage of 5.5V for flexible power input options.
- Equipped with 10-bit ADCs and 5-bit DACs for precise analog signal processing.
- Features 17 programmable I/O pins allowing versatile interface capabilities.
- Supports Core Independent Peripherals and multiple communication modules.
- Enclosed in a 20-pin PDIP surface mount package suitable for various circuit designs.
- Wide operating temperature range from -40°C to 85°C ensuring reliability in diverse environments.
- Utilizes RISC architecture supporting efficient instruction execution.
- Supplied with 1kB RAM enabling effective data handling.
Product Description
Microchip PIC16F15245-I/P is an 8-bit PIC microcontroller belonging to the PIC12F series, featuring a 14kB FLASH memory and a maximum clock frequency of 32 MHz. Engineered with Core Independent Peripherals and Intelligent Analog modules, it offers a robust solution for low power applications in multiple industries.
The device supports an extensive feature set including 10-bit ADCs, 5-bit DACs, and 17 programmable I/Os, enclosed within a 20-pin PDIP surface mount package. Its operating voltage ranges from 2.5V to 5.5V, making it suitable for a variety of embedded system projects.
This microcontroller supports advanced functionalities like multiple timers, PWM outputs, and communication interfaces including SPI and I2C via MSSP modules. The internal temperature sensor and Memory Access Partition enhance system monitoring and memory usage efficiency, respectively.
The operating temperature range of -40°C to 85°C ensures performance stability in industrial, automotive, and consumer electronics environments. Its RISC instruction architecture enables efficient processing and power management for embedded systems.
Designed to comply with RoHS standards, the PIC16F15245-I/P promotes environmentally conscious product development whilst maintaining high reliability. Operates on a 32 MHz clock for high-speed processing. Includes 14kB of Flash memory for program storage.
Provides 1kB RAM for data processing. Equipped with 17 programmable I/Os for extensive interfacing. Supports 10-bit ADCs and 5-bit DACs for analog functionality. Features two timers and PWM capabilities for control applications.
Packaged in a 20-pin PDIP surface mount form factor. Wide voltage operation between 2.5V and 5.5V ensures flexibility. RoHS compliant and suitable for industrial and automotive use.
This Microchip PIC16F15245-I/P microcontroller is ideal for use in industrial automation, embedded system designs, consumer electronics, and educational applications. Discover more advanced Microcontrollers and related components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the Microchip PIC12F Microcontroller is 32 MHz.
This microcontroller operates within a voltage range of 2.5V to 5.5V.
It features 14kB of FLASH memory for program storage.
The dimensions of this model are 15.24mm in length, 7.62mm in width, and 2mm in height.
This model supports 17 programmable I/O pins, allowing for versatile interfacing capabilities.
It is enclosed in a 20-pin PDIP surface mount package.
The operating temperature range is from -40°C to 85°C, ensuring reliability in various environments.
Yes, it is equipped with 10-bit ADCs and 5-bit DACs for precise analog signal processing.
It utilizes a RISC architecture, which supports efficient instruction execution.
This model includes two timers for various control applications.
Yes, it is RoHS compliant, promoting environmentally conscious product development.
It supports multiple communication interfaces, including SPI and I2C via MSSP modules.
