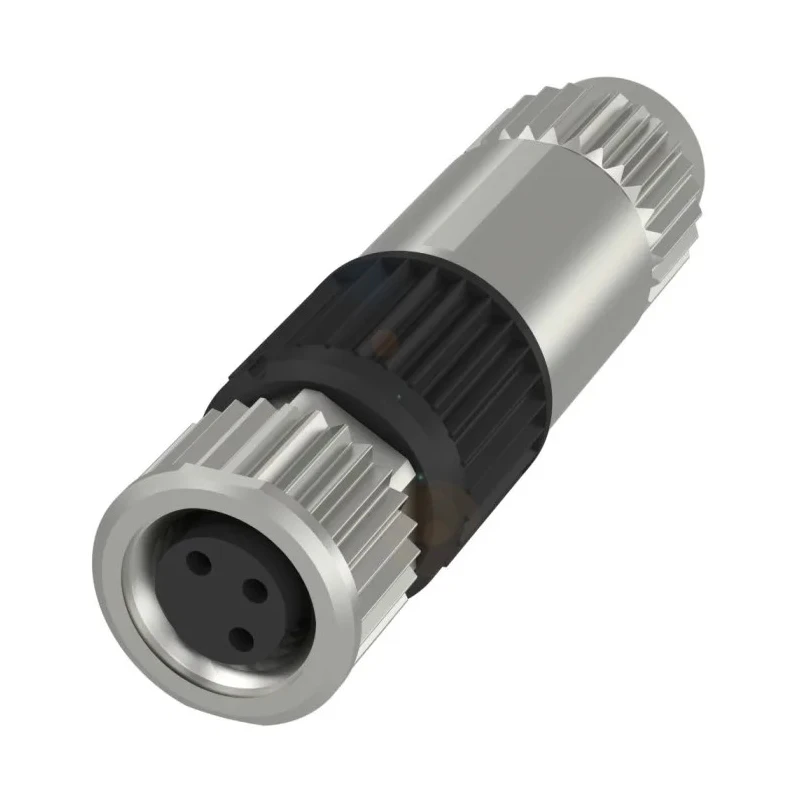

BALLUFF Circular Connector, 3 Contacts, Cable Mount, M8 Connector Size, Socket Female, IP67, 32V AC, 4A Current BCC02HC
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 32, 32V ac |
| Brand | BALLUFF |
| Orientation | Straight |
| Current | 4A |
| Model | BCC02HC |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Die Cast, Polyamide Zinc |
| Contact Material | Copper Alloy |
| Series | BKS-S111-RT13 |
| Termination Type | Screw |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | cURus, EAC WEEE |
| Pole Format | 3 |
| Contact Plating | Brass, Nickel Plated |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Mating Type | Threaded |
| Connector Size | M8 |
| Plug/Socket | Socket |
| Coding | A |
Key Features
- Designed for secure signal, data, and power transmission with 3 connectable contacts.
- Rated current is 4 A at 40 °C ambient temperature.
- Operating voltage is 32 V AC/DC.
- Construction includes die cast and polyamide zinc housing for durability.
- Suitable for operating temperatures from -40 °C up to 85 °C.
- The connector features an A-coding and screw termination type.
- It has a straight orientation with a threaded mating type for secure connections.
- Contact material is copper alloy with brass nickel-plated contacts ensuring longevity and reliability.
Product Description
BALLUFF BCC02HC Circular Connector is a robust industrial-grade 3-contact socket connector designed for cable mounting applications. It features an M8 connector size with a straight orientation and screw termination for reliable and secure connections. Rated for 4 A current at 32 V AC/DC, it is suitable for industrial environments with operating temperature ranges between -40 °C and 85 °C.
The housing is constructed from die cast metal and polyamide zinc, providing strong mechanical protection and resistance to environmental challenges. With an IP67 rating, the connector offers complete protection against dust ingress and water immersion, making it ideal for harsh industrial applications including automation, machinery, and control systems.
This connector series, BKS-S111-RT13, includes features such as A-coding for compatibility, brass nickel-plated contacts, and copper alloy contact material for excellent electrical conductivity and corrosion resistance. Threaded mating ensures a secure fit and minimizes accidental disconnection.
Manufactured in Germany, the product complies with global standards including cURus, EAC, and WEEE, guaranteeing safety and environmental compliance in industrial installations. Designed for secure signal, data, and power transmission with 3 connectable contacts.
Rated current is 4 A at 40 °C ambient temperature. Operating voltage is 32 V AC/DC. Construction includes die cast and polyamide zinc housing for durability. Suitable for operating temperatures from -40 °C up to 85 °C. The connector features an A-coding and screw termination type.
It has a straight orientation with a threaded mating type for secure connections. Contact material is copper alloy with brass nickel-plated contacts ensuring longevity and reliability. Offers protection rating of IP67, ideal for harsh environments.
Manufactured in Germany with compliance to cURus, EAC, and WEEE standards.
This BALLUFF Circular Connector is suited for demanding industrial applications requiring reliable electrical connections, such as automation systems, machinery controls, and industrial power connections. Its robust construction and compliance to industry standards ensure long-lasting, safe operation in challenging environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BALLUFF BCC02HC circular connector is rated for a current of 4 A at an ambient temperature of 40 °C.
This connector operates at a voltage of 32 V AC/DC.
It has an IP67 rating, providing complete protection against dust ingress and water immersion.
The operating temperature range for this model is from -40 °C to 85 °C.
The housing is made from die cast metal and polyamide zinc, while the contact material is copper alloy with brass nickel plating.
This model features 3 contacts.
It features a screw termination type for secure connections.
The connector has a straight orientation.
It uses a threaded mating type to ensure a secure fit.
It complies with cURus, EAC, and WEEE standards, ensuring safety and environmental compliance.
This circular connector is part of the BKS-S111-RT13 series.
Yes, it is designed for demanding industrial applications, including automation systems and machinery controls.
