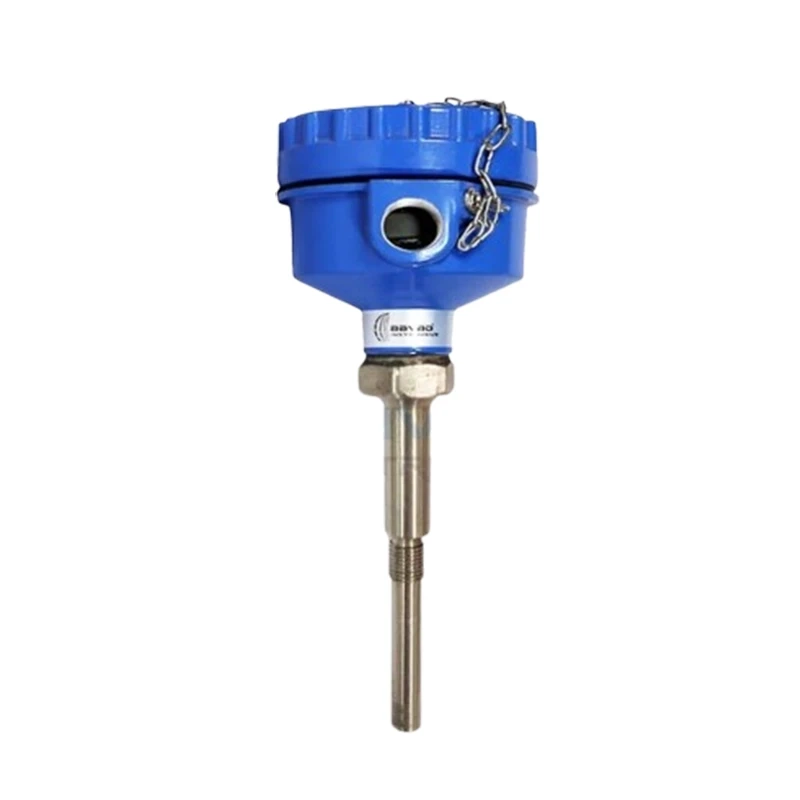

Flameproof RTD Sensor -40 to 450 deg C
Specifications
| Accuracy | Class A |
|---|---|
| MOC | Stainless Steel |
| Length | 45 mm |
| Material Grade | SS316 |
| Steel Grade | SS 316 |
| Model | APFD |
| Max. Temperature | 400 Degree c |
| Sensor Type | PT-100 |
| Insulation | Compacted MgO Insulation |
| Configuration | Duplex |
| Protection Head | Die-cast aluminum flameproof head with threaded cap & chain |
| Terminal Block | Nickel-plated ceramic terminal block |
| No. of Wire in Simplex | 3 |
| Total no. of Wires | 3+3 |
| No. of Cable Entry | Double |
| Head Protection Class | Ip-67 |
| Head Cable Entry Connection | 1/2 Npt |
| Min. Temperature | -50 Degree C |
| Above Thread OD | 12 mm |
| Tip OD | 8 mm |
| Tip Length with Thread | 45 mm |
Key Features
- High performance
- Easy maintenance
Product Description
Flameproof and explosion-proof RTD sensors are made of robust die-cast aluminum heads with mineral insulation. They can also be made of cast iron, SS304, and SS316. Our standard RTD sensors are certified flameproof for gas groups l, llA, and LLB. An assembly certified for gas group IIC (Hydrogen) can also be constructed.
- Easy to install
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -50 to 400 degrees Celsius.
It features compacted magnesium oxide (MgO) insulation, which enhances its thermal performance.
The sensor has an accuracy rating of Class A, ensuring reliable temperature measurements.
The sensor is made from stainless steel, specifically SS316, and features a die-cast aluminum flameproof head.
This model has a total of six wires, configured as three for the simplex and three for the duplex setup.
The head of the sensor is rated at IP-67, providing a high level of protection against dust and water ingress.
The tip has an outer diameter of 8 mm and a length of 45 mm, including the threaded portion.
It is equipped with a nickel-plated ceramic terminal block, which improves conductivity and durability.
It features a die-cast aluminum flameproof head with a threaded cap and chain for easy installation.
The sensor is certified flameproof for gas groups I, II A, and II B, with an option for IIC (Hydrogen) configurations.
The head cable entry connection is a 1/2 NPT, allowing for secure and standardized connections.
Yes, this model can be customized to meet specific requirements, and configurations should be confirmed through an enquiry.
