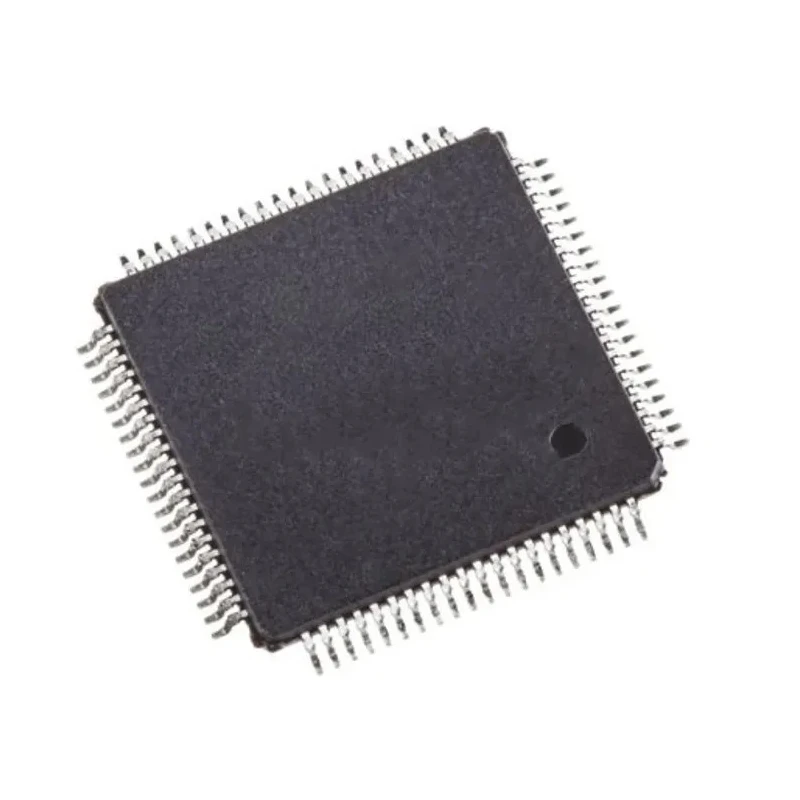

Microchip 8 bit PIC PIC18F Microcontroller 80 MHz 32kB FLASH 80-Pin TQFP PIC18F8520-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC18F8520-I/PT |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 80 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.2V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 80MHz |
| Number of Programmable I/Os | 68 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller features a high-performance RISC architecture optimized for embedded applications.
- Operates within a voltage range of 4.2V to 5.5V ensuring wide power supply compatibility.
- Equipped with 2kB RAM and 16 10-bit ADC channels for versatile analog and digital processing.
- Supports 68 programmable I/O pins facilitating flexible interfacing options.
- Designed to function reliably across a temperature range of -40°C to 85°C for industrial environments.
- Offers enhanced Flash program memory retention exceeding 40 years for long-term data security.
- The 80-Pin TQFP surface mount package supports compact and efficient PCB layouts.
- Complies with REACH and RoHS3 standards promoting environmental safety.
Product Description
Microchip PIC18F8520-I/PT is an 8 bit PIC microcontroller featuring a high-speed 80 MHz clock and 32kB of FLASH memory housed in an 80-Pin TQFP package. It adopts a compiler-optimized RISC architecture with an optional extended instruction set, providing linear program memory addressing up to 128 Kbytes and data memory addressing up to 3840 bytes, which caters to both modest and extensive application code requirements.
The device supports a wide operating voltage range from 2.0 V to 5.5 V and includes 16 channels of 10-bit analog-to-digital converters, making it suitable for precise sensor interfacing. It offers 68 programmable I/O pins allowing extensive connectivity and supports priority interrupt levels for responsive embedded control.
Designed to operate over a wide temperature spectrum from -40°C to 85°C, the PIC18F8520-I/PT is ideal for industrial, automotive (non-automotive standard compliant), laboratory instrumentation, and commercial embedded systems where robust performance is critical. The device’s Flash and Data EEPROM retention exceeding 40 years ensures data integrity for long-term deployments.
The 80-Pin TQFP surface mount package allows efficient board space utilization. Compliance with REACH and RoHS3 standards supports environmentally conscious manufacturing and disposal policies.
This microcontroller offers an advanced RISC architecture optimized for embedded applications. Wide operating voltage range from 4.2 V to 5.5 V ensures flexible power supply options. Features 32kB of Flash program memory with retention over 40 years.
Contains 2kB of RAM and 16 channels of 10-bit ADC for precise analog processing. Includes 68 programmable input/output pins for versatile interfacing. Reliable performance across -40°C to 85°C industrial temperature range.
Compact 80-Pin TQFP surface mount package for efficient PCB design. Compliance with REACH and RoHS3 regulations endorses environmental safety. Suitable for industrial, laboratory, commercial, and embedded system applications.
Explore the Microchip PIC18F8520-I/PT series in EnvMart’s electronics component catalog for high-reliability Microcontrollers crafted for sophisticated embedded system design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 80 MHz.
It features a program memory size of 32 kB.
This microcontroller operates within a voltage range of 4.2 V to 5.5 V.
It includes 68 programmable I/O pins for flexible interfacing options.
The device is designed to operate reliably across a temperature range of -40°C to 85°C.
It is equipped with 16 channels of 10-bit analog-to-digital converters.
This microcontroller has a RAM size of 2 kB.
It comes in an 80-Pin TQFP surface mount package.
It complies with REACH and RoHS3 standards, promoting environmental safety.
The instruction set architecture is RISC, optimized for embedded applications.
The maximum supply voltage for this model is 5.5 V.
The minimum operating temperature is -40°C.
