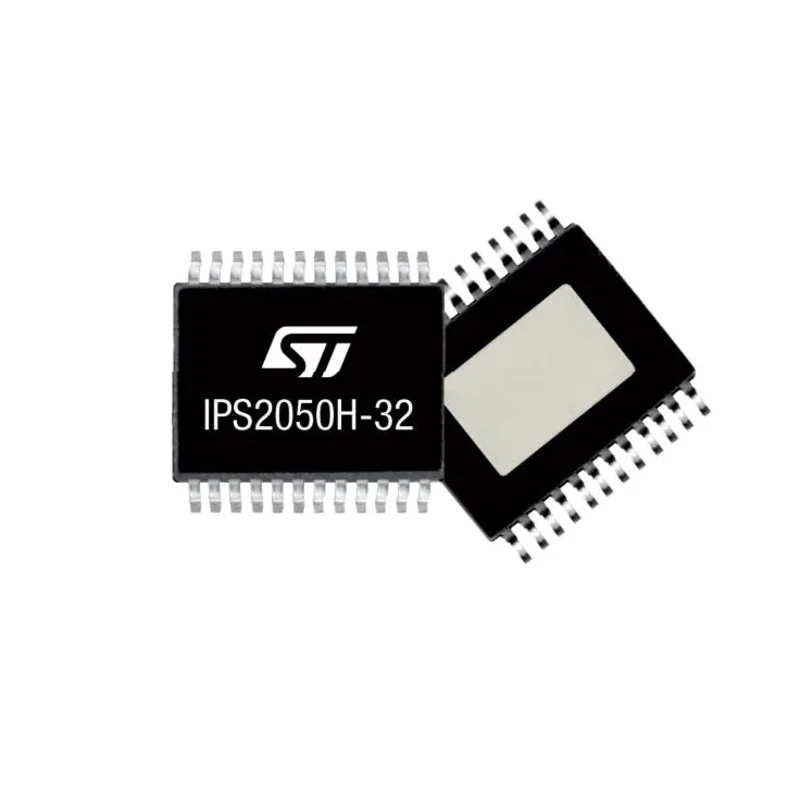

STMicroelectronics High Side Power Switch IC, 24-Pin PowerSSO, 8-60V Supply, 5.6A Operating Current IPS2050HTR-32
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.47mm |
| Length | 10.5mm |
| Model | IPS2050HTR-32 |
| Width | 7.6mm |
| Mount Type | Surface |
| Series | IPS2050H |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerSSO-24 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 5.6A |
| Number of outputs | 16 |
| Pin Count | 24 |
| Maximum Supply Voltage | 60V |
| Minimum Supply Voltage | 8V |
| Switch On Resistance RdsOn | 30mΩ |
Key Features
- Operates with a supply voltage range of 8V to 60V.
- Provides steady state operating current up to 5.6A per channel.
- Features very low on-resistance RdsOn of 30mΩ for efficient switching.
- Includes dual independently protected output channels with thermal sensors for over-temperature protection.
- Designed in a compact 24-Pin PowerSSO surface mount package.
- Supports smart driving of capacitive loads and fast demagnetization of inductive loads.
- Offers under-voltage lock-out and over-voltage protection to ensure device safety.
- Compliant with IEC 61000-4-5, IEC 61000-4-4, and IEC 61000-4-2 standards.
Product Description
STMicroelectronics IPS2050HTR-32 is a high side power switch IC engineered to control capacitive, resistive, and inductive loads with high reliability and efficiency. It features two independent channels capable of delivering steady currents up to 5.6A, suitable for industrial and electronic applications requiring robust load driving.
The device operates within a wide supply voltage range from 8V to 60V, making it compatible with diverse power systems. Each output channel is protected against junction over-temperature with embedded thermal sensors, ensuring safe operation under high load conditions. Furthermore, an additional temperature sensor monitors the case temperature to prevent overheating.
The low RdsOn resistance of 30mΩ reduces power dissipation and enhances switching efficiency. The IPS2050HTR-32 includes smart driving capabilities to handle capacitive loads and features fast demagnetization of inductive loads, minimizing stress on the IC. It also provides under-voltage lock-out, over-voltage protection, per-channel overload monitoring, and ground disconnection protection for superior robustness.
Operating supply voltage: 8V to 60V. Maximum operating current: 5.6A per output channel. On-resistance: 30 milliohms (mΩ). Package: 24-Pin PowerSSO surface mount. Operating temperature range from -40°C to 150°C. Standards compliance: IEC 61000-4 series (4-5, 4-4, 4-2).
Built-in overload and thermal protections for enhanced safety and reliability.
This IC is ideal for industrial machines, power management systems, automotive electronics (non-automotive standard), and other applications requiring reliable switches with precise current and thermal management. The compact PowerSSO-24 package supports space-efficient PCBs and surface mount assembly.
Explore EnvMart’s extensive range of semiconductor Power Management ICs for high-quality solutions tailored to your power electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 8V to 60V.
It can deliver a maximum operating current of 5.6A per output channel.
The on-resistance (RdsOn) is 30 milliohms (mΩ), which helps reduce power dissipation.
This model is designed in a compact 24-Pin PowerSSO surface mount package.
It operates within a temperature range from -40°C to 150°C.
The IPS2050HTR-32 features two independent output channels.
It is engineered to control capacitive, resistive, and inductive loads with high reliability.
It includes thermal protection, under-voltage lock-out, over-voltage protection, and overload monitoring.
Yes, it is compliant with IEC 61000-4 series standards, including IEC 61000-4-5, IEC 61000-4-4, and IEC 61000-4-2.
The height of this model is 2.47mm.
The package dimensions are 7.6mm in width and 10.5mm in length.
It is suitable for industrial machines, power management systems, and automotive electronics requiring reliable switching.
