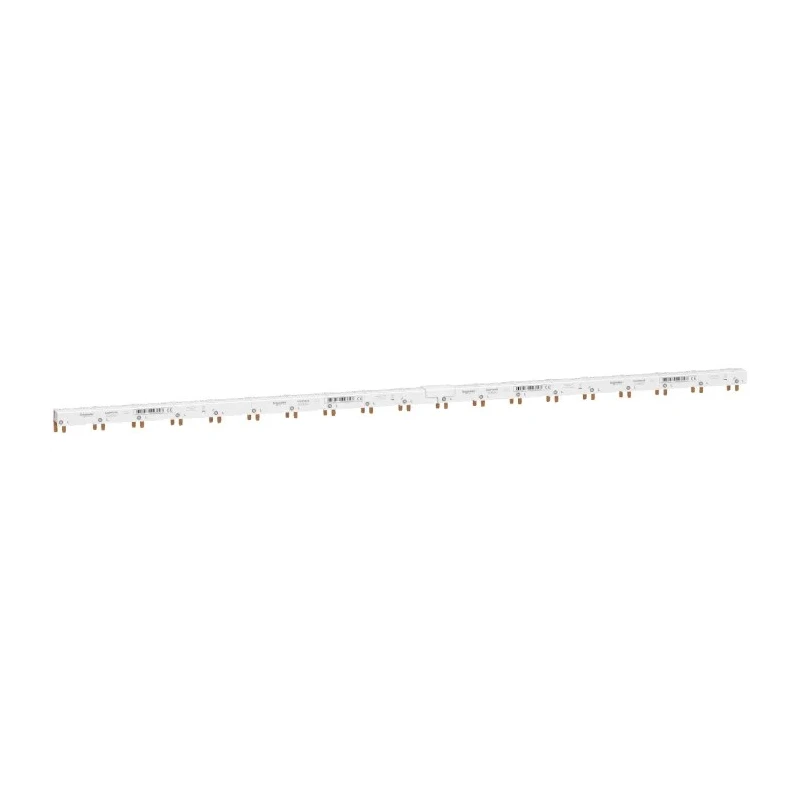

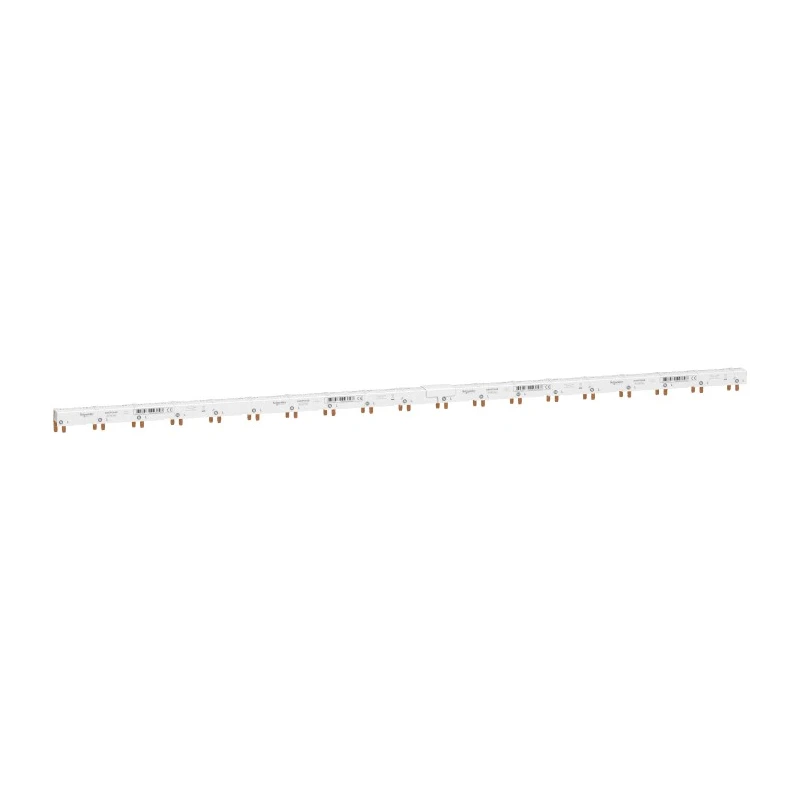

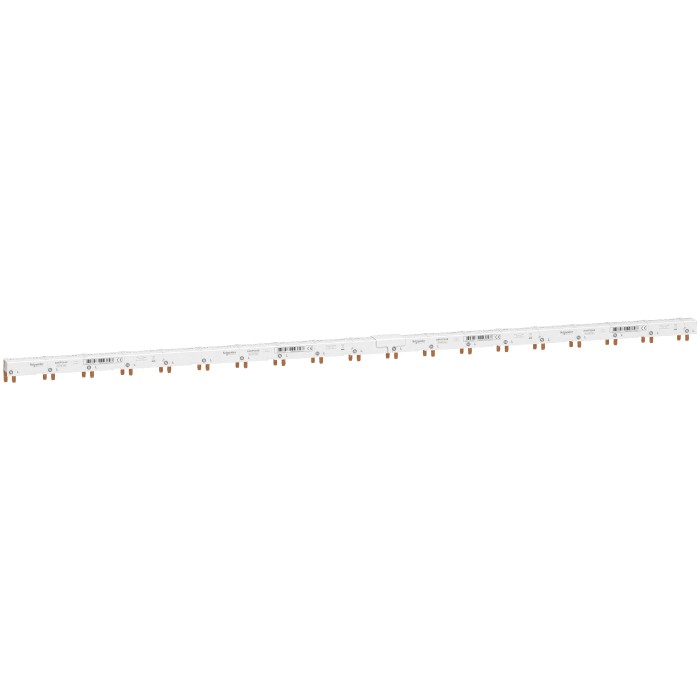

Schneider Electric Acti9 Acti9 iDT40 1 Phase 80 A Current Rating 9 mm Pitch Busbar A9XPV648

Schneider Electric A9XPV648 busbar is part of the Acti9 iDT40 series, designed for 1 phase electrical applications with a rated current of 80 A and 9 mm pitch spacing, suitable for precise electrical distribution and protection systems.

This busbar supports 1N+L configuration with auxiliary and Vigi functionality, featuring 48 modules and a pitch of 9 mm, making it compatible with various circuit breaker setups.

Manufactured in Poland, it complies with the EN/IEC 60439-1 standard, ensuring robustness, safety, and quality. The colour is white, with compact dimensions of approximately 862 mm width, 29 mm height, and 26 mm depth, and a net weight of 339 grams.

The rated operational voltage is 230 V AC phase/neutral with an insulation voltage rating of 400 V AC, including a rated impulse withstand voltage of 4 kV. The device is designed to be mountable horizontally, typically on tunnel-type terminals.

Its construction enables cuttable operation with connector tooth type, spaced 45 mm between the ways, facilitating installation flexibility. The busbar is designed for easy disassembly, supporting sustainability efforts in electrical component lifecycle management.

This device is ideal for use in electrical automation systems, industrial electrical installations, and power distribution networks requiring compact and reliable busbar solutions.

Supports a rated operational current of 80 A at 40 °C. Design includes 9 mm pitch between phase and neutral for precise connection. Compliant with EN/IEC 60439-1 electrical safety standards. Manufactured in Poland ensuring consistent quality and performance.

Compact size with 48 modules in a space-saving design. Horizontal mounting on top of tunnel-type terminals for convenient installation. Rated operational voltage of 230 V AC Phase/Neutral and insulation voltage of 400 V AC.

Cuttable busbar facilitating flexibility in system design. White colour finish for standardized appearance. Designed for disassembly promoting sustainability. Explore more Busbar and circuit breaker solutions in the Electronics & Electricals category at EnvMart for your industrial and electrical projects.
