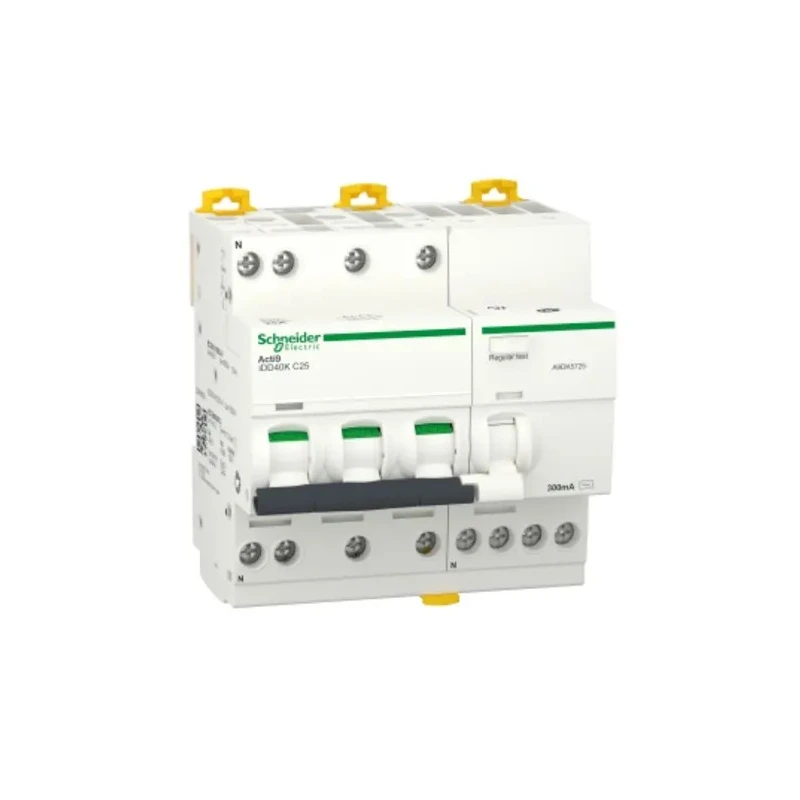

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 25A Current Rating, 3-Pole, 300 mA A9DK5725
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 93mm |
| Model | A9DK5725 |
| Depth | 73mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | Acti9 iDD40K |
| Terminal type | Tunnel |
| Breaking Capacity | 4.5kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, EN/IEC 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Earth Leakage Protection Type | AC |
Key Features
- Features thermal magnetic tripping mechanism for effective overload protection.
- Includes 300 mA trip sensitivity for instantaneous earth-leakage protection.
- Complies with EN/IEC 60947-2 and RoHS standards.
- Designed for DIN rail mounting with toggle switch reset actuator.
- Rated for 400V AC voltage with 4.5kA breaking capacity.
- Compact dimensions of 93mm height, 90mm width, and 73mm depth.
- Terminal type is tunnel for secure wiring connections.
- Padlockable for added safety during maintenance.
Product Description
Schneider Electric A9DK5725 Residual Current Circuit Breaker with Overload Protection is engineered to provide efficient circuit safeguarding in residential and distribution electrical systems. With a 25A current rating, 3-pole design, and 300 mA trip sensitivity, this RCBO ensures instant earth leakage detection and overload protection through a thermal magnetic tripping mechanism.
The device conforms to stringent standards including EN/IEC 60947-2 and RoHS, guaranteeing reliable performance and compliance. It is designed for DIN rail mounting and features a toggle switch reset actuator with ON/OFF and trip indicators for easy operation. This breaker can withstand impulse voltages up to 4 kV and delivers a breaking capacity of 4.5kA, protecting electrical circuits from damage caused by short circuits and overloads.
Its compact dimensions (93mm height, 90mm width, 73mm depth) allow space-efficient installation within electrical panels. The tunnel terminal type ensures secure and robust wiring connections, while the padlockable design adds an extra safety layer during maintenance activities. Ideal for applications requiring overcurrent and earth leakage protection, the Schneider Electric A9DK5725 suits residential, commercial, and industrial settings.
Thermal magnetic trip unit for reliable overload protection. Instantaneous 300 mA earth-leakage sensitivity with time delay. Compliance with EN/IEC 60947-2 and RoHS standards. Rated voltage of 400V AC with 4.5kA breaking capacity.
Tunnel terminal type for secure wiring. DIN rail mounting for streamlined installation. Padlockable toggle switch for enhanced safety. Operating ambient temperature range from -5°C to 60°C. Electrical durability rated for 20,000 switching cycles.
Manufactured in Spain, this Schneider Electric residual current breaker is a premium, green-class product engineered for high performance and safety in various industrial, residential, and commercial electrical distribution applications. Explore our extensive range of RCBOs at EnvMart for comprehensive circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 25A.
It has a breaking capacity of 4.5kA.
The rated voltage for this unit is 400V AC.
It features a thermal magnetic tripping mechanism for effective overload protection.
The trip sensitivity is 300 mA, providing instantaneous earth-leakage protection.
This model has dimensions of 93mm height, 90mm width, and 73mm depth.
Yes, it is designed for DIN rail mounting.
It complies with EN/IEC 60947-2 and RoHS standards.
It uses a tunnel terminal type for secure wiring connections.
The operating ambient temperature range is from -5°C to 60°C.
This model has a 3-pole design.
It features a toggle switch reset actuator.
