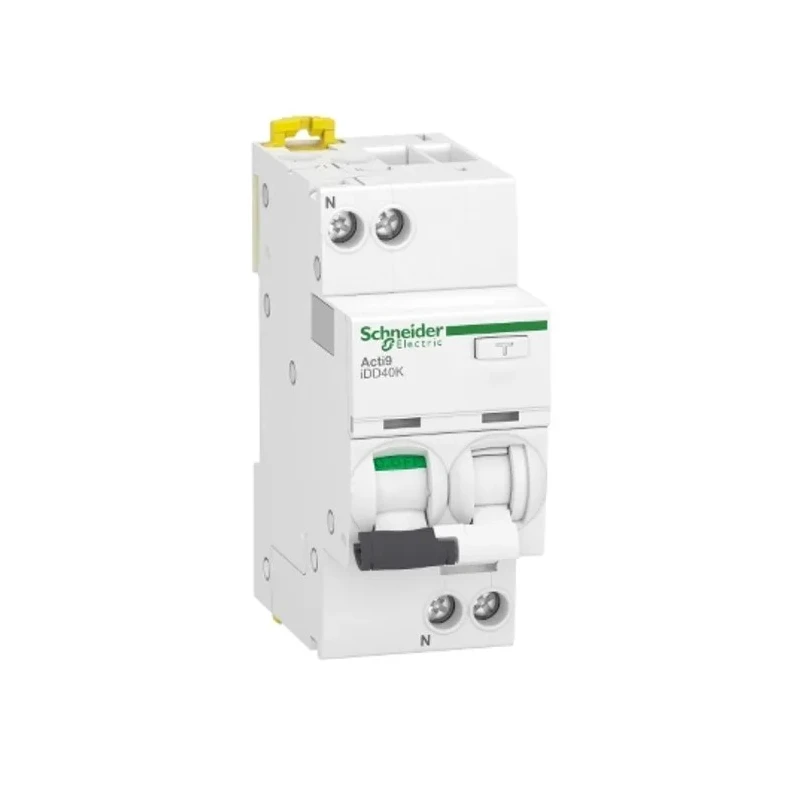

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A 230V AC 1-Pole 30 mA Trip A9DK1620
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DK1620 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | Acti9 iDD40K |
| Terminal type | Tunnel |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | EN/IEC 60947-2, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
Key Features
- Equipped with thermal-magnetic trip unit technology for accurate overload and short circuit protection.
- Mounting is designed for DIN rail installation facilitating easy integration in electrical panels.
- Complies with EN/IEC 60947-2 and RoHS standards ensuring quality and safety.
- Offers a breaking capacity of 4.5 kA suitable for residential and distribution applications.
- Features toggle switch reset actuator with ON/OFF and trip indication for easy operation.
- Compact dimensions of 85 mm height, 73 mm depth, and 36 mm width support space-saving installations.
- Designed with instantaneous earth-leakage protection and time delay for selective tripping.
- Robust design supports relative humidity up to 95% at 55°C for reliable performance.
Product Description
Schneider Electric A9DK1620 Residual Current Circuit Breaker with overload protection is engineered for effective electrical safety in residential, distribution, and overcurrent protection applications. Featuring a 20A current rating and a single-pole configuration, it operates on 230V AC supply ensuring stable circuit interruption with 30 mA earth-leakage trip sensitivity.
This device utilizes thermal-magnetic trip mechanism providing reliable short-circuit and overload current protection with instantaneous earth-leakage response and time-delay characteristics, making it apt for domestic and commercial electrical panels. The toggle switch actuator offers easy manual ON/OFF control and trip indication for maintenance convenience.
Conforming to EN/IEC 60947-2 and RoHS standards, this circuit breaker ensures compliance with international safety and environmental norms. With a sturdy DIN rail mount design, compact form factor (85mm height, 73mm depth, 36mm width), and breaking capacity of 4.5kA, it fits effectively in constrained panel spaces while delivering robust performance.
The unit supports operation under relative humidity up to 95% at 55°C and features a padlockable mechanism to safeguard against unauthorized tampering. The Schneider Electric Acti9 series represents premium class electrical protection products designed for durability and reliability. It is ideal for distribution boards, overcurrent protection, and residential electrical safety upgrade applications.
Equipped with thermal-magnetic trip unit technology for accurate overload and short circuit protection. Mounting designed for DIN rail installation facilitating easy integration in electrical panels. Conforms to EN/IEC 60947-2 and RoHS standards ensuring quality and safety.
Breaking capacity of 4.5 kA suitable for residential and distribution applications. Features toggle switch reset actuator with ON/OFF and trip indication for easy operation. Compact dimensions support space-saving installations.
Instantaneous earth-leakage protection with time delay for selective tripping. Operates in ambient relative humidity up to 95% at 55°C. Padlockable design provides additional safety and security. Part of Schneider Electric’s Acti9 iDD40K series premium class products.
Explore more Schneider Electric circuit protection solutions at EnvMart for industrial and residential electrical safety.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A, making it suitable for various residential and distribution applications.
It offers a breaking capacity of 4.5 kA, which is appropriate for effective circuit interruption in residential and distribution settings.
The dimensions of this unit are 85 mm in height, 73 mm in depth, and 36 mm in width, allowing for compact installations.
This circuit breaker utilizes a thermal-magnetic trip mechanism, providing reliable protection against overload and short circuits.
It is designed for DIN rail mounting, facilitating easy integration into electrical panels.
The trip sensitivity is set at 30 mA, ensuring effective earth-leakage protection.
It complies with EN/IEC 60947-2 and RoHS standards, ensuring safety and environmental compliance.
The rated AC voltage for this circuit breaker is 230V, making it suitable for standard electrical systems.
It features a toggle switch reset actuator, which allows for easy manual ON/OFF control and trip indication.
It can operate in relative humidity levels up to 95% at 55°C, ensuring reliable performance in various conditions.
This model is a 1-pole circuit breaker, designed for single-phase applications.
It provides AC type earth leakage protection, ensuring safety against electrical faults.
