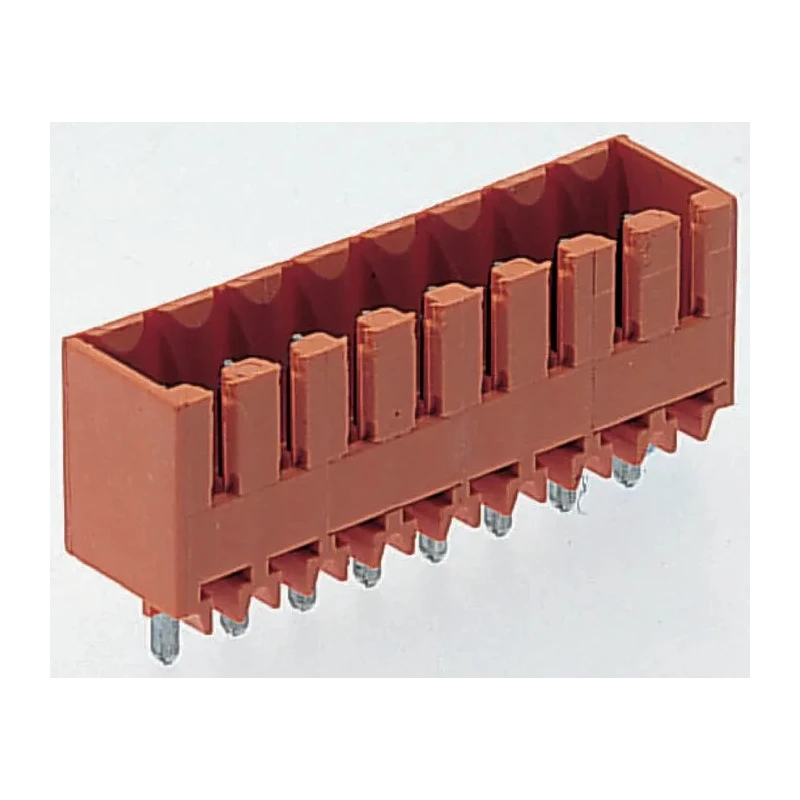

Weidmüller OMNIMATE SL Series Pluggable Terminal Block 14-Contact 3.5 mm Pitch 320V 17A 1 Row 1604590000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | Straight |
| Current | 17A |
| Length | 3.2mm |
| Depth | 7.5mm |
| Width | 50.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | OMNIMATE SL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 14 |
| Connector Gender | Male |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Solder |
Key Features
- Constructed with polybutylene terephthalate housing for durability.
- Designed with a single row and straight orientation for easy PCB mounting.
- Supports wire sizes from 28 AWG to 16 AWG using solder connection.
- Orange colored for clear identification and easy installation.
- Meets UL94 V-0 flammability standard ensuring safety in industrial environments.
- Polarising pins prevent mismatched connections ensuring reliable operation.
- Manufactured in Germany emphasizing high-quality standards.
Product Description
Weidmüller 1604590000 OMNIMATE SL Series pluggable terminal block offers a 14-contact vertical header design with a 3.5 mm pitch. It is engineered to provide a robust, space-saving interconnection solution for PCB applications where reliable power and signal transfer is critical. The block supports a voltage rating of 320 V and a maximum current of 17 A, suitable for industrial, automation, and electronic control systems.
The housing is made from polybutylene terephthalate (PBT), which delivers excellent mechanical stability and resistance to heat and chemicals. The orange-colored terminal block is designed for straight orientation and single-row mounting, optimizing PCB real estate. Wire connection is through soldering, accommodating wire sizes from 28 AWG to 16 AWG.
Key features include fully enclosed sides on headers, polarising pins to prevent mismatches during installation, and compliance with UL94 V-0 flammability class, ensuring component safety. This terminal block is part of the OMNIMATE SL series, renowned for quality and versatility in industrial applications.
Typical applications include signal distribution in automation systems, power supply connections in control panels, and general electronic assembly requiring secure and compact terminal solutions. Manufactured in Germany, this terminal block represents precision engineering combined with stringent quality controls.
Constructed with polybutylene terephthalate housing for durability. Designed with a single row and straight orientation for easy PCB mounting. Supports wire sizes from 28 AWG to 16 AWG using solder connection. Orange colored for clear identification and easy installation.

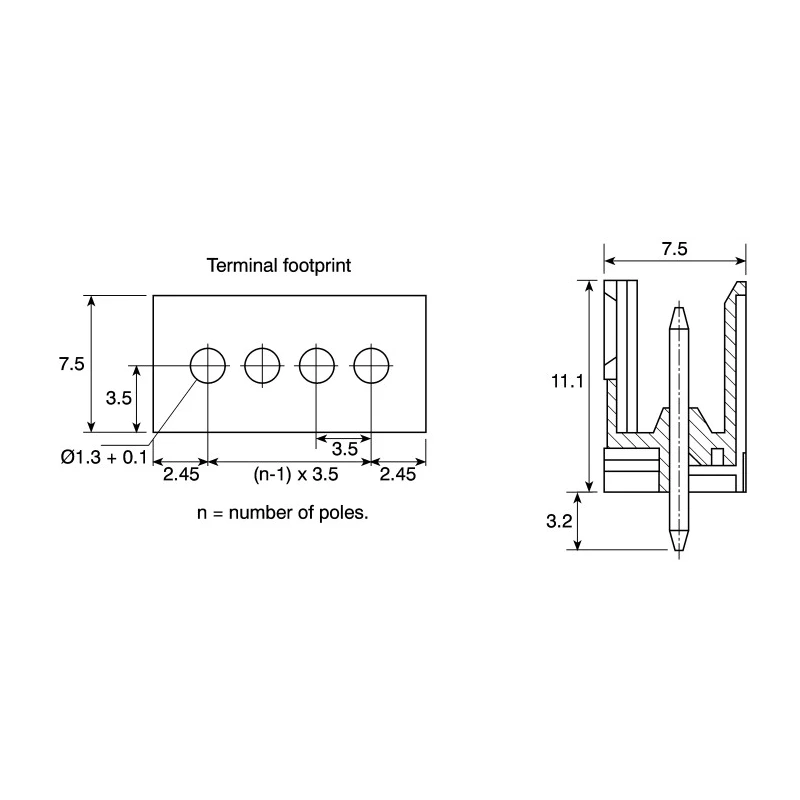

Dimensions: width 50.4 mm, depth 7.5 mm, length 3.2 mm providing compact footprint. Meets UL94 V-0 flammability standard ensuring safety in industrial environments. Polarising pins prevent mismatched connections ensuring reliable operation.
Manufactured in Germany emphasizing high-quality standards. Explore Weidmüller products in the Pluggable Terminal Blocks category on EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a voltage rating of 320 V and a maximum current rating of 17 A, making it suitable for various industrial and electronic applications.
It supports wire sizes from 28 AWG to 16 AWG using a solder connection method, accommodating a range of applications.
The dimensions of this terminal block are 50.4 mm in width, 7.5 mm in depth, and 3.2 mm in length, providing a compact footprint for PCB mounting.
The housing is made from polybutylene terephthalate (PBT), which offers excellent mechanical stability and resistance to heat and chemicals.
This model features 14 contacts, which allows for multiple connections in a single unit.
It is designed with a straight orientation, facilitating easy PCB mounting in various configurations.
Yes, it meets the UL94 V-0 flammability standard, ensuring safety in industrial environments and preventing fire hazards.
This terminal block belongs to the OMNIMATE SL series, which is known for its quality and versatility in industrial applications.
The terminal block is equipped with polarising pins that help prevent mismatched connections, ensuring reliable operation during use.
This terminal block has a male connector gender, which is standard for many PCB applications.
It is manufactured in Germany, emphasizing high-quality standards and precision engineering.
Typical applications include signal distribution in automation systems, power supply connections in control panels, and general electronic assembly.
