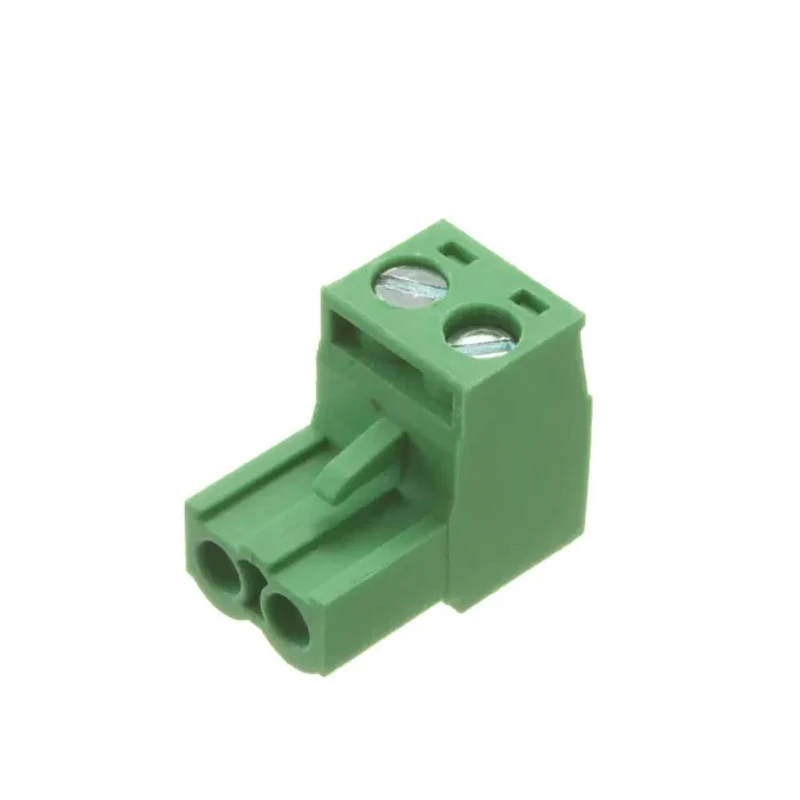

RS PRO Euro Blocks Series Pluggable Terminal Block 2-Contact 5 mm Pitch 1 Row 300V 15A Polyamide Housing 237-8442
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Straight |
| Current | 15A |
| Length | 10mm |
| Model | 237-8442 |
| Depth | 18.1mm |
| Width | 15.5mm |
| Housing Material | Polyamide |
| Series | Euro Blocks |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 2 |
| Connector Gender | Female |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Push-in |
Key Features
- Constructed with durable polyamide housing for enhanced safety and insulation.
- Supports a current rating of up to 15A and voltage up to 300V.
- Features a 5 mm pitch and 2 female contacts for reliable wiring connection.
- Employs a push-in wire connection method for ease of installation and maintenance.
- Compact size with dimensions of 10 mm length, 15.5 mm width, and 18.1 mm depth.
- Designed with a straight orientation and green color for easy identification.
- Compatible with 28 AWG to 14 AWG wire sizes with a maximum wire cross-section of 1.5 mm².
- Industry standard Euro Blocks series with captive screw and rising clamp design.
Product Description
RS PRO 237-8442 Euro Blocks Series Pluggable Terminal Block is a high-quality, 2-contact electrical connector designed for secure and reliable PCB mounting applications. With a pitch of 5 mm and a single row configuration, it supports a current rating of 15A and a voltage capacity of 300V. The terminal block features a polyamide housing, ensuring excellent electrical insulation and mechanical durability suitable for harsh industrial environments.
This pluggable terminal block utilizes a push-in wire connection method, enabling quick and secure wire terminations without the need for tools. The connector is female gender, oriented straight, and colored green for easy visual identification in assemblies. It accommodates wire sizes ranging from 28 AWG to 14 AWG and wire cross-section areas up to 1.5 mm², covering a broad spectrum of wiring requirements.
The compact physical dimensions of 10 mm length, 15.5 mm width, and 18.1 mm depth allow space-efficient layout designs on printed circuit boards. As part of the trusted Euro Blocks series, it includes features like a captive screw and rising clamp design to ensure secure connections and reduce installation time by supplying them in an open screw "wire ready" position.
This terminal block is ideal for applications across multiple industries such as electronics manufacturing, industrial automation, healthcare devices, automotive electronics, and more. Its modular dovetail design allows building multi-position assemblies for complex wiring needs.
Durable polyamide housing enhances safety and insulation. Supports up to 15A current and 300V voltage rating. Push-in wire connection method offers ease of installation. Compatible with 28 AWG to 14 AWG wires, max 1.5 mm² cross-section.
Captive screw and rising clamp design for reliable terminations. Compact size enables efficient PCB space use. Dovetail design facilitates multi-position assembly building. ISO compliant component designed for industrial environments.
Suitable for electronics, automotive, healthcare, and industrial sectors.
Choose RS PRO for reliable and versatile terminal block solutions to meet your precise PCB wiring needs. Explore more products in the Pluggable Terminal Blocks category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 15A and a voltage rating of 300V.
It is compatible with wire sizes ranging from 28 AWG to 14 AWG, with a maximum wire cross-section of 1.5 mm².
The terminal block has a length of 10 mm, a width of 15.5 mm, and a depth of 18.1 mm.
It employs a push-in wire connection method, allowing for quick and secure wire terminations without the need for tools.
The housing is constructed from polyamide, which provides enhanced safety and insulation.
This unit has a straight orientation and is colored green for easy visual identification.
It features 2 female contacts for reliable wiring connections.
Yes, it is part of the Euro Blocks series, which is known for its reliable design and features.
It is suitable for applications in electronics manufacturing, industrial automation, healthcare devices, and automotive electronics.
It includes a captive screw and rising clamp design, which ensures secure connections and reduces installation time by being supplied in an open screw position.
The country of origin for this terminal block is India.
The dovetail design allows for building multi-position assemblies, accommodating complex wiring needs.
