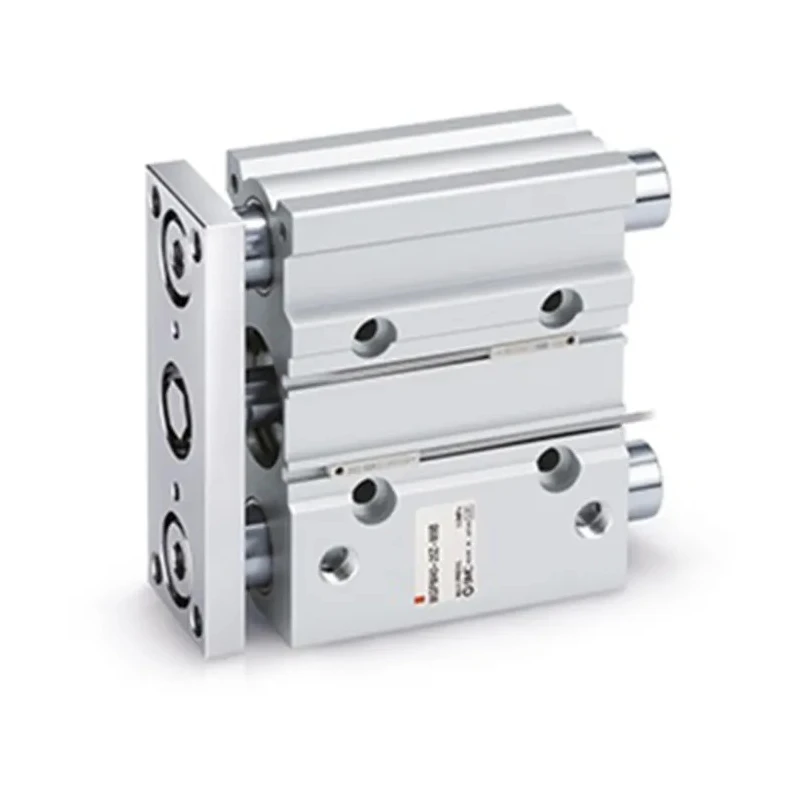

SMC Pneumatic Guided Cylinder 32mm Bore Aluminium Alloy Body 150mm Stroke Double Acting MGPL32TF-150Z
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Model | MGPL32TF-150Z |
| Gross Weight | 3.18kg |
| Series | MGPL |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 150mm |
| Bore Diameter | 32mm |
| Rod Type | Double Acting |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Guide Type | Ball Bushing |
| Piston Rod Thread Standard | G |
Key Features
- Constructed with lightweight aluminium alloy body for durability.
- Double acting piston rod with G-threaded ends enables mounting on both sides.
- Ball bushing guide reduces lateral play for high precision positioning.
- Rubber bumpers on both ends absorb impact and minimize noise.
- Rated for a maximum operating pressure of 1 MPa for powerful actuation.
- Supports piston speeds up to 500 mm/s for high cycle performance.
- Operates reliably within temperature range from -10°C to 60°C.
- Compact design suitable for pick-and-place stations and mechanical testing rigs.
Product Description
SMC MGPL32TF-150Z Pneumatic Guided Cylinder combines a robust aluminium alloy body with a guided rod travel system for accurate lateral stability and bi-directional double acting motion. The 32mm bore diameter and 150mm stroke length ensure repeatable, precise positioning tasks in industrial automation and manufacturing processes.
Designed for diverse applications, this compact guide cylinder is optimal for pick-and-place stations, electronics assembly line linear transfers, and mechanical testing rig fixtures. Its double acting rod configuration features G-threaded piston rods allowing for easy mounting on both ends and seamless integration with external linkages.
The ball bushing guide system minimizes lateral play to enhance precision, while rubber bumpers at both stroke ends efficiently absorb impact forces and reduce noise. Rated for up to 1 MPa maximum operating pressure, this cylinder delivers robust linear actuation force. It functions reliably within an operational temperature bandwidth from -10°C to 60°C, accommodating various environmental conditions.
With a maximum piston speed capacity of 500 mm/s, the MGPL32TF-150Z supports high-frequency reciprocating movements without compromising stability or alignment. The assembly weight of approximately 3.18 kg should be considered in mounting and support structure calculations.
Robust aluminium alloy construction ensures durability and light weight. Guided cylinder design provides controlled reciprocating linear motion. Double acting piston rod enables versatile mounting and dual-ended operation.
Rubber bumpers protect end-of-stroke operations, reducing shock and noise. Ball bushing guides afford superior lateral stability and positioning accuracy. High operating pressure capacity supports demanding industrial tasks.
Wide operating temperature range suits varied environments. Suitable for automation, assembly lines, testing rigs, and panel indexing. Compact and efficient pneumatic guided cylinder for precise motion control.
This product is engineered to meet industrial, manufacturing, laboratory automation, and HVAC pneumatic actuation needs. Discover more Pneumatic Guided Cylinders and related automation components in EnvMart's comprehensive catalog to build tailored solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure is rated at 1 MPa, providing robust actuation capabilities.
The stroke length of the MGPL32TF-150Z is 150mm, allowing for effective linear motion in applications.
This model features a bore diameter of 32mm, which is suitable for various pneumatic applications.
The body is constructed from lightweight aluminium alloy, ensuring durability and efficiency in operation.
It operates reliably within a temperature range from -10°C to 60°C, accommodating diverse environmental conditions.
This model utilizes rubber bumpers for cushioning, which help absorb impact and minimize noise during operation.
The ball bushing guide system minimizes lateral play, enhancing precision and stability during operation.
The gross weight of this pneumatic guided cylinder is approximately 3.18 kg, which should be considered for mounting and support.
It has a double acting piston rod, allowing for versatile mounting and operation from both ends.
This pneumatic guided cylinder is optimal for pick-and-place stations, electronics assembly, and mechanical testing rig fixtures.
The MGPL32TF-150Z supports piston speeds up to 500 mm/s, facilitating high-frequency reciprocating movements.
The MGPL32TF-150Z is manufactured in Japan, reflecting its engineering standards.
