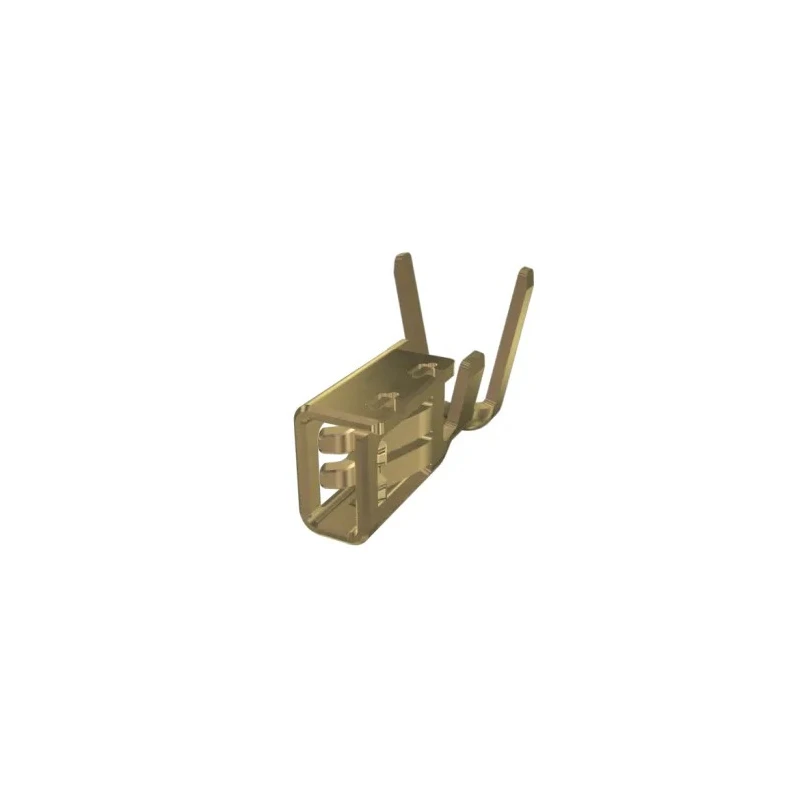

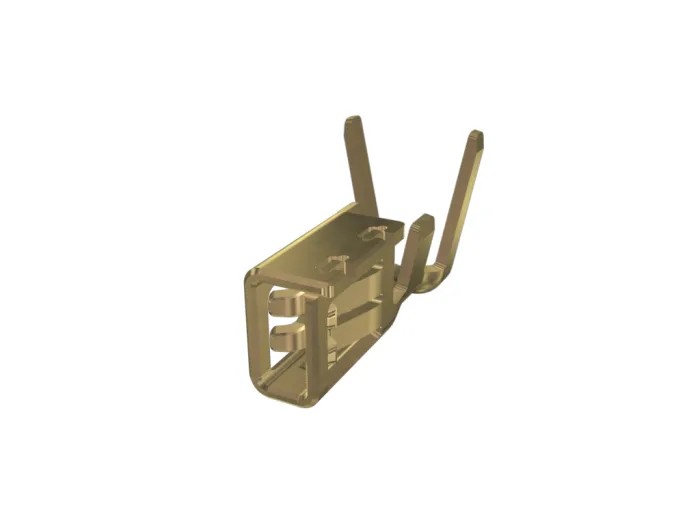

Amphenol Communications Solutions ComboLock Series Female Crimp Terminal Surface Mount 20 AWG Min, 18 AWG Max 10162697-002LF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Communications Solutions |
| Current | 10A |
| Model | 10162697-002LF |
| Gender | Female |
| Contact Material | Copper |
| Series | ComboLock |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | ComboLock Housings |
| Standards/Approvals | RoHS |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 40mΩ |
Key Features
- Female gender terminal suitable for ComboLock housings.
- Supports a maximum current rating of 10A for power applications.
- Constructed with copper contact material for reliable conductivity.
- Surface mount termination type for efficient PCB integration.
- Operates within temperature range from -40°C to 105°C.
- Contact resistance capped at 40 milliohms ensuring minimal loss.
- RoHS compliant, ensuring environmentally safe materials.
- Durability rated to withstand 30 mating cycles.
Product Description
Amphenol Communications Solutions model 10162697-002LF is a female crimp terminal from the ComboLock Series, engineered for surface mount applications on printed circuit boards. It supports wire sizes from 20 AWG minimum to 18 AWG maximum and is designed for use with ComboLock housings, making it ideal for industrial and electronic assemblies requiring reliable electrical connections.
This crimp terminal features a robust copper contact material combined with high-current alloy contacts, providing excellent conductivity and durability. Rated for a maximum current of 10 amps and voltage of 50 volts, it suits low voltage power and signal circuits commonly found in industrial automation, manufacturing equipment, communication systems, and power management modules.
Operating temperature ranges from -40°C to 105°C ensures the terminal performs reliably in a variety of harsh environmental conditions. The surface mount termination system simplifies PCB assembly and enhances production efficiency. Its contact resistance is limited to 40 milliohms, helping to minimize energy losses and improve overall circuit performance.
The 10162697-002LF terminal complies with RoHS standards, affirming its environmental safety and adherence to regulatory requirements. With a durability rating of 30 mating cycles, it allows for secure multi-connection use and maintenance cycles common in industrial and electronic applications.
Female crimp terminal compatible with ComboLock housings. Supports wire sizes 20 AWG minimum to 18 AWG maximum. Maximum current rating of 10 amps for power circuits. Copper and high-current alloy contact construction. Surface mount termination type for automated PCB assembly.
Operating temperature from -40°C to 105°C for industrial reliability. Contact resistance maximum of 40 milliohms for efficient conductivity. RoHS compliant materials ensuring environmental safety. Durability rated to 30 mating cycles for maintenance and reuse.
Voltage rating of 50 volts for low power applications.
This Product is suited for electronics manufacturing, communications solutions, power connectors in industrial systems, and PCB integration requiring robust and reliable Crimp Contacts.
Explore more connector solutions and accessories in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this crimp terminal is 10 amps, suitable for power applications.
It operates within a temperature range from -40°C to 105°C, ensuring reliability in various environmental conditions.
This terminal supports wire sizes from 20 AWG minimum to 18 AWG maximum.
It features a surface mount termination type, which facilitates efficient PCB integration.
The contact resistance is capped at 40 milliohms, helping to minimize energy losses.
Yes, this terminal complies with RoHS standards, ensuring it is made with environmentally safe materials.
It is rated for durability to withstand 30 mating cycles, allowing for secure multi-connection use.
The terminal is constructed with copper contact material, providing reliable conductivity.
It is suitable for use in industrial automation, manufacturing equipment, communication systems, and power management modules.
The voltage rating for this terminal is 50 volts, suitable for low power applications.
This terminal belongs to the ComboLock Series, designed for compatibility with ComboLock housings.
The country of origin for this terminal is China.
