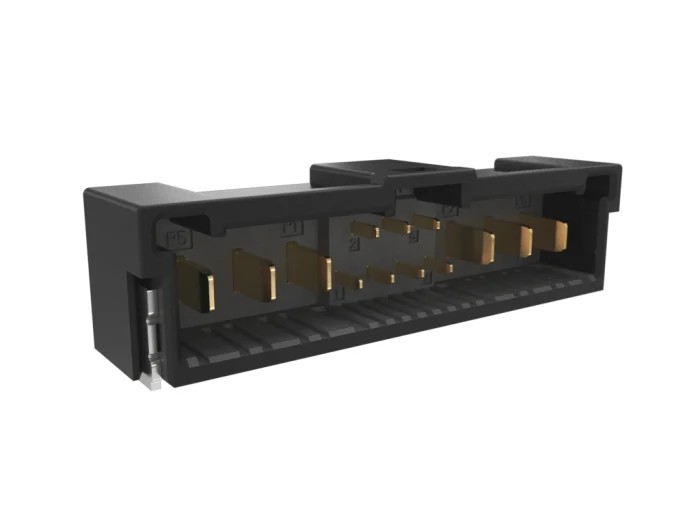

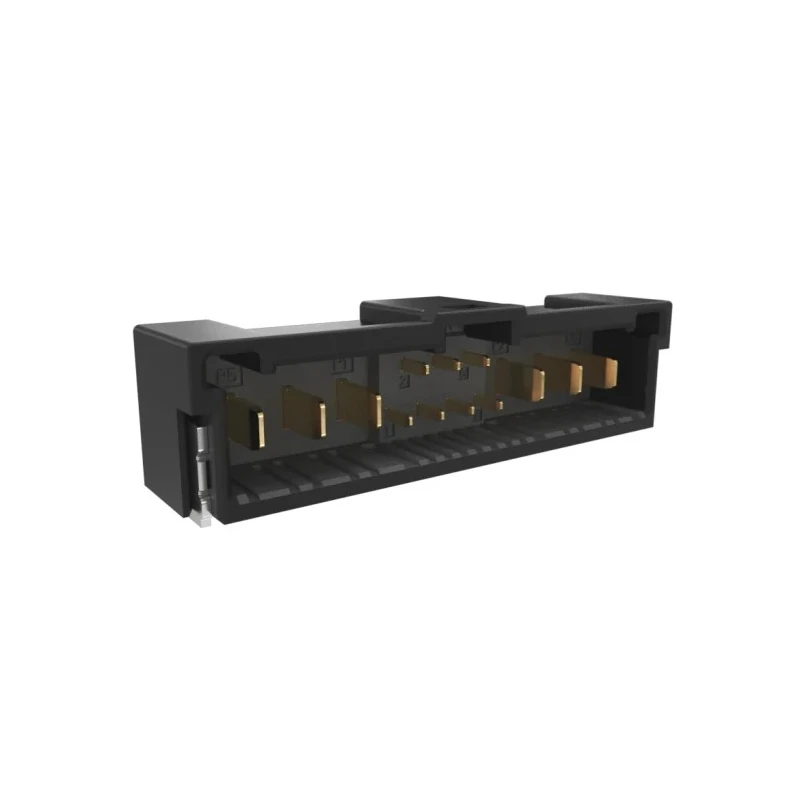

Amphenol Communications Solutions ComboLock Series Right Angle Surface PCB Header 7 Contacts 1mm Pitch 2 10162688-207206CLF

Amphenol Communications Solutions 10162688-207206CLF ComboLock Series Right Angle Surface PCB Header is precisely engineered for high-performance electronic applications requiring reliable board-to-board connections. This PCB header features 7 male phosphor bronze contacts with a fine 1 mm pitch arranged in 2 parallel rows, enabling efficient and compact PCB layout.

The durable polyamide housing provides mechanical stability and excellent insulation. Designed for right angle mounting, it supports surface mount technology with solder termination type, ensuring secure installation on printed circuit boards. Its shrouded connector system enhances protection during mating and durability over multiple fitting cycles, rated up to 30 mating cycles.

Electrical specifications include a voltage rating of 50V and current capacity of 1.5A for signal contacts with an increased capacity of 10A for power contacts. The connector maintains high reliability in operating temperatures from -40°C up to 105°C, making it suitable for industrial, communication, and electronic manufacturing environments.

The low contact resistance at 40 milliohms and insulation resistance of 100 megaohms guarantee signal integrity. The pin dimensions, including a 1mm tail pin length and mating pin length, facilitate efficient soldering and mechanical connection.

Certified to comply with RoHS and UL standards, this PCB header is ideal for a wide range of commercial and industrial electronic devices, improving production efficiency and ensuring connectivity endurance.

The connector supports a current rating of 1.5A for signal applications and up to 10A for power contacts. Constructed with a durable polyamide housing and phosphor bronze contacts for enhanced conductivity. Designed for right angle orientation with shrouded male contacts for secure mating.

Supports surface mount technology with solder termination type for reliable attachment. Operates reliably in temperatures ranging from -40°C to 105°C suitable for demanding environments. Voltage rating of 50V and meets RoHS and UL standards for safety and environmental compliance.

Tail pin length and mating pin length of 1mm each ensure stable mechanical and electrical connection. The compact 1 mm pitch and 2-row design optimize PCB space utilization. Explore our range of electronic components and PCB Headers at EnvMart for quality and reliability in your industrial and manufacturing projects.
