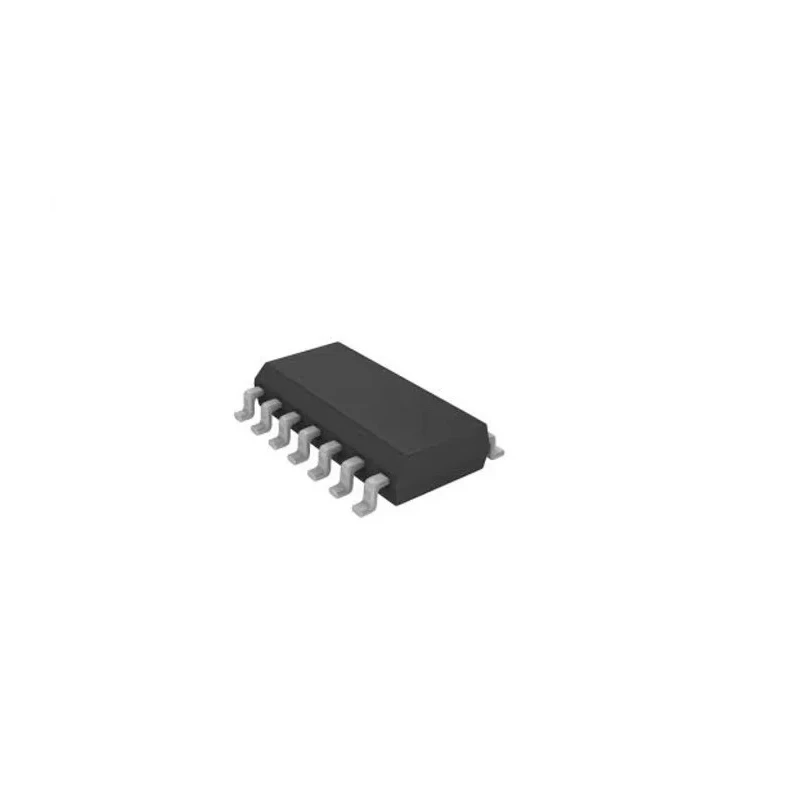

Microchip 8-bit PIC Microcontroller 32 MHz 28kB FLASH 14-Pin SOIC PIC12F

Microchip PIC16F18426-I/SL is an 8-bit PIC microcontroller featuring a robust RISC architecture optimized for efficient embedded system performance. Operating at a maximum clock frequency of 32 MHz, it delivers reliable processing power suitable for a broad range of applications in electronics, industrial automation, and consumer devices.

This microcontroller incorporates 28kB of FLASH program memory and 2kB RAM, enabling ample storage and data management for complex algorithms and control logic. The 14-pin SOIC package supports surface mounting to PCBs with compact form factor dimensions of 8.65 mm length, 3.9 mm width, and 1.75 mm height, perfect for space-sensitive applications.

Its interface capabilities include EUSART, I2C, DSM, PPS, PWM, SPI, and CWG, offering extensive communication options for integration with other devices and sensors. The device features one 5-bit DAC and a 10-bit ADC providing analog signal conversion for precise measurement and control tasks.

Operating voltage ranges from a minimum of 2.5 V up to a maximum of 5.5 V, ensuring flexibility in power supply design. The device is designed to operate reliably across a temperature range of -40°C to +85°C, making it suitable for various industrial and automotive environments not requiring automotive standards.

Additional features include 8 timers for versatile timing and PWM generation, a 16-level deep hardware stack, interrupt capability, and low power modes such as power-on reset and brown-out reset options for enhanced reliability and power efficiency.

Utilizes a RISC architecture optimized for C compiler. Features 28kB Flash program memory and 2kB RAM size for efficient data handling. Operates with a maximum clock frequency of 32 MHz. Includes 14 programmable input/output pins for flexible interfacing.

Supports multiple interfaces including EUSART, I2C, SPI, PWM, and others. Operates within a supply voltage range of 2.5V to 5.5V. Built-in 10-bit ADC and 1 x 5-bit DAC for analog signal processing. Designed to function reliably between -40°C and 85°C operating temperature.

Compact dimensions of approximately 8.65mm length, 3.9mm width, and 1.75mm height facilitate space-constrained designs. RoHS and REACH compliant ensuring environmental safety standards.

This microcontroller is ideally suited for applications in industrial controls, consumer electronics, communication equipment, and general embedded system design. Its combination of performance, compact form factor, and versatile peripherals deliver a cost-effective solution while complying with environmental regulations.
