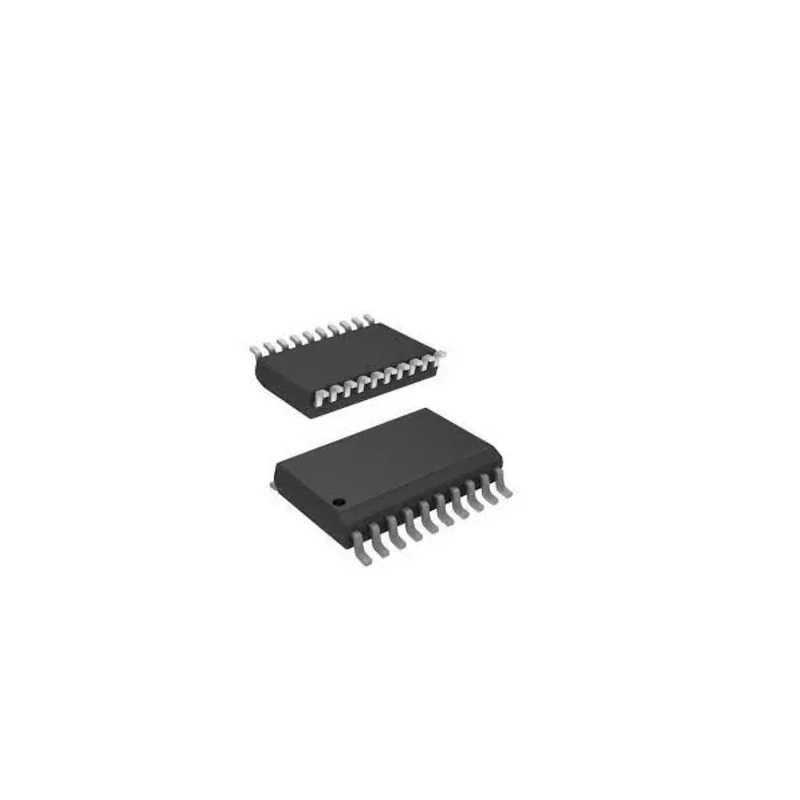

Microchip 8 bit PIC XLP 16F Microcontroller 32 MHz 7kB FLASH 20-Pin SOIC PIC16F15344-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC16F15344-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC XLP 16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates with a maximum supply voltage of 5.5V and minimum of 2.3V.
- Contains 18 programmable I/Os and 1 x 5 bit DAC.
- Includes 2 analogue comparators and 2 timers for precise control.
- Designed with eXtreme Low Power (XLP) technology for energy efficiency.
- Program memory type is FLASH supporting up to 7kB capacity.
- Utilizes RISC architecture optimized for C Compiler.
- Suitable for low power and general purpose applications requiring high performance.
- Includes Memory Access Partition (MAP) and Device Information Area (DIA) for data protection and calibration accuracy.
Product Description
Microchip PIC16F15344-I/SO is an 8 bit PIC microcontroller from the PIC XLP 16F series offering a high-performance 32 MHz clock frequency and 7kB of FLASH program memory. Packaged in a compact 20-Pin SOIC with surface mount technology, it suits applications requiring efficient space utilization.
This microcontroller features 18 programmable input/output pins, a 1 x 5 bit DAC, and 2 analogue comparators which enhance its analog interfacing capabilities. It integrates multiple timers - namely two hardware timers including an 8-bit Timer2 with hardware limit timer for precise timing and control operations.
Designed with Microchip's eXtreme Low Power (XLP) technology, it delivers optimal power efficiency making it ideal for battery-operated and low power embedded systems. Its RISC (Reduced Instruction Set Computing) architecture is optimized for C compilers, facilitating streamlined and efficient software development workflows.
Additional features include Memory Access Partition (MAP) to bolster data security and bootloader applications, and Device Information Area (DIA) storing factory calibration data to improve temperature sensor accuracy. The microcontroller operates within a voltage range of 2.3V to 5.5V and under a wide temperature range from -40°C up to 85°C, ensuring reliability under diverse industrial and commercial conditions.
Maximum clock frequency of 32 MHz enabling fast processing. 7kB FLASH program memory allows storage of complex firmware. Multiple PWMs and communication peripherals support a variety of control applications. Low current power-on reset and configurable power-up timers enhance device stability.
Brown-out reset and low power brown-out reset options increase robustness in noisy power environments. Memory protection features safeguard application code and data integrity.
This microcontroller is suitable for a broad spectrum of applications in industrial automation, consumer electronics, and embedded systems requiring compact, low power microcontrollers with ample analog and digital I/O capability.
Explore the Microchip Microcontroller catalog at EnvMart for extensive semiconductor components optimized for electronics and embedded solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It has a program memory size of 7kB, utilizing FLASH memory type.
This microcontroller operates with a supply voltage range from 2.3V to 5.5V.
The PIC16F15344-I/SO features 18 programmable input/output pins.
It can operate in a temperature range from -40°C to 85°C.
This model is packaged in a 20-Pin SOIC (Small Outline Integrated Circuit).
Yes, it includes 2 analogue comparators for enhanced analog interfacing capabilities.
It utilizes a RISC (Reduced Instruction Set Computing) architecture optimized for C compilers.
It includes a Memory Access Partition (MAP) and a Device Information Area (DIA) for data protection and calibration accuracy.
This microcontroller integrates 2 timers for precise control operations.
It complies with REACH and RoHS3 standards.
