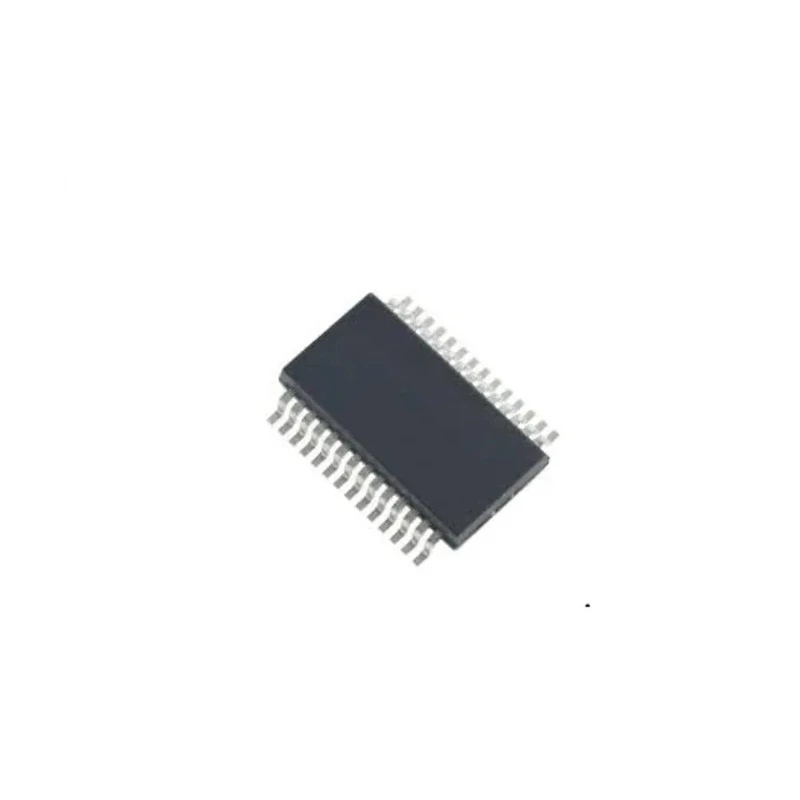

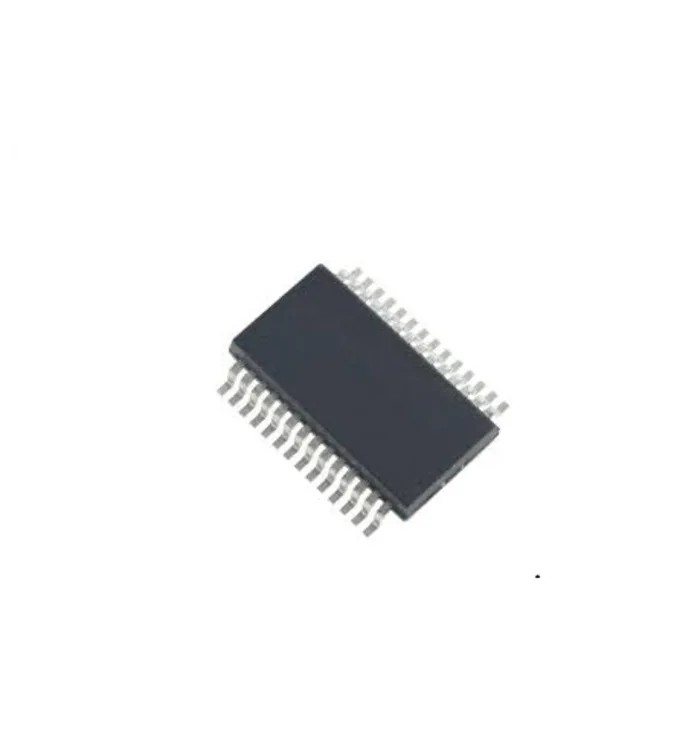

Microchip 8-bit PIC Microcontroller 16 MHz 3.5kB Flash 28-Pin SOP PIC12F

Microchip PIC16F722A-I/SS is a highly efficient 8-bit PIC microcontroller operating at a maximum clock speed of 16 MHz. It features 3.5kB of flash program memory and 192 bits of RAM, enabling reliable embedded computing operations. The device comes in a compact 28-pin SOP surface-mount package with dimensions of 10.2mm length, 5.3mm width, and 1.75mm height, making it suitable for space-constrained electronic applications.

This microcontroller integrates multiple communication interfaces such as EUSART, I2C, and SPI, facilitating easy integration into complex systems requiring serial data communication. The device operates within a voltage range of 2.5 V to 5.5 V and supports a broad operating temperature range from -40°C to 85°C, ideal for industrial and automotive environments.

Designed with a RISC instruction set architecture, the PIC16F722A-I/SS executes most instructions in a single clock cycle, offering fast and efficient processing. It incorporates 25 programmable input/output ports allowing for flexible peripheral connectivity and control. The three available timers and 10-bit ADCs enhance its versatility for timing operations and analog signal acquisition.

Additional features include an 8-level deep hardware stack supporting nested interrupts and context switching, high-current source/sink capability for driving LEDs directly, interrupt-on-pin change, and dedicated low power 32 kHz oscillator for low-energy operations. The device includes two capture/compare/PWM modules with up to 16-bit resolution, enabling precise timing and pulse-width modulation control.

Operates at maximum clock frequency of 16 MHz for rapid execution. 3.5kB flash memory with FLASH program memory type for non-volatile storage. 192-bit RAM supports efficient data manipulation. Multi-interface support: EUSART, I2C, SPI communication.

Wide supply voltage: 2.5 V to 5.5 V for versatile power requirements. 25 programmable I/O pins for diverse hardware control. Operating temperature from -40°C to 85°C suits harsh environments. Compact 28-pin SOP surface mount package.

RoHS compliant meeting environmental safety standards.

This microcontroller is ideally suited for industrial control, consumer electronics, automotive applications, and embedded system development requiring a reliable and flexible 8-bit processing core. It is compliant with RoHS and designed for low power operation and extended temperature performance.
