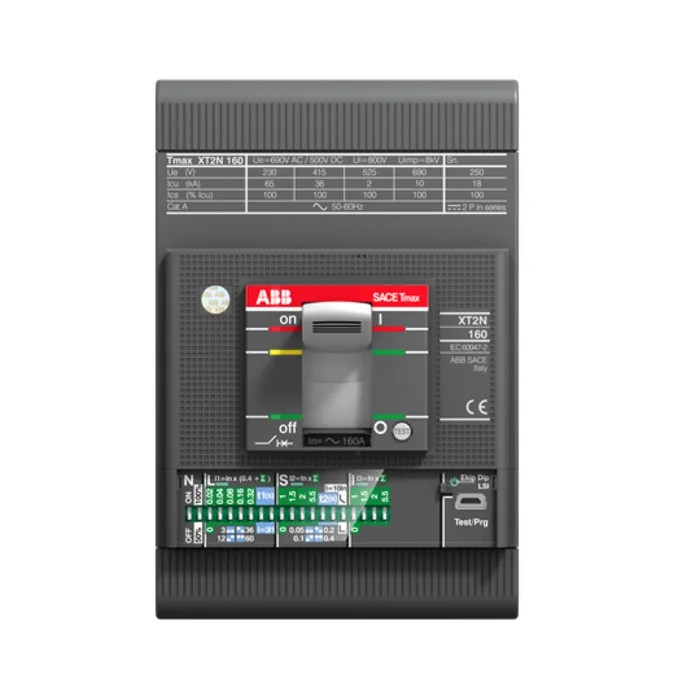

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 690V AC 200kA Breaking Capacity Fixed 1SDA067974R1 XT2V 160 Ekip LS/I 100A FF

ABB 1SDA067974R1 XT2V 160 Ekip LS/I 100A FF molded case circuit breaker is a high-performance electrical protection device designed for industrial and commercial power systems. With a fixed mount and 3-pole configuration, it offers a rated current capacity of 100A and a breaking capacity of 200kA, making it suitable for robust circuit interruption and fault clearance in demanding environments. Operating at a rated voltage of 690V AC and frequency of 50/60 Hz, this circuit breaker ensures reliable protection under varying load conditions.

The device features a solid state tripping mechanism within the Ekip LSI system, providing advanced, precise trip control, enhancing safety and minimizing downtime. The breaker includes front fixed terminals for stable connections and ease of installation. Its compact size with dimensions measuring 130mm in height, 90mm in width, and 82.5mm in depth optimizes space within switchboards and electrical panels.

Furthermore, the breaker conforms to CE, IEC, and RoHS standards, ensuring compliance with international safety and environmental regulations. It utilizes a lever-style reset actuator, facilitating manual reset operations after trip events. The product's design emphasizes sustainability with a Better World claim for designed disassembly, promoting eco-friendly end-of-life management.

Manufactured in Italy, the circuit breaker assures premium build quality and durability. It withstands rated impulse voltages up to 8 kV, reinforcing its resilience against electrical surges. This molded case circuit breaker is ideal for use in industrial automation, electrical distribution, HVAC systems, manufacturing plants, and commercial facilities requiring dependable overcurrent protection and system stability.

ABB's Tmax XT breaker series is widely regarded for integrating advanced technology with robust mechanical design, supporting efficient and safe electrical system operations. This model is suitable for replacing or upgrading existing equipment to enhance fault tolerance and operational safety.

Triple pole configuration ensures comprehensive circuit protection. Rated for 690V alternating current operation. Fixed mounting type with front fixed terminals. Solid state tripping mechanism in Ekip LSI version for precise control.

Compact dimensions with 130mm height, 90mm width, and 82.5mm depth. Designed for disassembly supporting sustainability. Lever reset actuator enables easy manual operation. Compliance with CE, IEC, and RoHS standards. Manufactured in Italy for assured quality.

Rated impulse withstand voltage of 8 kV for enhanced durability.

For businesses seeking reliable and certified molded case Circuit Breakers, ABB's Tmax XT range, including the 1SDA067974R1 model, provides a trusted solution. Discover more industrial electrical protection products at EnvMart to support your infrastructure’s efficiency and safety.
