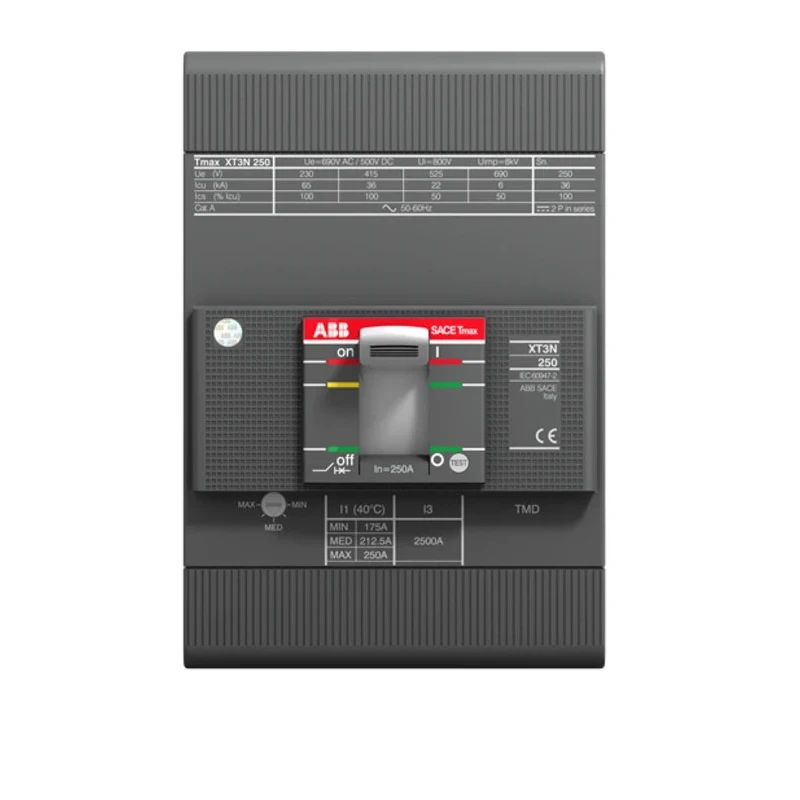

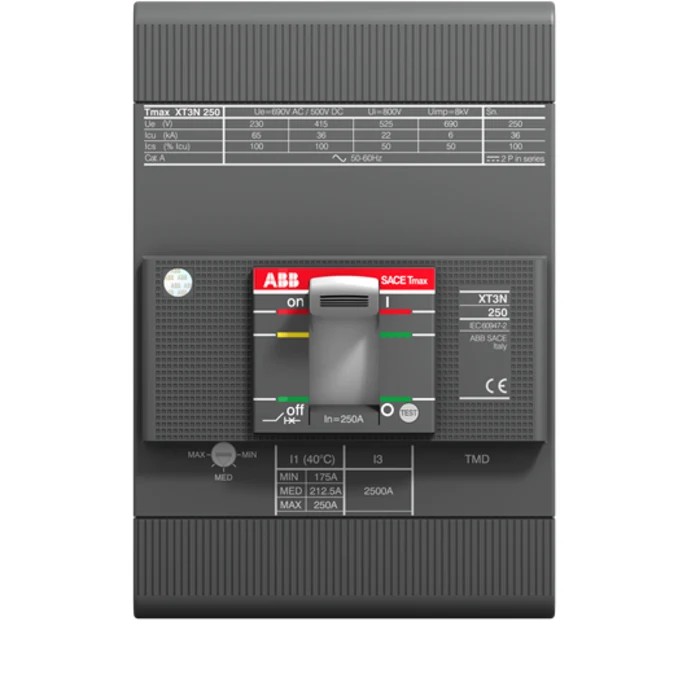

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 80A 50kA Breaking Capacity Fixed Terminals 1SDA068252R1 XT3N 250 TMG 80A FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 80A 50kA Breaking Capacity Fixed Terminals 1SDA068252R1 XT3N 250 TMG 80A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	150mm
Model	1SDA068252R1 XT3N 250 TMG 80A FF
Depth	70mm
Width	105mm
Mount Type	Fixed
Current Rating	80A
Series	Tmax XT
Terminal type	Fixed
Breaking Capacity	50kA
Number of Poles	3
Standards/Approvals	RoHS, IEC, CE
Rated AC Voltage	690V ac
Rated DC Voltage	500V dc
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Lever
Rated current (In)	80 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

Current rating of 80 amperes ensures secure overload and short circuit protection.
Fixed mounting and terminal type enhances stable installation and electrical connectivity.
Thermal magnetic tripping mechanism offers precise and responsive circuit interruption.
Designed for rated AC voltage up to 690 V and DC voltage up to 500 V.
Lever reset actuator type allows easy manual reset after tripping.
Compact dimensions with height 150 mm, width 105 mm, and depth 70 mm facilitate space-efficient panel design.
Complies with RoHS, IEC, and CE standards ensuring quality and environmental compliance.
Better World Product with design focused on disassembly for sustainability.

Product Description

ABB 1SDA068252R1 XT3N 250 TMG 80A FF Molded Case Circuit Breaker is engineered for industrial, commercial, and automation electrical protection. Featuring a 3-pole fixed mounting design, it offers a rated current of 80 A and a high breaking capacity of 50 kA, providing robust overload and short circuit protection at rated AC voltage up to 690 V and DC voltage up to 500 V.

The breaker uses a thermal magnetic (TMG) tripping mechanism which responds accurately to both overloads and short circuits, ensuring optimal circuit safety. A lever reset actuator simplifies manual resetting after tripping events. The product dimensions of 150 mm height, 105 mm width, and 70 mm depth allow for straightforward integration into electrical panels with limited space.

Manufactured to comply with RoHS, IEC, and CE standards, the Tmax XT series is designed with sustainability in mind, supporting disassembly for recycling and component reuse. It is ideal for use in industrial electrical distribution, motor protection, HVAC systems, and other automated processes requiring consistent circuit interruption performance.

Current rating of 80 amperes ensures secure overload and short circuit protection. Fixed mounting and terminal types enable stable installations and connections. Thermal magnetic tripping mechanism offers precise circuit interruption for protection.

Rated AC voltage of 690 V and DC voltage of 500 V for versatile application environments. Compact dimensions support efficient panel design and installation. Complies with RoHS, IEC, and CE approvals ensuring quality and environment safety.

Better World Product designed for disassembly improves environmental sustainability. Lever actuator allows easy manual reset after circuit trips. Ideal for industrial, automation, commercial, and electrical distribution systems.

Made in Italy with a reputation for durable quality and reliability. Explore ABB Molded Case Circuit Breakers at EnvMart for advanced electrical protection solutions tailored to professional industrial and commercial requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This molded case circuit breaker has a current rating of 80 amperes, providing secure overload and short circuit protection.

The breaking capacity of this model is 50 kA, ensuring effective protection against short circuits.

It is designed for a rated AC voltage of up to 690 V and a rated DC voltage of up to 500 V.

It features a thermal magnetic tripping mechanism, which provides precise and responsive circuit interruption for both overloads and short circuits.

The dimensions are 150 mm in height, 105 mm in width, and 70 mm in depth, allowing for compact installation in electrical panels.

This model utilizes a fixed mounting type, which enhances stability during installation.

It has a lever reset actuator type, which allows for easy manual resetting after a tripping event.

It complies with RoHS, IEC, and CE standards, ensuring quality and environmental compliance.

This product is made in Italy, reflecting its engineering and manufacturing standards.

It is ideal for use in industrial electrical distribution, motor protection, HVAC systems, and other automated processes requiring circuit interruption.

The rated frequency for this model is 50/60 Hz, making it versatile for different electrical systems.

The rated impulse withstand voltage is 8 kV, providing additional protection against voltage spikes.
