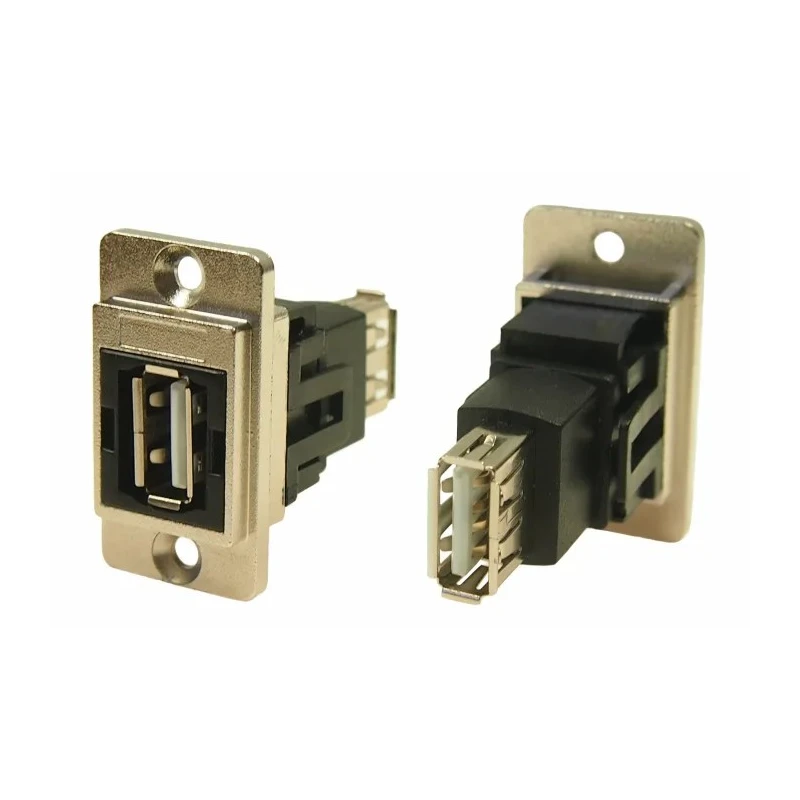

RS PRO USB Type A to A Panel Mount Straight Female/Female 2 Port USB Connector USB 2.0 235-4754
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Operating Temperature | Min -20 °C, Max +50 °C |
| Model | 235-4754 |
| Mount Type | Panel |
| Current Rating | 1.5 A max |
| Series | FT |
| Number Of Ports | 2 |
| Termination Type | Plug-In |
| Maximum Operating Temperature | 50°C |
| Insulation resistance | 20 mΩ min |
| Frame | Diecast, Metal or black plated |
| Voltage Rating | 30 V AC |
| Minimum Operating Temperature | -20°C |
| Interfaces | USB 2 |
| USB Type | USB Type A to A |
| Shell | Nickel plated steel |
| Contact Resistance | 50 mΩ max |
| Contacts | Gold Plated |
| Connector Gender | Female/Female |
| USB Specification | USB 2.0 |
| Dielectric Withstanding Voltage | 500V AC |
| Insert | ABS UL94 HB |
| Inner Over-mouldings | PE + PVC |
| USB 2.0 A-A FT Nickel frame, CSK holes, RS stock no | 235-4754 |
| USB 2.0 A-A FT Black metal frame, CSK holes, RS stock no | 235-4755 |
Key Features
- USB 2.0 standard compatible for high-speed data transmission.
- Dual female USB Type A ports with straight orientation.
- Panel mount type suitable for front or rear mounting.
- No solder or punch termination required; push-fit and secure with retaining screws.
- Operating temperature range from -20°C to 50°C.
- Durable ABS UL94 HB insert with gold plated contacts for excellent conductivity.
- Nickel plated steel shell and diecast metal frame for robust build quality.
- Low profile design ideal for compact telecommunications and networking equipment.
Product Description
RS PRO 235-4754 USB Type A to A Panel Mount USB Connector features a slim dual female-to-female feedthrough design compliant with USB 2.0 standards, rated for 30 V AC and a maximum current of 1.5 A. This straight orientation connector facilitates easy panel mounting both at the front and rear of enclosures or rack panels, making it ideal for custom telecommunications, Ethernet networking, audio soundboards, and computer applications that require high-speed, reliable data transfer.
The connector employs a durable construction with an ABS UL94 HB insert, diecast metal or black plated frame, PE + PVC inner over-mouldings, and a nickel plated steel shell. Contacts are gold plated to ensure low contact resistance and long-lasting performance. Installation is straightforward with push-fit plug-in termination without the need for soldering or punch tools, secured by retaining screws. Operating temperatures range from -20°C to 50°C, ensuring stable performance in varied environments.
This RS PRO slim dual mounting USB 2.0 connector offers a low rear profile suited for applications with limited space while maintaining excellent transmission reliability. It is compatible with male USB 2.0 cables and designed to withstand dielectric voltages up to 500 V AC, making it a robust choice for industrial, commercial, and telecommunications equipment.
USB 2.0 standard compliance ensures high-speed data transfer. Dual female Type A ports allow versatile connectivity in panel-mounted configurations. Push-fit installation with retaining screws eliminates soldering, simplifying maintenance and assembly.
Durable metal frame and nickel plated steel shell provide mechanical strength and corrosion resistance. Gold plated contacts guarantee low resistance and improved signal integrity. Wide operating temperature range suits diverse industrial environments.
Voltage and current ratings support a range of low power electronics applications. Slim profile design is optimized for space-constrained enclosures and panels. Ideal for telecommunication and networking interface solutions.
RS PRO quality ensures rigorous testing and dependable performance. Explore the broad range of RS PRO connectors for your industrial and commercial electronic component needs at EnvMart, trusted for quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 1.5 A.
It operates within a temperature range of -20°C to 50°C.
This connector features dual female USB Type A ports.
It is a panel mount type, suitable for both front and rear mounting.
The connector includes a nickel plated steel shell, diecast metal frame, and an ABS UL94 HB insert.
The voltage rating for this model is 30 V AC.
It utilizes a plug-in termination type, which does not require soldering or punch tools.
The contact resistance is rated at a maximum of 50 mΩ.
It can withstand dielectric voltages up to 500 V AC.
The shell is made of nickel plated steel, providing mechanical strength and corrosion resistance.
Yes, it is compliant with USB 2.0 standards for high-speed data transmission.
It is suitable for telecommunications, Ethernet networking, audio soundboards, and computer applications requiring reliable data transfer.
