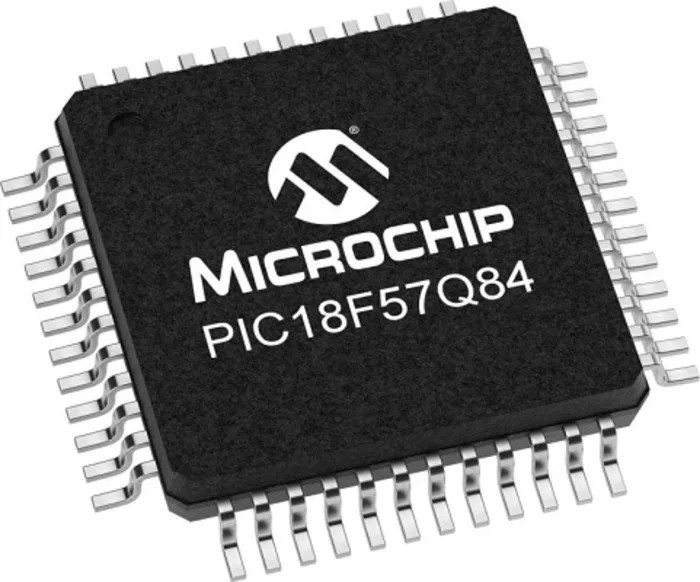

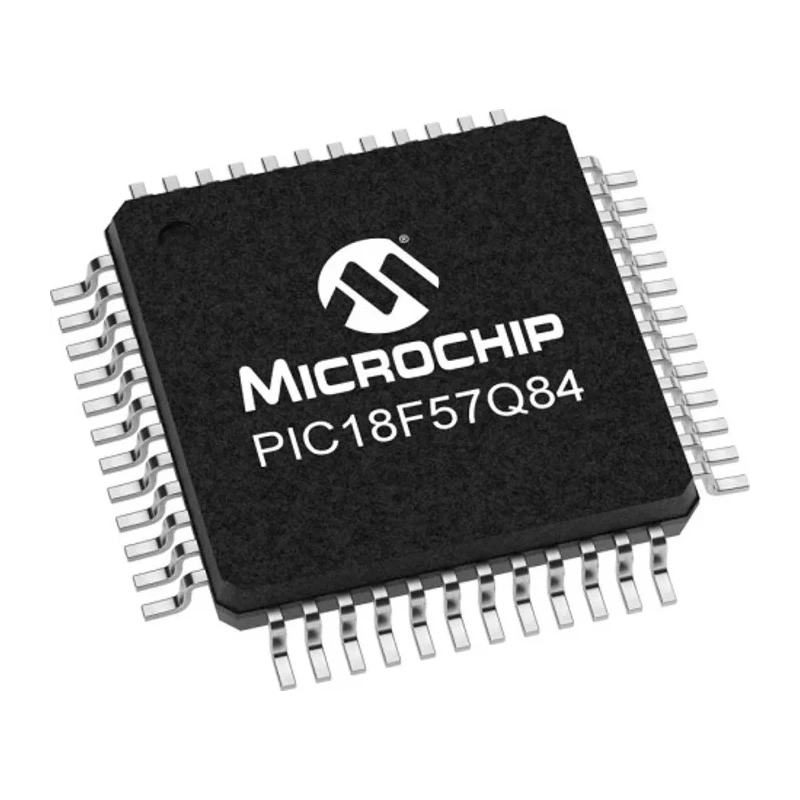

Microchip 8 bit PIC18F Microcontroller 64 MHz 128kB FLASH 48-Pin TQFP PIC18F57Q84-I/PT

Microchip PIC18F57Q84-I/PT is a high-performance, low-power 8 bit PIC microcontroller designed with advanced XLP technology. Operating at a maximum clock frequency of 64 MHz, it features a 48-pin TQFP surface mount package.

This microcontroller provides 128kB of FLASH program memory and 12.5kB of RAM, enabling complex embedded applications. It supports multiple communication interfaces, including I2C, SPI, and UART, making it suitable for intelligent wired and wireless communication protocols. The device includes 44 programmable I/O pins, enhancing connectivity and control.

The PIC18F57Q84-I/PT integrates 43 12-bit analog-to-digital converters (ADCs) and one 8-bit digital-to-analog converter (DAC), enabling precise signal acquisition and generation. Two analog comparators support real-time analog signal monitoring. Its six timers and vectored interrupt capabilities enable efficient time management and responsive control operations.

Designed for robust industrial and automotive applications, it operates reliably over a wide temperature range from -40°C to +85°C and supports supply voltages from 1.8V to 5.5V. The microcontroller incorporates advanced power-on reset and brown-out reset features to ensure system stability. The FLASH program memory is optimized for code efficiency and includes a 128-level hardware stack for nested subroutine calls.

This microcontroller is ideal for industrial automation, automotive control systems, sensor interface, communication devices, and embedded control applications requiring high-performance and low power consumption.

High-performance 48-pin TQFP package optimized for surface mounting. Powerful RISC architecture enabling a 62.5 ns instruction cycle. Supports I2C, SPI, and UART interfaces for versatile communication. Includes 12.5kB RAM and 44 programmable I/O pins for complex control tasks.

Incorporates 43 12-bit ADC channels and 1 8-bit DAC for precise analog signal processing. Wide operating voltage range from 1.8V to 5.5V for flexible power supply options. Operating temperature range from -40°C to 85°C supports harsh environments.

Equipped with six timers suitable for timing and pulse generation. Features two analog comparators and a robust interrupt system with vectored interrupts. Program memory implemented as FLASH with 128-level deep hardware stack for reliability.
