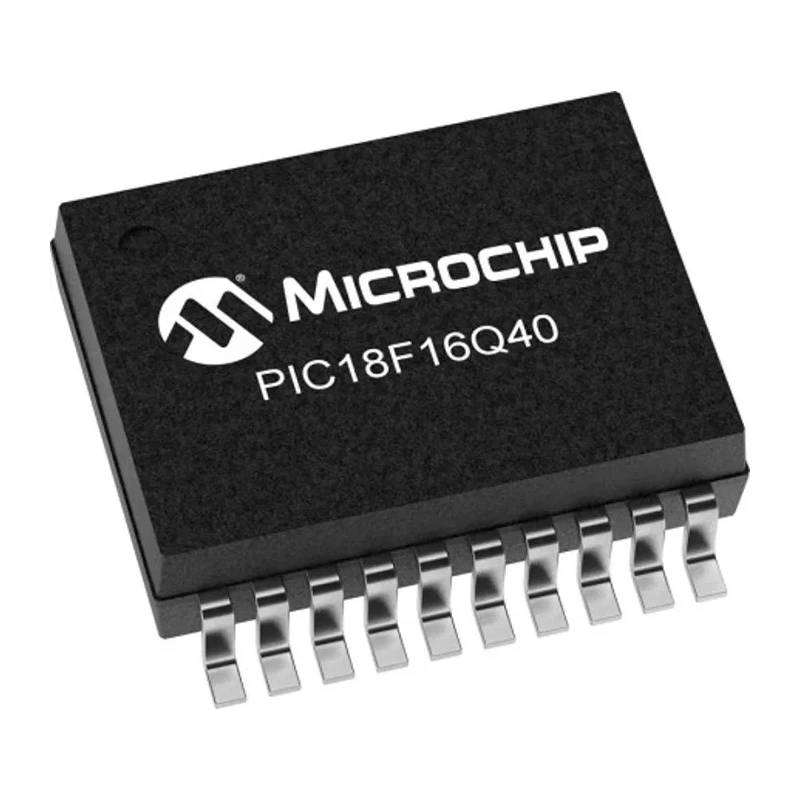

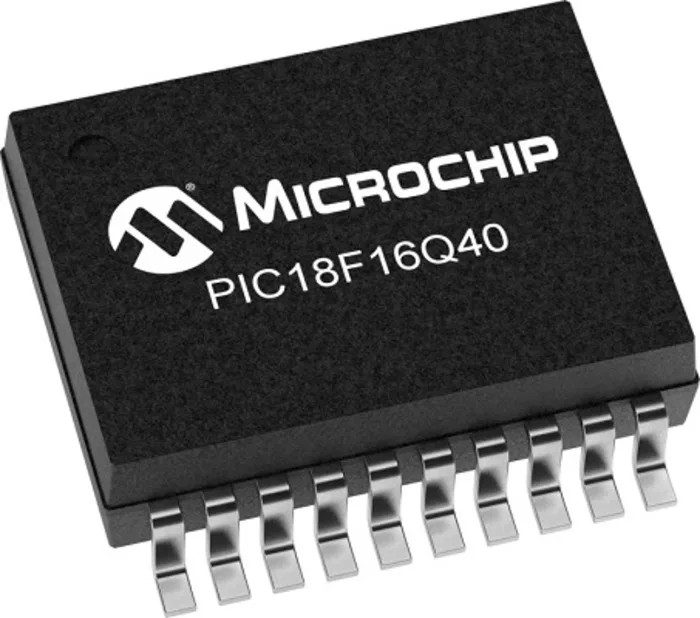

Microchip 8-bit PIC18F16Q40 Microcontroller, 8 bit PIC, 32kB FLASH, 64 MHz, 20-Pin SSOP PIC18F16Q40-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC18F16Q40-I/SS |
| Series | PIC18F16Q40 |
| Maximum Operating Temperature | 125°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Interface Type | I2C, SPI, UART |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 64MHz |
| Analogue Comparators | 2 |
| Number of Timers | 16 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 2 x 8 Bit |
Key Features
- This microcontroller supports I2C, SPI, and UART interface types.
- It includes 4kB RAM and 2 x 8-bit DACs for analog output.
- Designed for low-power applications with XLP technology.
- Operates over a wide temperature range from -40°C to 125°C.
- Has 16 timers and 2 analog comparators for real-time control tasks.
- Features 12-bit ADCs and Harvard architecture for efficient processing.
- Compatible with FLASH program memory and optimized for C compilers.
- Supports a supply voltage range from 1.8 V to 5.5 V.
Product Description
Microchip PIC18F16Q40-I/SS is a high-performance 8-bit microcontroller designed for real-time control and sensor applications. Featuring a 20-pin SSOP package, it operates at a maximum clock frequency of 64 MHz and offers 32kB of FLASH program memory along with 4kB of RAM. The device supports common serial interfaces including I2C, SPI, and UART, making it versatile for various embedded systems.
This microcontroller employs an optimized Harvard architecture and is compatible with C compiler tools, facilitating efficient firmware development. Its advanced features include 2 x 8-bit DACs, 2 analog comparators, 12-bit ADCs, and 16 timers, enabling precise analog and timing control for industrial and commercial applications.
With a supply voltage range of 1.8 V to 5.5 V and operational temperature range from -40°C to 125°C, the PIC18F16Q40-I/SS is suitable for harsh environments and low-power designs utilizing Microchip's XLP technology. The device also has a vectored interrupt system with selectable priority levels and a 128-level deep hardware stack for efficient interrupt handling.
Typical applications include industrial automation, sensor interfacing, embedded control systems, and consumer electronics. Its compact 20-pin SSOP form factor allows for space-saving PCB designs.
This microcontroller supports I2C, SPI, and UART interface types. It includes 4kB RAM and 2 x 8-bit DACs for analog output. Designed for low-power applications with XLP technology. Operates over a wide temperature range from -40°C to 125°C.
Has 16 timers and 2 analog comparators for real-time control tasks. Features 12-bit ADCs and Harvard architecture for efficient processing. Compatible with FLASH program memory and optimized for C compilers. Supports a supply voltage range from 1.8 V to 5.5 V.
Includes vectored interrupt capability with selectable high/low priority levels. Explore more Microchip Microcontrollers and electronic components on EnvMart for your embedded design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It supports a supply voltage range from 1.8 V to 5.5 V.
The PIC18F16Q40 supports I2C, SPI, and UART interface types.
It has a program memory size of 32 kB FLASH.
This model includes 4 kB of RAM.
The operating temperature range is from -40°C to 125°C.
It features 16 timers for various applications.
This microcontroller employs a Harvard architecture for efficient processing.
It includes 2 analog comparators for real-time control tasks.
The maximum operating temperature is 125°C.
It uses FLASH program memory, which is compatible with C compilers.
It complies with RoHS standards.
