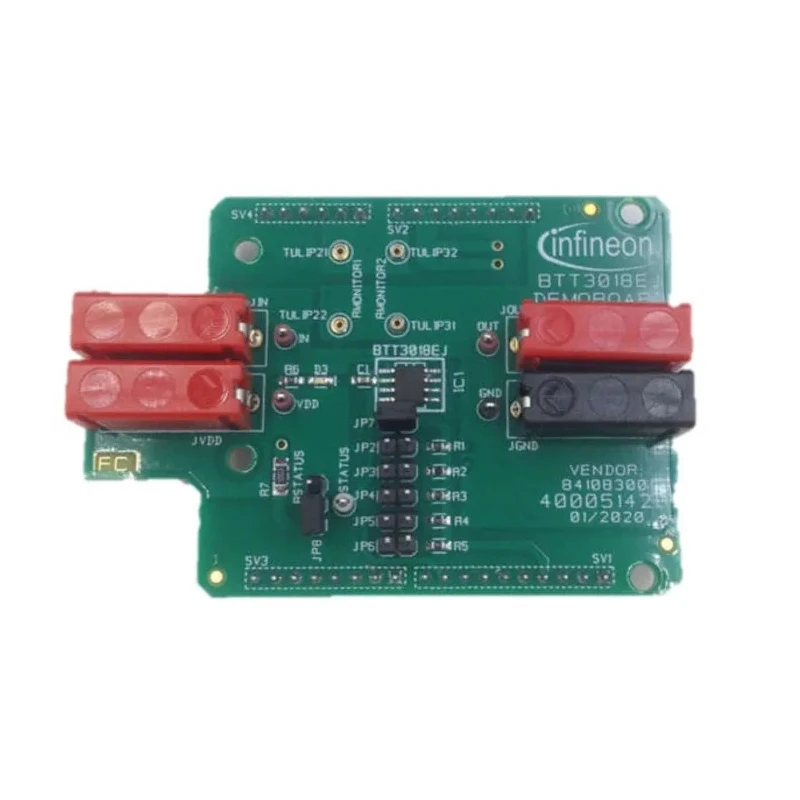

Infineon Arduino Compatible Board BTT3018EJ DEMOBOARD Evaluation Board with Infineon XMC1100 Processor BTT3018EJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BTT3018EJ |
| Kit Classification | Evaluation Board |
| Processor Part Number | Infineon XMC1100 |
| Revision | V1.0 |
| Arduino Board Name | Arduino UNO |
Key Features
- The board features one one-channel low-side switch of BTT3018EJ HITFET™+ 24V device.
- All device pins are directly accessible for customer measurements.
- Slew rate pin control allows precise PWM modulation.
- Includes diagnosis capability via STATUS pin for enhanced monitoring.
- Dynamic temperature protection with latch shutdown ensures reliable operation.
- Designed as an evaluation board compatible with Arduino UNO systems.
- Revision version V1.0 provides stable performance for development use.
- Ideal for industrial and educational applications needing low-side switching control.
Product Description
Infineon BTT3018EJ DEMOBOARD, an Arduino Compatible Board, utilizes the Infineon XMC1100 processor to provide a powerful evaluation platform for embedded system development. This evaluation board is equipped with a single one-channel low-side switch based on the BTT3018EJ HITFET™+ 24V device, allowing precise control and measurement across all device pins directly accessible to users.
The board supports slew rate pin control designed for effective PWM (Pulse Width Modulation) applications. It further enhances system reliability with a diagnostic STATUS pin enabling real-time monitoring and includes dynamic temperature protection with a latch shutdown mechanism to prevent device damage under thermal stress.
Engineered for seamless compatibility with Arduino UNO, this evaluation board is suitable for rapid prototyping, industrial automation, laboratory research, and STEM educational projects focusing on power electronics and embedded control. With revision V1.0, the hardware ensures consistent performance and usability.
No specific industry standards or approvals are associated with this board, making it a straightforward evaluation tool designed primarily for development and testing usage.
The compact footprint and user-accessible layout enable easy integration with existing setups, facilitating experimentation, diagnostics, and educational demonstrations in electronics and control engineering.
The board features one one-channel low-side switch of BTT3018EJ HITFET™+ 24V device. All device pins are directly accessible for customer measurements. Slew rate pin control allows precise PWM modulation. Includes diagnosis capability via STATUS pin for enhanced monitoring.
Dynamic temperature protection with latch shutdown ensures reliable operation. Designed as an evaluation board compatible with Arduino UNO systems. Revision version V1.0 provides stable performance for development use. Ideal for industrial and educational applications needing low-side switching control.
No formal standards or approvals attached to this board. Compact and user-friendly hardware platform for power switching demonstration. Discover more Development Tools and Arduino compatible boards at EnvMart to empower your next electronics project with reliability and flexible engineering capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board features a one-channel low-side switch based on the BTT3018EJ HITFET™+ 24V device, allowing for precise control and measurement in various applications.
It utilizes the Infineon XMC1100 processor, providing a robust platform for embedded system development.
Yes, it is designed for seamless compatibility with Arduino UNO systems, making it suitable for rapid prototyping and educational projects.
The board includes a STATUS pin for diagnosis capability, allowing for enhanced real-time monitoring of the system's performance.
The low-side switch is based on the BTT3018EJ HITFET™+ device, which operates at a maximum voltage of 24V.
It is ideal for industrial automation, laboratory research, and educational applications focusing on power electronics and embedded control.
The slew rate pin control allows for precise PWM modulation, enabling effective control in various applications.
It features dynamic temperature protection with a latch shutdown mechanism to prevent device damage under thermal stress.
The Infineon BTT3018EJ DEMOBOARD is manufactured in India.
No specific industry standards or approvals are associated with this evaluation board; it is designed primarily for development and testing purposes.
The compact footprint and user-accessible layout facilitate easy integration with existing setups, allowing for experimentation and diagnostics in electronics and control engineering.
