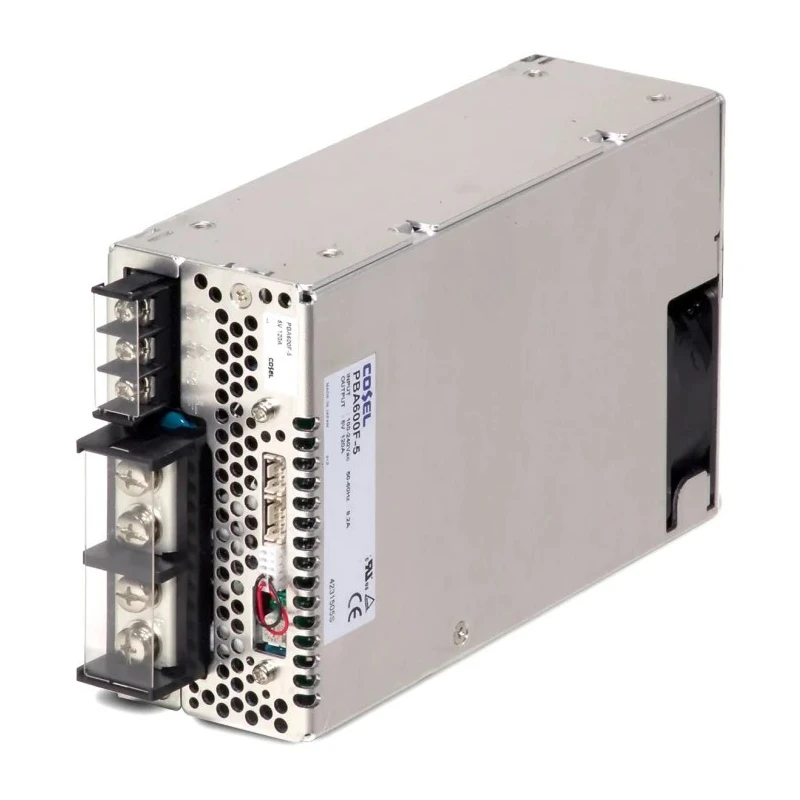

Cosel Switching Power Supply Chassis Mount 5V DC 600W 120A Efficiency 77% Model PBA600F-5

Cosel PBA600F-5 switching power supply is a high-performance chassis mount power supply designed to deliver stable 5V DC output with a power rating of 600W and an output current of 120A. This unit is part of Cosel's PBA series known for compact size and lightweight design, making it 35% to 65% smaller in volume compared to conventional power supplies offering similar wattage.

Operating efficiently with a 77% efficiency rating, this power supply accommodates input voltages ranging from 85 VAC to 264 VAC, providing a maximum DC input of 350V and minimum DC input voltages of 85 and 120V ensuring versatility in different power environments. It features overcurrent and overvoltage protection along with a harmonic attenuator to minimize electrical noise and enhance performance reliability.

The device is built to operate reliably within an ambient temperature range of -20°C to 71°C and is cooled either by convection or fan depending on the specific model. It measures 221mm in length, 61mm in width, and 120mm in depth, and weighs 1.6kg, making it suitable for installation in constrained spaces.

Certified to international standards including UL60950-1, C-UL (CSA60950-1), EN60950-1, and CE mark, this power supply complies with harmonic and conducted noise standards such as IEC61000-3-2 and FCC Part15 Class B. The PBA600F-5 is manufactured in Japan, ensuring high manufacturing quality and reliability.

This switching power supply is ideal for use in industrial and laboratory environments including automated machinery and semiconductor equipment applications where precise and reliable DC power is required. The chassis mounting type facilitates easy integration into control panels and machinery enclosures.

Maximum output voltage is 5V DC suitable for various electronic applications. Single output unit with 120A SMPS output current. Operates within temperature range of -20°C to 71°C. Dimensions are 221mm length, 61mm width, and 120mm depth.

Weighs 1.6kg with UL, RoHS, and CE certifications. Efficiency rated at 77% for optimized power conversion. Supports maximum input voltage up to 350V DC and minimum input voltage of 85 to 120V DC. Designed and manufactured in Japan ensuring high quality standards.

Includes safety features such as overcurrent and overvoltage protection and a harmonic attenuator. Applicable for automated machinery and semiconductor equipment use cases. Explore the wide range of Switching Power Supplies and electronic components at EnvMart for reliable industrial and electronic power solutions.
