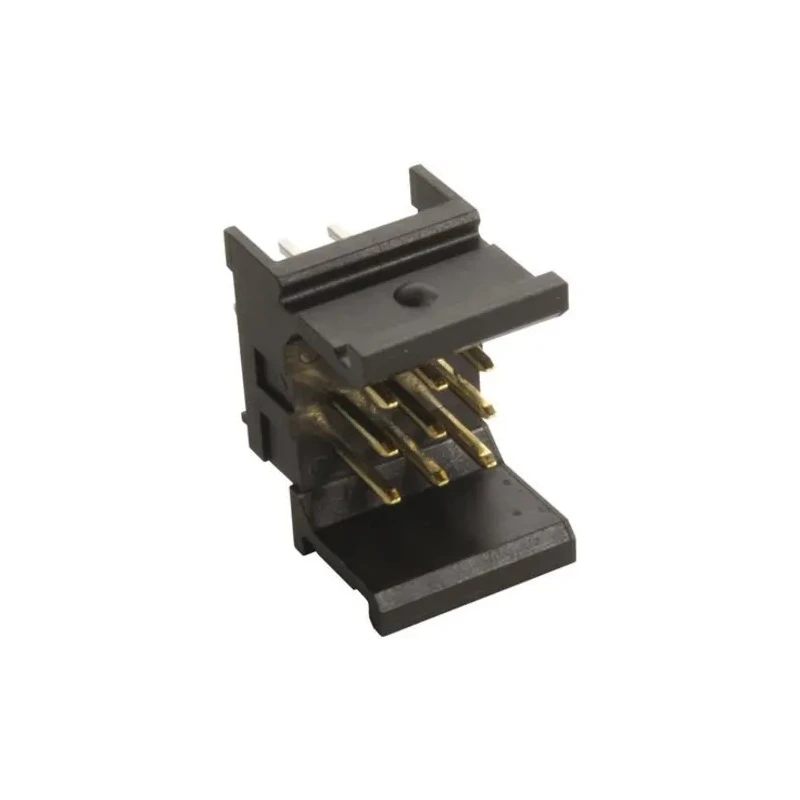

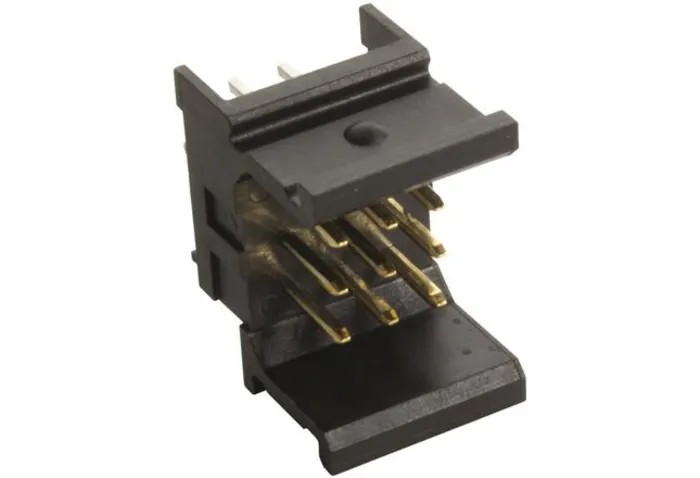

HARTING har-modular Series Straight Surface PCB Header 9 Contacts 2.54 mm Pitch 3 Row Shrouded 02539091101

HARTING 02539091101 har-modular Series Straight Surface PCB Header is a high-quality electronic connector designed for printed circuit board assembly requiring precision and reliability. Featuring a total of 9 male contacts arranged in 3 rows with 2.54 mm pitch spacing, this header allows stable electrical connections for compact PCB designs.

The housing is made from durable polyamide material, providing excellent mechanical strength and chemical resistance. The copper alloy contacts ensure low electrical resistance and long service life critical for industrial and commercial electronics.

Its straight orientation and surface mounting type enable easy installation on PCBs, suitable for automated wave soldering processes. This header supports a rated current of 2 A, making it apt for a wide range of signal and low power PCB connector needs.

The operating temperature range from -55°C up to 125°C allows use in diverse environmental conditions including industrial, automotive, and electronic manufacturing facilities. Moreover, the shrouded design provides added protection against accidental contact and mechanical damage during assembly and operation, enhancing connector lifespan and safety.

The product is manufactured in Romania, ensuring adherence to stringent European quality and manufacturing standards. Although the connector has no formal approvals listed, it is a trusted component widely used in electronic component assemblies and embedded systems.

This PCB header features a polyamide housing ensuring durability and chemical resistance. It uses copper alloy contacts for reliable electrical conduction. Designed for surface mount technology with straight orientation.

Operating temperature range is from -55°C to 125°C, suitable for harsh environments. Rated current per contact is 2 A, supporting common electronic applications. The header is shrouded for increased protection and secure mating.

Male contact gender design complies with standard PCB connector requirements. It conforms to no specific certifications but meets industrial quality standards. Manufactured in Romania, ensuring European production quality standards.

Ideal for industrial electronics, laboratory equipment, manufacturing assembly lines, telecommunications hardware, and automotive electronics, the HARTING har-modular series is a dependable choice for robust PCB connections.
