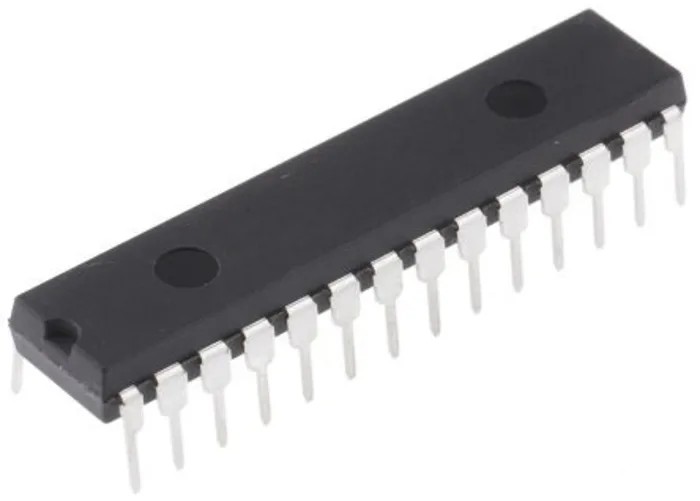

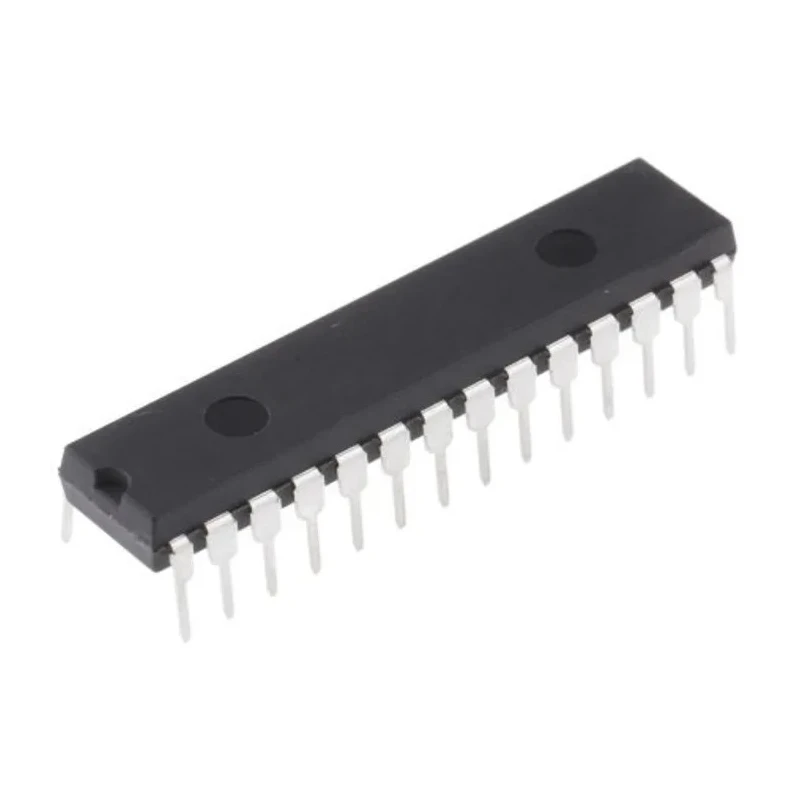

Microchip 8-bit PIC Microcontroller PIC16F15256 32 MHz 28kB FLASH 28-Pin SPDIP PIC16F15256
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Length | 1.4mm |
| Model | PIC16F15256 |
| Mount Type | Through Hole |
| Series | PIC16F15256 |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller features a PIC core with 8-bit data bus width.
- It includes 28kB of program memory and 2kB RAM for application requirements.
- Supports a wide voltage range from 1.8V to 5.5V and dissipates a maximum power of 800mW.
- Offers 25 programmable I/O pins with one timer and 17 channels of 10-bit ADCs.
- Designed for low-power applications with an operating temperature range of -40°C to 85°C.
- This device is housed in a 28-pin SPDIP package designed for through-hole mounting.
- Utilizes RISC instruction set architecture ensuring efficient processing.
- Comes with standard communication peripherals including MSSP (SPI/I2C) and multiple PWM modules.
Product Description
Microchip PIC16F15256 is a versatile 8-bit microcontroller designed for low-power and embedded applications. Operating at a clock frequency of 32 MHz, it incorporates 28kB of FLASH program memory and 2kB of RAM, providing sufficient capacity for a broad range of embedded firmware.
The 28-pin SPDIP package supports through-hole mounting, facilitating integration in conventional PCB layouts. The microcontroller features a PIC core along with a data bus width of 8 bits, ensuring efficient processing suitable for many industrial and commercial applications.
Designed for robust performance, it operates within a voltage range of 1.8V to 5.5V and has a maximum power dissipation of 800mW, making it energy efficient and suitable for battery-powered devices. The device is rated for operation in a temperature range from -40°C to 85°C, enabling its use in demanding environmental conditions.
The microcontroller includes 25 programmable input/output pins, one timer, and 17 channels of 10-bit ADCs for precise analog signal measurements. It supports advanced peripheral features such as MSSP for SPI and I2C communication and multiple PWM modules, enhancing functionality for motor control, signal generation, and communication tasks.
This microcontroller uses RISC architecture for streamlined instruction processing. Incorporates core independent peripherals and intelligent analog modules for versatile applications. Internal features include an internal temperature sensor and Memory Access Partition (MAP) for efficient memory management.
The package type SPDIP (Shrink Plastic Dual In-line Package) provides reliable connectivity and durability. Its design supports low-power modes, ideal for power-sensitive embedded systems. The device is suitable for industrial automation, consumer electronics, instrumentation, and automotive applications.
Microchip is known for robust semiconductor solutions, and the PIC16F15256 continues this legacy with advanced performance and low power consumption. This microcontroller is an excellent choice for designers seeking reliable and efficient embedded control solutions on a 28-pin footprint.
Explore EnvMart’s comprehensive range of Microcontrollers for your embedded system development needs, featuring cutting-edge technology and various package options tailored to industrial and consumer applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features 28kB of FLASH program memory, providing ample space for embedded firmware.
The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions.
This microcontroller has 25 programmable I/O pins for versatile input and output functionalities.
It is housed in a 28-pin SPDIP (Shrink Plastic Dual In-line Package) designed for through-hole mounting.
The maximum power dissipation is 800mW, which supports its low-power applications.
This microcontroller supports a wide voltage range from 1.8V to 5.5V.
It includes 17 channels of 10-bit ADCs for precise analog signal measurements.
It uses a RISC (Reduced Instruction Set Computer) instruction set architecture for efficient processing.
The microcontroller includes MSSP for SPI and I2C communication, along with multiple PWM modules for enhanced functionality.
This model has a RAM size of 2kB, which supports its application requirements.
It is suitable for industrial automation, consumer electronics, instrumentation, and automotive applications.
