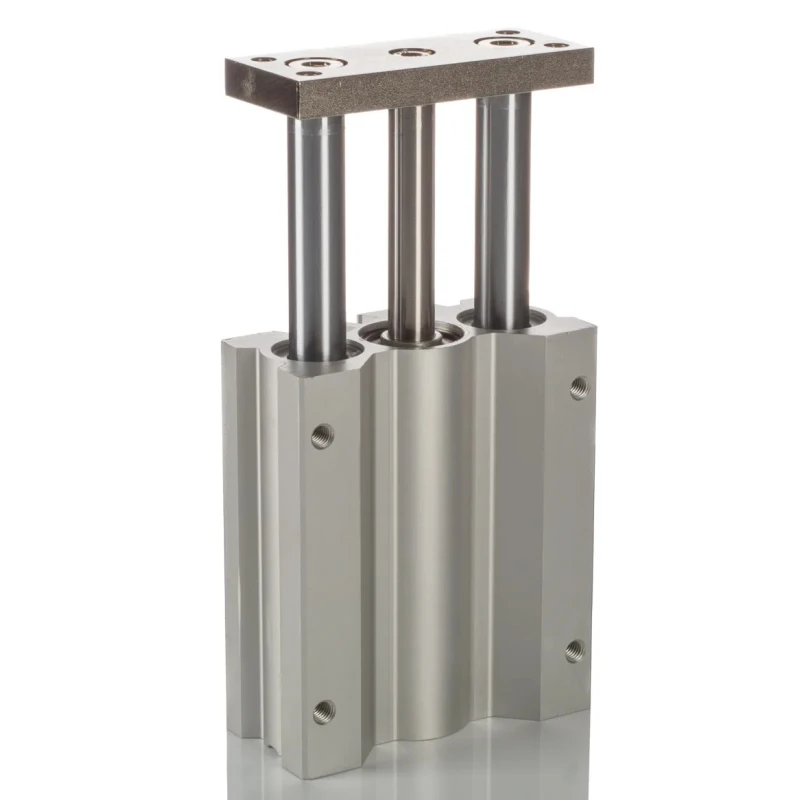

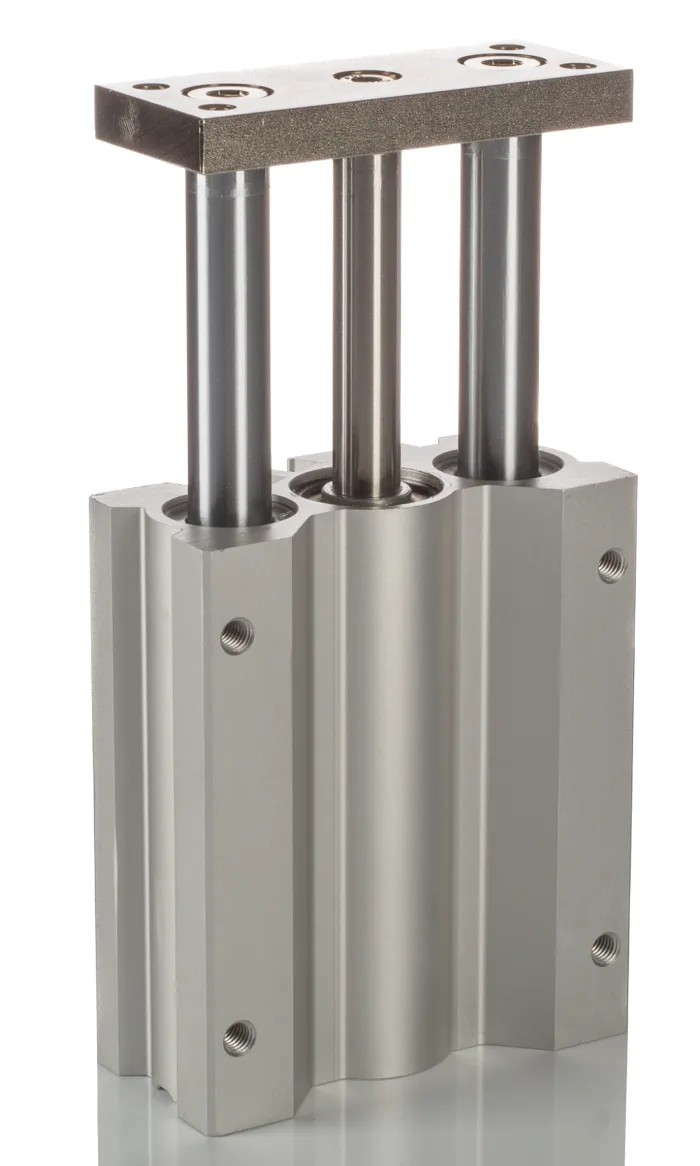

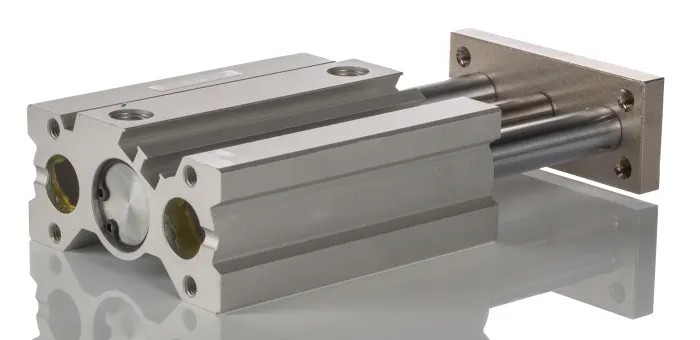

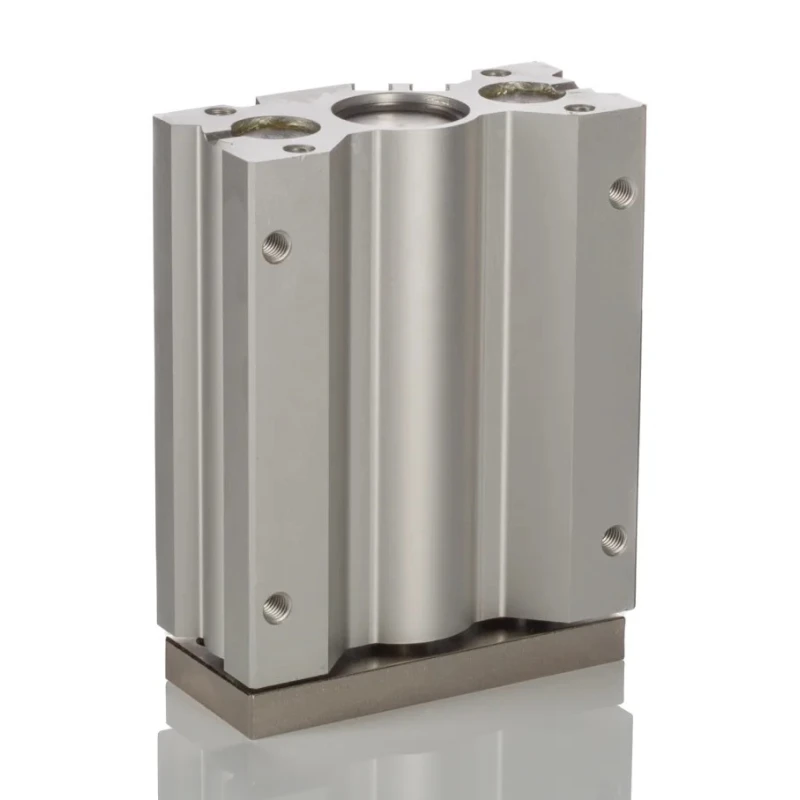

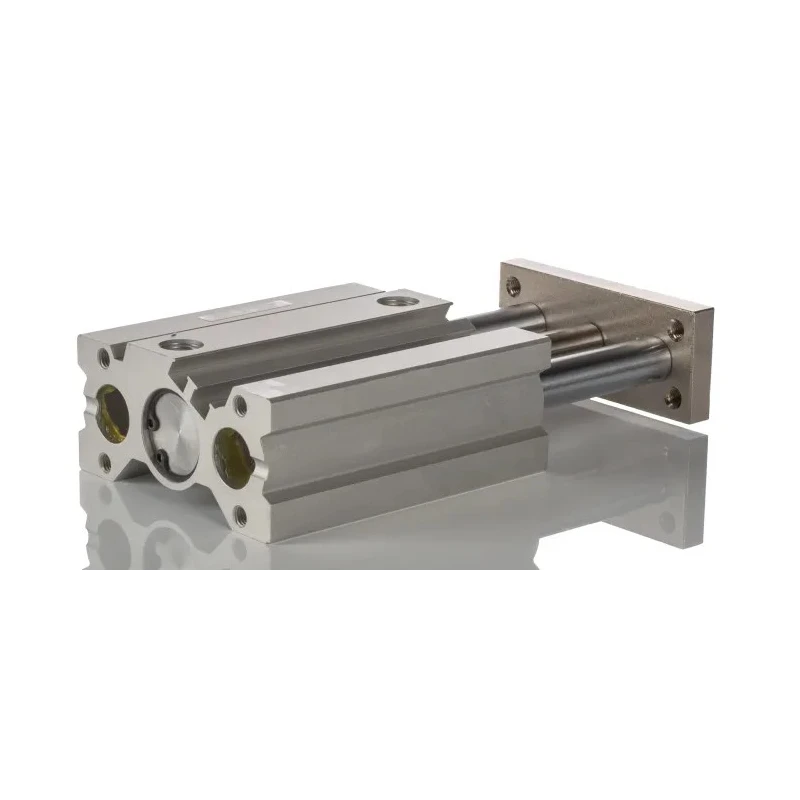

SMC Pneumatic Guided Cylinder 20mm Bore, MGQ Series, 50 mm Stroke, Double Acting, Direct Mount, MGQM20-50
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 1 Mpa |
| Height | 74mm |
| Length | 97mm |
| Model | MGQM20-50 |
| Gross Weight | 760g |
| Width | 36mm |
| Mount Type | Direct |
| Series | MGQ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 50mm |
| Bore Diameter | 20mm |
| Rod Type | Push-In Sleeve |
| Action Type | Double Acting |
| Cushioning Type | Rubber Cushioning at Both Ends |
| Guide Type | Slide Bearing, Ball Bearing |
| SMC Pneumatic Guided Cylinder - 20mm Bore, CXS Series, 50 mm Push-In ActingBrand | SMC |
Key Features
- Compact guide cylinder ideal for linear actuation under high loads.
- Double acting pneumatic cylinder with 1 MPa maximum operating pressure.
- Rubber cushioning at both ends ensures smooth operation.
- Slide bearing and ball bearing guide type for high non-rotational accuracy and side load tolerance.
- Push-in sleeve rod type with direct mounting for easy fixture attachment.
- Suitable for material handling and industrial automation applications.
- Operating temperature range from -10°C to 60°C for varied environments.
- Stroke length of 50mm for precise positioning tasks.
Product Description
SMC MGQM20-50 Pneumatic Guided Cylinder is a compact, double acting pneumatic actuator with a 20mm bore diameter and 50mm stroke length designed for precise linear motion under high loads. Featuring a combination of slide bearing and ball bearing guide types, this cylinder maintains exceptional non-rotational accuracy and provides high tolerance to side loading, making it ideal for demanding industrial automation and material handling applications.
The cylinder operates with a maximum pressure of 1 MPa and includes rubber cushioning at both ends to ensure smooth and quiet operation. The push-in sleeve rod type and direct mounting option simplify installation and fixture attachment. Operating temperature range from -10°C to 60°C allows use in a variety of controlled environments.

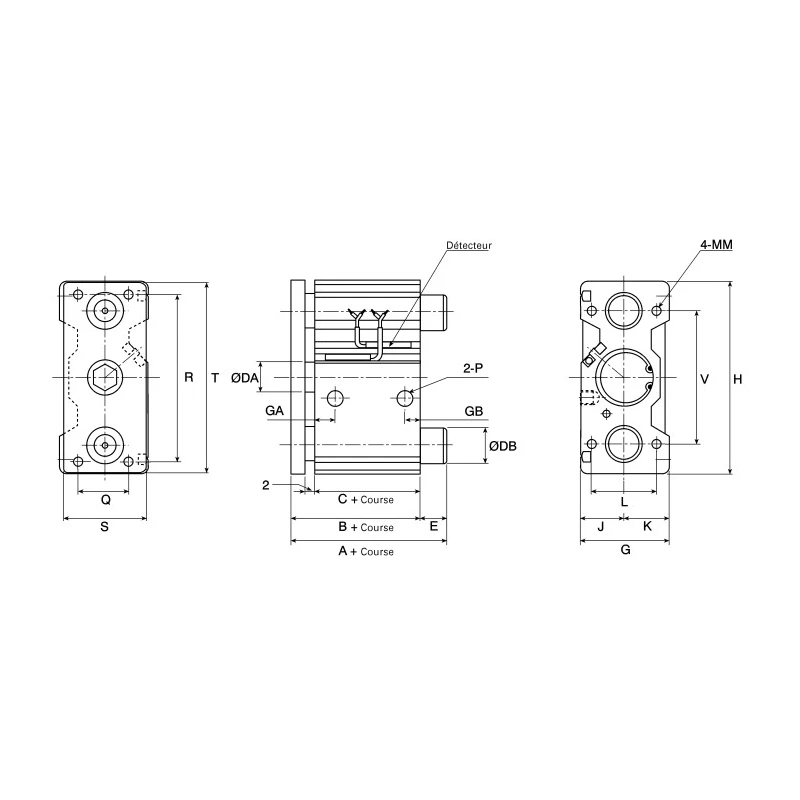

With compact dimensions of 36mm width, 74mm height, and 97mm length, this guided cylinder offers a robust yet space-saving solution. Its weight is approximately 760 grams, enabling easy handling and integration into complex pneumatic systems.
SMC's MGQM series pneumatic guided cylinders are known for their reliability and precision, supporting industrial, manufacturing, HVAC, and material handling sectors. This product supports magnetic sensing capabilities and is compatible with various switches and wiring options.
Compact design suitable for limited space installations. High load capacity and positioning accuracy with slide and ball bearing guides. Double acting for controlled forward and reverse motion. Rubber cushions prolong system lifespan by reducing impact shock.
Flexible mounting options optimize system design. Robust construction supports industrial use cases. Wide operating temperature range for diverse environments. Easy integration with standard pneumatic control components.
Lightweight for efficient automation assembly.
Choose the SMC MGQM20-50 Pneumatic Guided Cylinder for your next project requiring precise, durable, and compact guided pneumatic actuation. Explore EnvMart for more hydraulic and pneumatic tools from SMC and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the SMC Pneumatic Guided Cylinder MGQM20-50 is 1 MPa.
This model features a stroke length of 50 mm, allowing for precise positioning tasks.
The dimensions of this pneumatic cylinder are 36 mm in width, 74 mm in height, and 97 mm in length.
The bore diameter of the SMC MGQM20-50 is 20 mm.
This model includes rubber cushioning at both ends to ensure smooth and quiet operation.
The operating temperature range for the MGQM20-50 is from -10°C to 60°C.
This pneumatic cylinder operates as a double acting actuator, allowing controlled forward and reverse motion.
The cylinder features a combination of slide bearing and ball bearing guide types for high non-rotational accuracy and side load tolerance.
The weight of this model is approximately 760 grams, facilitating easy handling and integration.
The SMC MGQM20-50 has a direct mounting type, which simplifies installation and fixture attachment.
This pneumatic cylinder is suitable for material handling and industrial automation applications.
The MGQM20-50 utilizes a push-in sleeve rod type for efficient operation.
