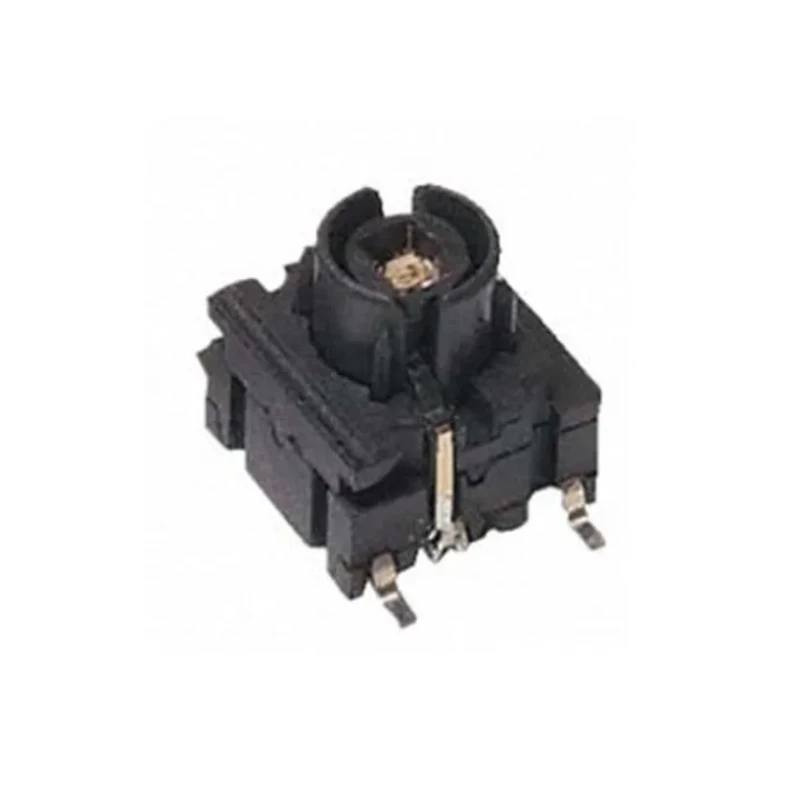

MEC Green Tactile Switch Push Button 10.4 mm SPST 50mA 24 V dc Surface Mount IP67 IP67



Category Tactile Switch Brand MEC Condition New

Specifications

Country of Origin	Denmark
Brand	MEC
Height	10.4mm
Length	14mm
Model	IP67
IP Rating	IP67
Width	10.3mm
Mount Type	Surface
Series	4F
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Green
Actuator Length	10.4mm
Contact DC Voltage	24V dc
Actuator Style	Push Button
Actuator Orientation	Right Angle
Switch Contact Current	50mA
Operating Force	2.5N
Mechanical Life	10000000Operations
MEC IP67 Yellow Switch, SPST, PCBBrand	MEC

Key Features

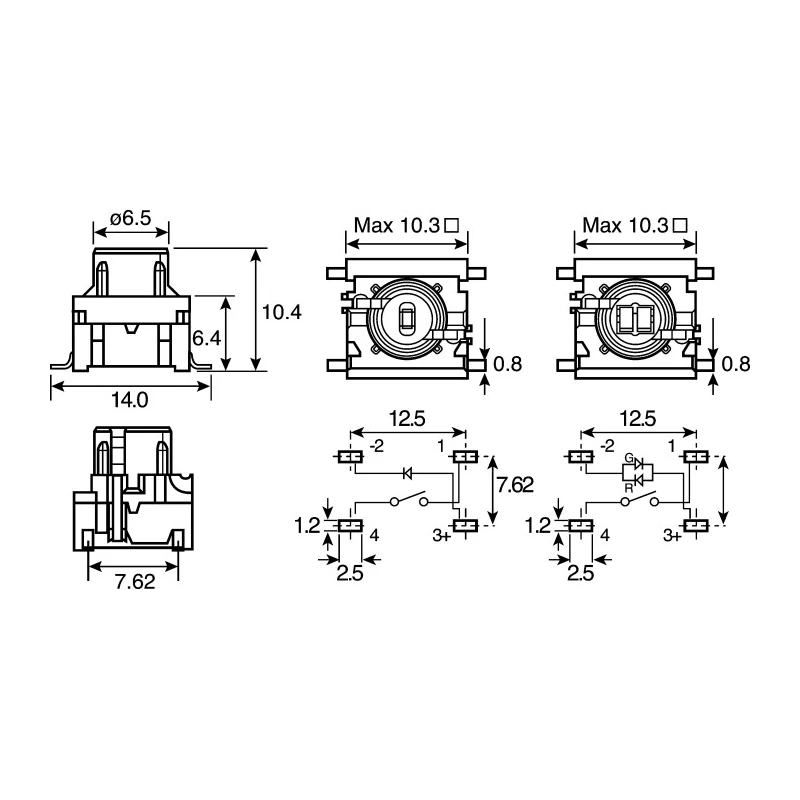

This tactile switch features a green actuator with a length and height of 10.4 mm, and width of 10.3 mm.
It operates momentarily with a right-angle push button style actuator.
The switch is sealed to IP67, providing dust-tight and immersion protection.
It supports a maximum operating temperature of 125°C and minimum of -40°C.
The switch contact current rating is 50mA with a mechanical life of 10 million operations.
Its operating force is 2.5N ensuring a tactile response.
The switch is illuminated and RoHS compliant.
Manufactured in Denmark, it belongs to the Multimec® illumec™ 4F series with integrated LEDs.

Product Description

MEC IP67 Green Tactile Switch 4FSH922 is a high-quality surface mount push button switch designed for precise momentary operation with SPST contact configuration. Rated for 50mA at 24 V dc, this switch features a green actuator measuring 10.4 mm in length and height, with a 10.3 mm width, providing a compact footprint for various electronic assemblies.

The push button actuator is oriented at a right angle and offers an operating force of 2.5N, delivering a comfortable and reliable tactile response. Sealed to an IP67 rating, this switch ensures robust protection against dust ingress and temporary immersion, making it suitable for harsh environments.

Designed to operate between -40°C and 125°C, the switch supports a remarkable mechanical life of 10 million operations, confirming its durability for industrial use. The integrated LED illumination adds visibility, enhancing user interaction and status indication capabilities.

Compliance with RoHS standards guarantees environmentally responsible manufacturing. Originating from Denmark, this tactile switch is part of the Multimec® illumec™ 4F series, known for its enhanced luminous intensity and sealed design.

This switch is extensively used in electrical systems, industrial automation controls, and various electronic applications requiring sealed, reliable, and user-friendly push button switches.

This tactile switch features a green actuator with a length and height of 10.4 mm, and width of 10.3 mm. It operates momentarily with a right-angle push button style actuator. The switch is sealed to IP67, providing dust-tight and immersion protection.

It supports a maximum operating temperature of 125°C and minimum of -40°C. The switch contact current rating is 50mA with a mechanical life of 10 million operations. Its operating force is 2.5N ensuring a tactile response.

The switch is illuminated and RoHS compliant. Manufactured in Denmark, it belongs to the Multimec® illumec™ 4F series with integrated LEDs. Ideal for electrical, automation, and industrial electronics applications requiring reliable, sealed push button controls.
