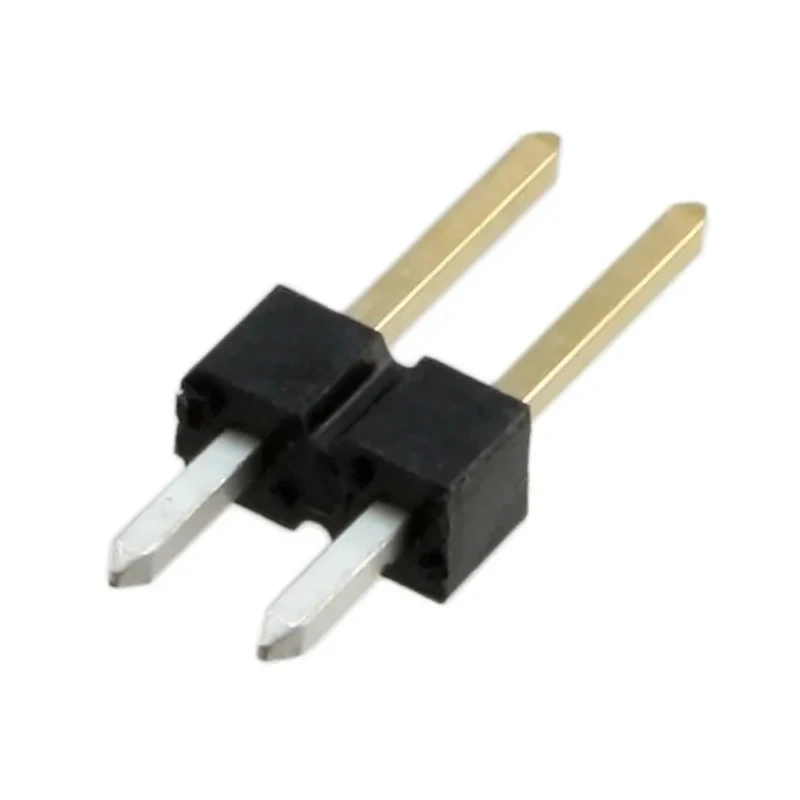

Amphenol Communications Solutions Bergstik Series Vertical Through Hole Pin Header 2 Contact 2.54 mm Pitch 1 77311-818-02LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Current | 3A |
| Model | 77311-818-02LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CHINA RoHS, EU RoHS, REACH/SvHC |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 5.84mm |
Key Features
- Supports a maximum current rating of 3A per contact.
- Constructed with thermoplastic housing for durability.
- Phosphor bronze contact material provides reliable conductivity.
- Gold plating on contacts ensures corrosion resistance and extended life.
- Designed with vertical orientation and unshrouded contacts.
- Through hole mount type suitable for PCB soldering applications.
- Operating temperature range from -65°C to 125°C for versatile environments.
- Supports voltage up to 1500V for demanding electrical applications.
Product Description
Amphenol Communications Solutions 77311-818-02LF Bergstik Series vertical through hole pin header features 2 contacts with a 2.54 mm pitch and single row configuration. This connector is designed for board-to-board interconnect applications requiring high reliability and flexibility in electronic assemblies.
The header housing is made of durable thermoplastic material, ensuring resistance to mechanical and environmental stress. Contacts are constructed from phosphor bronze and plated with gold for enhanced conductivity and corrosion resistance, allowing consistent electrical performance over time. The termination type is solder, suited for PCB assembly via through-hole mounting.
Rated for a maximum current of 3A per contact and withstands voltages up to 1500V, making it suitable for a variety of electronic device requirements. The product supports operating temperature ranges from -65°C up to 125°C, facilitating use in both industrial and commercial electronic equipment.
Its vertical orientation and unshrouded design allow for ease of mating with complementary connectors. The header supports up to 100 mating cycles, ensuring durability in applications where connectors are frequently engaged and disengaged.
Compliant with CHINA RoHS, EU RoHS, and REACH/SvHC directives for environmental safety and regulatory compliance. Originating from France, this product serves diverse industries including communications, computing, and industrial electronics.
Supports a maximum current rating of 3A per contact. Durable thermoplastic housing for long-lasting use. Phosphor bronze contacts with gold plating ensure reliable conductivity. Vertical, unshrouded through-hole mount for easy PCB integration.
Temperature range from -65°C to 125°C for versatile applications. Voltage rating of 1500V suitable for robust electrical performance. High mating cycle lifespan up to 100 cycles for frequent use. Environmentally compliant with CHINA RoHS, EU RoHS, and REACH/SvHC.
Manufactured in France with high quality standards.
This Bergstik Series pin header caters to industrial electronics manufacturers, board assemblers, and design engineers seeking high-performance board-to-board connectors. Explore similar PCB Headers and related products on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3A per contact.
It supports a voltage rating of up to 1500V, making it suitable for demanding electrical applications.
The contacts are made from phosphor bronze and are plated with gold for enhanced conductivity and corrosion resistance.
The operating temperature range is from -65°C to 125°C, allowing for versatile applications in various environments.
It features a through hole mount type, which is suitable for PCB soldering applications.
The pitch size is 2.54 mm, which is standard for many electronic applications.
This model has 2 contacts in a single row configuration.
The tail pin length is 2.9 mm, which is designed for effective soldering onto PCBs.
It is compliant with CHINA RoHS, EU RoHS, and REACH/SvHC directives for environmental safety.
The housing is constructed from durable thermoplastic material, ensuring resistance to mechanical and environmental stress.
The mating pin length is 5.84 mm, facilitating reliable connections with complementary connectors.
It supports up to 100 mating cycles, ensuring durability in applications where connectors are frequently engaged and disengaged.
